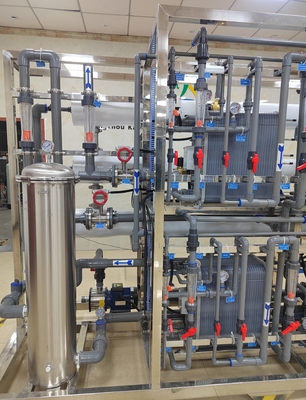

240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kai Yuan
Certification: CE, ISO,SONCAP, ect.
Model Number: KYRO-1000 to 50000
Minimum Order Quantity: 1 SET
Price: USD/`10000-78000/SET
Packaging Details: Wooden and carton ect.
Delivery Time: 30 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram.Cash
Supply Ability: 20sets/month
Detail Information
Material: FRP(Fiberglass) With U-PVC And SUS-316 Color: As Photos Showed Or Customized
Desalination Rate: No Less Than 97% Function: Remove TDS/TSS All Kinds Of Impurities
Capacities: From 500lph To 50000lph Recovery Rate: About 65%
Membranes Brand: USA DUPONT/China VONTRON/Japanese Toray Pumps: China CNP/ European Brands
Motor: CNP Or SIEMENS Ect. Control Panel: PC Or PLC
Frequency Inverter: Mitsubishi/EASY Feed Water: Underground Or River Ect.
Warranty: 1 Year After Service: Online Support And Spare Parts
Customized: Can Do Client's Brand Logo And Details
High Light:

RO Ultrapure Water System

,

240m3/D Ultrapure Water System


Product Description

Direct Factory 240m3/D Reverse Osmosis RO with EDI Machine for Subcritical High Pressure Boiler Factory Ultra Pure Water

1. Boiler Water Requirements, RO and EDI Technology Description
a). Boiler Water Requirements:Low pressure boiler factory will need soft general city water, Middle pressure factory will need pure water, which will need one stage Ro. But the high pressure factory will need ultra pure water, which will need one or 2 stages Ro with EDI.
b). Ro Technology: Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub-micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterial in the feed water, thus making pure water with conductivity less than 1us/cm.
c). EDI Technology:also called electric desalination is a new ultra pure water technology which gradually developed in the 20th century, which combines electric dialysis technology and ions exchange technology.
It is using the selectivity penerate function of anion and cation membrane and exchange function of ions exchange resin, under direct current electric field to make ion directed migration.Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionized will regeneration, and it can produce ultra pure with conductivity less than 0.2 microsiemens/cm water continuously by taking the Ro treated water with conductivity less than 10us/cm as source water.

2.How to get the suitable Ro system?
Please send the following details to this supplier.
1.Your source water details(city water or well water,river/lake water....?). If well/lake/river water, do you have water analysis report for it? better to send water TDS/conductivity?
2.What's the capacity for the RO system you need? (we have experience from 500lph to 180000lph)

3.13.5M3/H(240m3/d) reverse osmosis with EDI system specification and photos.

 Item   Specification
 1.Electricity Supply 220v-450v, 50hz/60hz,3 phases Total power:40KW-----Can be customized
 2.Membranes Brand  USA DUPONT, CHINA VONTRON, JAPANESE TORAY
 3.Pump Brand  CNP or European brands
 4.Motor Brand  CNP or SIEMENS
 5.Control  PC or SIEMENS PLC program control
 6.Desalination rate  More than 97%
 7.Recovery rate  at less 65%
 8.Material  FRP(Fiberglass) with U-PVC, Stainless steel
9.Customized Logo Can do client's our brand logo on the machine panel

The whole system process: Raw water tank(buyer offer)-Raw water pump-sand filter-carbon filter-water softener(resin filter)-micro filter-high pressure pump-Ro system-EDI system
240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 0

240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 1
240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 2

Machine Advantagee:
1).System can produce water continuously, PLC program controlled, Simple in installation and operation
2). RO system be chosen the import USA DOW membrane.
3). Tank level control, automatic stop when the raw water tank without water or pure water tank is full
4). RO system flushes RO membranes when it starts to work so that membrane fouling is reduced.
5).CNP high pressure pumps or Denmark Grundofos high pressure pumps are adopted.
6). Product water quality is continuously monitored by conductivity meter.



Consumbles Replacement Time:
1.Quartz sand/actiavted carbon should be replaced every about 15 month
2.PP filter cartridges should be replaced every about 1 to 3 months

3.Ro membranes should be replaced about every 1.2 to 1.5 years


4.More Small Reverse Osmosis System with Full Stainless Steel Material
Item Specification
1.Electricity Supply 220v-450v, 50hz/60hz,3 phases Total power:2.95KW-----Can be customized
2.Membranes Brand USA DUPONT, CHINA VONTRON, JAPANESE TORAY
3.Pump Brand CNP or European brands
4.Motor Brand CNP or SIEMENS
5.Control

PC or SIEMENS PLC program control

6.Desalination rate More than 97%
7.Recovery rate at less 65%
8.Material Stainless steel SUS-304/316

The whole system process: Raw water tank(buyer offer)-Raw water pump-sand filter-carbon filter-water softener(resin filter)-micro filter-high pressure pump-Ro system-EDI system
240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 3


















We can do engraving cursor for our client's brand logo on machines

240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 4

240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 5



5.Our Installation Experience for our clients
240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 6

6.Our Certificates--CE, ISO ECT.
240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 7
7.Our Exhibition--In Shanghai, Canton,AUE
240m3/D RO Ultrapure Water System With EDI Machine For Subcritical High Pressure Boiler Ultra Pure Water 8

8.Why Choose Kai Yuan Water?
1.We have the strict machine test for every machine before shipping, to ensure every machine operate smoothly.

2.We have the most careful package for every machine with both film and wooden case to ensure every machine will be not destroyed during shipping.
3.We have long-time cooperative shipping company with the best shippping price and service. For some country, the shipping country can help custom clearance.
4.Working in water treatment since 2002, we have lots of experience of customerized product for clients(professional water treatment knowledge), exporting and installating abroad.
5.Our company got many CE,ISO,SGS certificates for the high quality product and the mature technology for reverse osmosis, so we can help our customers to change the water they have now to the water they want.
6.Serving so mang customers from all over the world and we treat every customers as our good friend, we will invite our customer to the factory for visiting.Our factory is open to every one who wants to buy/know about water treatment plant.

7.Our machine price is set based on the sufficient market survey and we will have the most competitive price for our clients because we have long time coorperative material suppliers, which will offer the best quality and price material for us.
