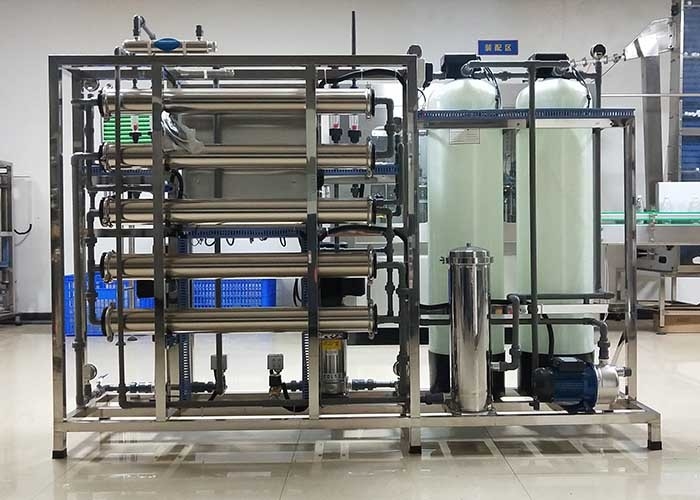

Cosmetic Factory Ultrapure Water System 500LPH Reverse Osmosis Purification Drinking Water Filter

Two stage RO system

This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

If raw water conductivity is less than 300uS/cm, first stage output is less than 10uS/cm, two stage output is 2uS/cm

Parameter

Process

Raw water→pure water tank(buyer supply)→Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Security filter → 1st stage high pressure pump →1st stage RO system→2nd stage high pressure pump→2nd stage RO system→UV sterilizer→pure water tank(buyer supply)→output supply point

Optional Components
