Place of Origin: | Guangzhou, China |
---|---|
Brand Name: | Kaiyuan |
Certification: | ISO9001, CE, SGS |
Model Number: | KYRO-500LPH |
Minimum Order Quantity: | >= 1sets |
Price: | negotiation |
Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
Delivery Time: | 1-7working days(depand on raw materials stocking) |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | >300sets/month |
RO Membrane: | DOW/ Vontron | Production Capacity: | 500liters Per Hour |
---|---|---|---|
Recovery Rate: | 50%-75% | Electrical Power: | 220/380V 50/60Hz |
Tank Material: | FRP/ Stainless Steel | Control Valve: | Automatic/ Manual |
Pipe Fitting: | SUS304/ U-PVC | Warranty: | 1 Year |
Size: | 2440*650*1750MM | Weight: | 550KG |
Feed Water TDS: | <2000mg/L | Desalination Rate: | >=97% |
High Light: | Double Stage RO Water Treatment Plant,500LPH RO Water Treatment Plant,FRP RO Water Treatment Plant |

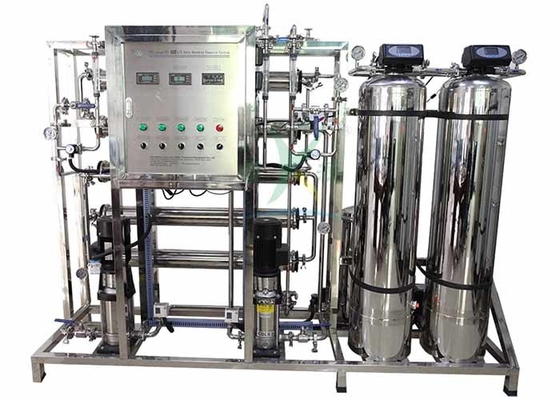

500LPH RO Systems Double Stage Reverse Osmosis Water Treatment Plant For Pharmaceutical /Hospital Dialysis/ Laboratory
1.Material:SUS304,SUS316L;Q235;
2.Max design presure:100Psi;
3.Surface polishing treatment or painting or sand blasting.
The water treatment facilities contains multi-medium filter, active carbon filter, sodium-ion exchanger, precision filter, ozone generator, hollow fibre filter, RO system, etc, This system can be changed according to the customers request use for Mineral water production line,Purified water production line ,juice production line , carbonated beverage production line etc. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
Ultra-pure water treatment removes salts from the water in a deep layer to increase the purity of the water.
The treatment system uses a booster pump, a UV sterilizer, a microporous filter, an EDI device, a pure water tank, a pure water pump, a polishing mixed bed, and a terminal filter.
The EDI device is a mature technology that replaces the mixed ion exchange bed after the application of the reverse osmosis system, and has stable water production quality, low operating cost, and convenient operation and management.
Small footprint and no harmful waste water discharge.The development direction of ultrapure water preparation technology has been adopted by major water treatment engineering companies all over the world.
Especially in the cosmetic, demodialysis Laboratory pharmaceutical, semiconductor, power and optoelectronics industries have been widely used.
2.Product Details
kyro-500lph Stainless Steel two stage ultrapure water equipment
1. Capacity: 500L/H
2. Rated power: 1.5KW/H
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
6. Conductivity of raw water: ≤400μs
7. Conductivity of pure water: ≤10μs
3. Features
◊ This system occupy little space, easy to operate, wide application field. |
◊ High operation automation degree. It is unattended. |
◊ Automatic flushing of reverse osmosis film by IC microcomputer controller. Online display of raw water |
and pure water electric conductivity. |
◊ Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed. |
◊ Finished water under good electric conductivity, one stage≤10μs/cm, two stage around 2-3μs/cm, |
EDI ≤0.5μs/cm (base on raw water ≤300μs/cm). |
◊ Imported parts account for over 90%. |
4. Application
6. Photo Show
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
