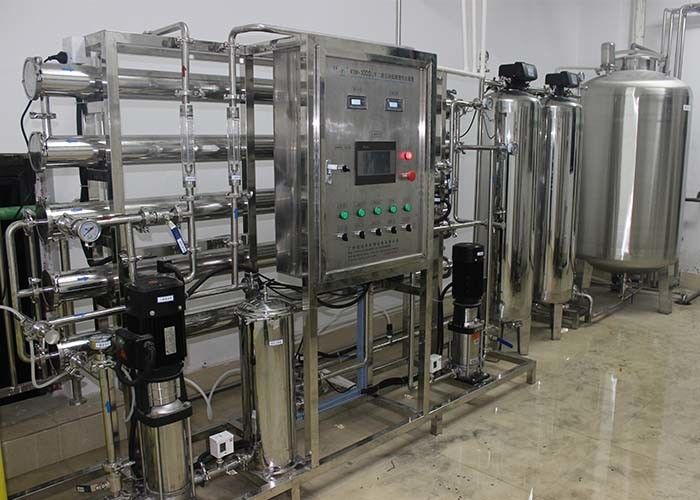

Stainless Steel Two Stage Reverse Osmosis System 1000LPH With Storage Tank

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Two Stage Reverse Osmosis System 1000LPH Electrical Power: 220/380V; 50/60Hz; 1ph/3ph
Tank Material: Stainless Steel Pipe Fitting: SUS304
Recovery Rate: ≥50% RO Membrane: USA FILMTEC DOW(DuPont) LCLE-4040 Membrane
Pump: CNP, Grundfos Optional Feed Water TDS: <2000mg/L
Pure Water TDS: <5mg/L Desalination Rate: ≥97%
High Light:

Stainless Steel Two Stage Reverse Osmosis System

,

1000LPH Reverse Osmosis System

,

Reverse Osmosis System 1000LPH


Product Description

High Quality Stainless Steel Two Stage Reverse Osmosis System 1000LPH With Storage Tank Water Purifying For Drinking



Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity <10 us/cm. Dense water also won’t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.



The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity< 2 us/cm.


Parameters:
2000LPH=2TPH RO EDI Water Purifier:
* Application Scope: TDS≤2000mg/L(design as per your raw water condition)
* Output Water Quality: TDS≤5mg/L.
* Capacity: 2m3/hour
* Meet the "World Health Organization (WHO) Standard"
* Recovery Rate: 50%~80%
* Desalination rate:97%-99%
* Adapted Seawater Temperature: 5.0~39°C
* Water desalination plants of different capacity ranges from 1T/D to 10000T/D

--Operation pressure: 4.5 ~ 6.0 Mpa, desalination rate: 97~ 99% --Highly automation, stable operation, low fault rate and low operating cost --Apply to electronic, chemical, electric power, pharmaceutical and other industries of water preparation


Consumables
There are several kinds of consumables you need to replace regularly. (for 1000LPH)
a. Quartz sand: replaced about every 15 months. 50kg/bag,200kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 75kg/set
c. PP Filter cartridge: replaced about every 1 month. 5pcs/set
d. Ro membrane: replaced about every 2 year. 10pcs/set
We suggest you buy 1- 2 years of PP filter cartridges together with machine.
Because these PP filter cartridges need to replace every month.







Some parts function for your reference as below^^:

Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

Ozone generator: for killing bacterial in water, be safe for drinking.


Stainless Steel Two Stage Reverse Osmosis System 1000LPH With Storage Tank 0Stainless Steel Two Stage Reverse Osmosis System 1000LPH With Storage Tank 1
Stainless Steel Two Stage Reverse Osmosis System 1000LPH With Storage Tank 2
Stainless Steel Two Stage Reverse Osmosis System 1000LPH With Storage Tank 3

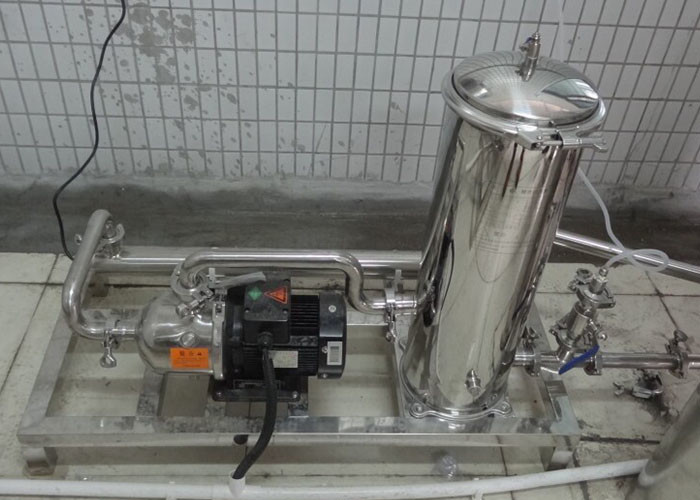

1. storage tank 2.ozone generator 3.precision filter 4.air filter



How to plaec order?

Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ Tell: +86 13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per houror)
What's the pure water used for( drinking, bottle water or industrial use…)
