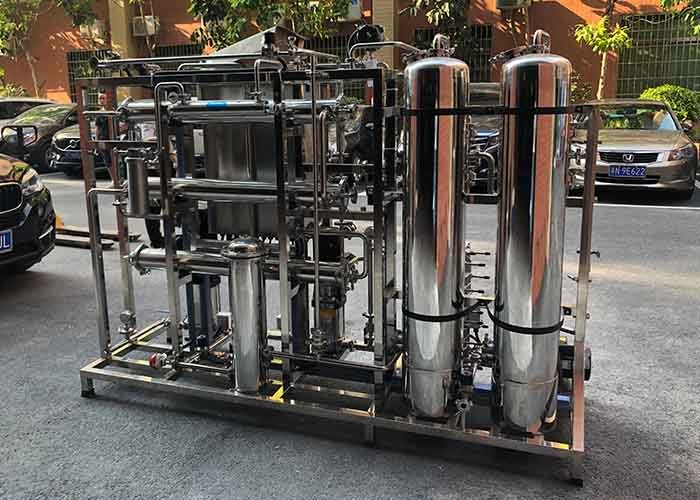

250 LPH Heat Disinfection Ultrapure RO EDI System For Medical

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Items: 250LPH Heat Disinfection Machine Ultrapure RO EDI System Production Capacity: 250liters Per Hour
Recovery Rate: 50%-75% Electrical Power: 220/380V 50/60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
Size: 1550*620*1670MM Weight: 200KG
Feed Water TDS: <2000mg/L Desalination Rate: >=97%
High Light:

Ultrapure RO EDI System




250LPH Heat Disinfection Machine

Product Description

SUS-316 250LPH Heat Disinfection Machine Hospital Ultrapure Water System RO EDI System for Medical Manufacturer


RO EDI water treatment system is developed a membrane separation technology, which mainly use the semipermeable membrane permeation principle, to give it a certain way by applying a pressure on the natural infiltration direction against the force of the water in the concentrated solution dilute the solution to penetrate this way is called reverse osmosis. By the components of the device is reverse osmosis reverse osmosis unit.


EDI details

China brand and Europe/USA brand for optional.

EDI, also called electric desalination is a new ultra pure water technology which gradually developed in the 20th century, which combines electric dialysis technology and ions exchange technology.

It is using the selectivity penerate function of anion and cation membrane and exchange function of ions exchange resin, under direct current electric field to make ion directed migration.

Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionized will regeneration, and it can produce ultra pure water continuously.

250 LPH Heat Disinfection Ultrapure RO EDI System For Medical 0


This system occupy little space, easy to operate, wide application range.
Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
Finished water under good electric conductivity, 1st stage ≤10μs/cm, 2nd stage around 2-3μs/cm, EDI≤0.2μS/cm(based on raw water≤300μs/cm).


Processing: Raw water tank(user supply)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1st stage high pressure pump→1st stage ro system→2nd stage high pressure pump→2nd stage ro system→pure water tank(user supply)+UV sterilizer+precision filter+ water supply point

250 LPH Heat Disinfection Ultrapure RO EDI System For Medical 1

Main parts function:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Activated Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

250 LPH Heat Disinfection Ultrapure RO EDI System For Medical 2

250 LPH Heat Disinfection Ultrapure RO EDI System For Medical 3

250 LPH Heat Disinfection Ultrapure RO EDI System For Medical 4


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)


Tag: ultrapure water equipmentpure and clear water filter system, ultra pure water filter
