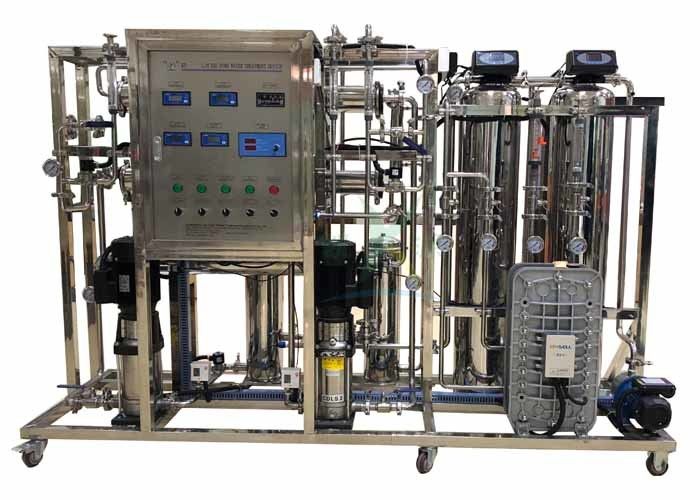

0.25T EDI Automatic RO Water Treatment System For Medicine Industry

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Treatment System Production Capacity: 0.25T
Recovery Rate: 50% - 75% Electrical Power: 380V 50Hz 3Phase (Customize Available)
Tank Material: FRP / Stainless Steel / Carbon Steel Control Valve: Automatic
Application: Medicine Industry Operating Temperature: 5℃ - 39℃
High Light:

reverse osmosis water filter system


ro reverse osmosis water filter

Product Description

0.25T EDI Automatic RO Water Treatment System For Medicine Industry
RO Water Treatment System summarize:
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.
The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.
RO Water Treatment System parameters:

1. Pure water output: 250L/hour; (actual water output is higher than standard design value)
2. Inlet water source: municipal tap water or ground water etc...
3. Outlet water quality: conductivity is less than 3us / cm(TDS is <2PPM), desanilation rate is 97%
4. Outlet quality meets the standards of the urban construction industry of the People's Republic
5. Rated power: 2000w
6. Rated voltage: 220v or 380v
7. Water pressure: 0.1mpa or more
8. Packaging type: wooden frame packaging

RO Water Treatment System Features:

1. Reverse osmosis is the desalting and desalting of brine containing water at room temperature using a non-phase-change physical method. At present, the desalination rate of the ultrathin composite membrane element can reach 99.5% or more.
2, the use of imported reverse osmosis membrane, high salt rejection rate, long service life, low operating costs;
3. Adopt automatic pretreatment system to realize unmanned operation;
4. Imported Grundfos booster pump, high efficiency, low noise, stable and reliable;
5. Online water quality monitoring and control to monitor water quality changes in real time to ensure water quality safety;
6, fully automatic electronic control program, also optional touch screen operation, easy to use;
7. Customized design that meets local water quality to meet all needs.
8. High degree of automation, low cost of operation and maintenance and equipment maintenance.
9. The treatment of water relies solely on the pressure of water as the driving force, and its energy consumption is the lowest among many treatment processes.
10, do not use a large number of chemical agents and acid, alkali regeneration treatment, no chemical waste liquid discharge, no environmental pollution.
11. Reverse osmosis can continuously run water, the system is simple, the operation is convenient, and the product water quality is stable.
12. The equipment footprint and operation space are small.

RO Water Treatment Process:
Raw water tank(buyer supply)→raw water pump → quartz filter → activated carbon filter → (softener) → security filter → high pressure pump → reverse osmosis system → pure water tank(buyer supply)→ water point
1. The reverse osmosis forward water temperature is about 25 ± 2 °C.
2. Reverse osmosis system includes: security filter, high pressure pump, reverse osmosis membrane group, control instrument, etc.
3. The water treatment system of this project is based on the RO desalination system. The quartz filter, activated carbon filter and security filter are pre-processed to ensure the normal operation of the ro system.
4. Process characteristics: Compared with traditional ion exchange demineralization, reverse osmosis desalination has the advantages of long-term stable operation, high reliability, high processing precision, long operating cycle and low operating cost.

0.25T EDI Automatic RO Water Treatment System For Medicine Industry 0
0.25T EDI Automatic RO Water Treatment System For Medicine Industry 1
0.25T EDI Automatic RO Water Treatment System For Medicine Industry 2
Product Tag: RO Water Treatment System, Brackish Water System
