FRP Sand Carbon Ultrapure Water System With Three Cans 250 Liters Per Hour

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ultrapure Water System Recovery Rate: 50%-75%
Electrical Power: 220/380V 50/60Hz Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC Size: 1550*620*1670MM
Weight: 200KG Feed Water TDS: <2000mg/L
High Light:

ultra pure water filter

,

ultrapure water equipment


Product Description

FRP Sand Carbon Ultrapure Water System With Three Cans 250 Liters Per Hour​



1. Ultrapure Water System Work process:



The RO water system is adopt advanced technology , the RO water output rate is 1.5M3/HR.
The quartz sand filter can remove the suspend solid and improve the outlet water turbidity.
The activated carbon filters will remove color, odor, chlorine from the raw water.
After these two filters , the water will be through into the security filter which can remove the smaller suspended solids .Then water flow into RO system part cause by the boosting of high pressure pump.
The inlet water reach working pressure of the RO system part , then transport into to the pressure vessel which with RO membrane module .The water will be separated by the RO membrane and become two water current, the one is outlet pure water , the other one is dense water.
The pure water is transport to pure storage tank and the dense water is discharged to gutter after the adjustment of dense water valve and measurement of the measure meter.



Ultrapure Water System Capacity



Model Capacity Recovery Rate Desalination Output power Membrane Brand RO Rack Size (mm)
KYRO-250 250L/H 50% 97% 1.5kw USA-DOW 1550*620*1670
KYRO-500 500L/H 50% 97% 1.5kw USA-DOW 1650*630*1800
KYRO-750 750L/H 50% 97% 2.5kw USA-DOW 1870*630*1850
KYRO-1000 1000L/H 50% 97% 2.5kw USA-DOW 1870*650*1850
KYRO-1500 1500L/H 50% 97% 3.0kw USA-DOW 2440*750*2000
KYRO-2000 2000L/H 50% 97% 3.5kw USA-DOW 2440*650*1750
KYRO-3000 3000L/H 50% 97% 4.0kw USA-DOW 2440*620*1850
KYRO-4000 4000L/H 50% 97% 5.0kw USA-DOW 2000*900*1800
KYRO-5000 5000L/H 50% 97% 7.5kw USA-DOW 2000*900*1800
KYRO-6000 6000L/H 60% 97% 9.5kw USA-DOW 3000*900*1800
KYRO-8000 8000L/H 60% 97% 13.5kw USA-DOW 3000*900*1800
KYRO-9000 9000L/H 60% 97% 14.0kw USA-DOW 3000*900*1800
KYRO-10T 10M3/H 60% 97% 19.0kw USA-DOW 4000*900*1800
KYRO-12T 12M3/H 60% 97% 19.5kw USA-DOW 4000*900*1800
KYRO-15T 15M3/H 60% 97% 23kw USA-DOW 4000*900*1950
KYRO-20T 20M3/H 60% 97% 28kw USA-DOW 5000*900*1950
KYRO-30T 30M3/H 60% 97% 55kw USA-DOW 7000*900*1950
KYRO-50T 50M3/H 75% 97% 58kw USA-DOW 7000*1500*2100



Component:



There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year.

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.



Optional Components:



A. Regulating wheels

B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

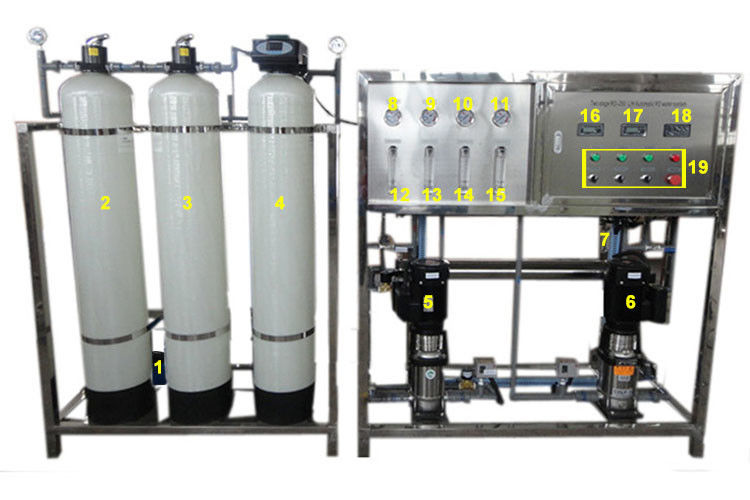

Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;

2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...
