Double Stage Water Treatment Machine For Chemical Industry / Dialysis / Pharmaceutical Industry

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Treatment System Production Capacity: 3000 Litters Per Hour
Electrical Power: 220/380V 50/60Hz Tank Material: SUS-304
Pipe Fitting: SUS304/ U-PVC Function: Remove Dissolved Solids From Water
Feed Water TDS: <2000mg/L Desalination Rate: >=97%
High Light:

reverse osmosis water filter system

,

ro reverse osmosis water filter


Product Description

Double Stage Water Treatment Machine For Chemical Industry / Dialysis / Pharmaceutical Industry



RO Water Treatment System Description

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.
Specificationfor 3000L/H RO system
Item
Material/Model
Brand
Function
Raw water pump
SS304
Domestic
Provide pressure for raw water
Quartz sand filter
SUS-304
Domestic
Remove large particule
Activated carbon filter
SUS-304
Domestic

Removesmell,color,bacterial and organic matter
Security filter
SUS-304 1μm/5μm
Domestic
Block impurities greater than 5micron(1micron)
High pressure pump
SS304
CNP
Provide pressure for water into RO membrane
RO membrane
BW30-400IG
USA DOW
Remove heavy mental ion,bacterial,virus
UV sterilizer(Optional)
40W
Domestic
Kill 99% bacterial
(For drinking directly)
Ozone Generator(Optional)
7g/l
Domestic
Kill 99%bacterial and keep 2hours.(For making bottled water)


RO Water Treatment System Main Features


1. Standard integrated appearance, compact structure saving floor space
2.Standard blue glass steel pretreatment tank, beautiful appearance, higher cost of appearance
3.Manual and automatic control in case of any emergency to facilitate the usage in emergency situations. Higher cost of electronic control
4, Electrical control with stainless steel 304 rack and shell, with a full closure plate shape, compared to the semi-closed plate shape, higher cost
5, The entire department uses ultra-pure water for ultra-clean PVC / SUS-304 pipe fittings, low dissolution, prevent the secondary pollution of pure water
6. The electronic control device adopts one power and one control. Each electronic component has independent layout and does not interfere with each other. The failure rate is lower, and the extended function wiring port is reserved to facilitate the customer's new functions and use later.
7. The pre-treatment regeneration washing function is interconnected with the host electronic control to ensure that the pre-treatment system is flushed and reproduced more fully, and the replacement frequency of consumables is reduced, and the service life is longer.

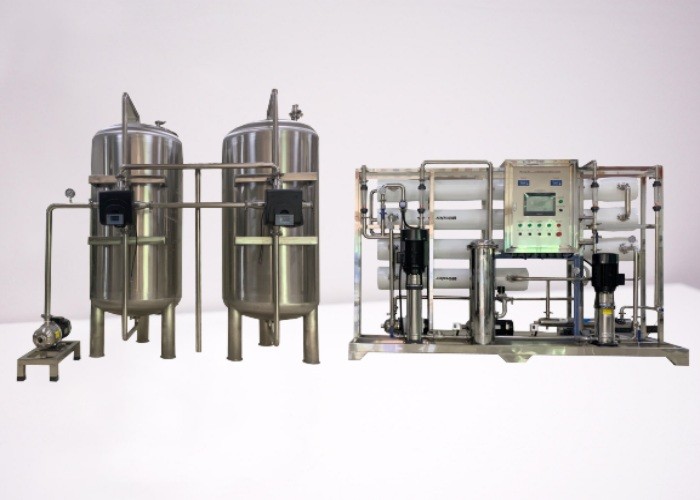

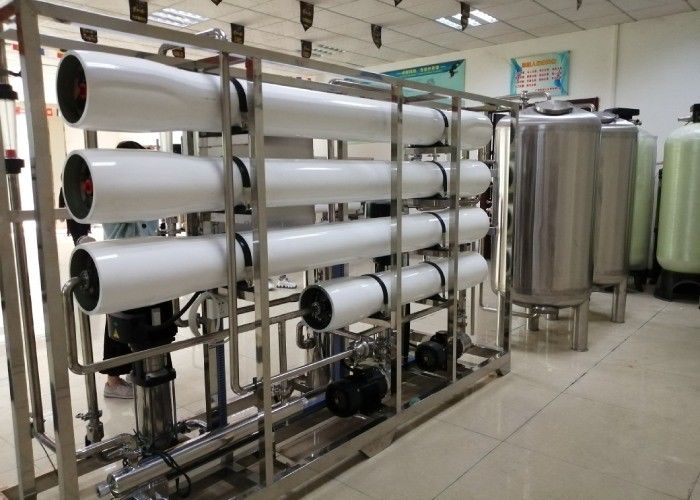

RO Water Treatment System Show
