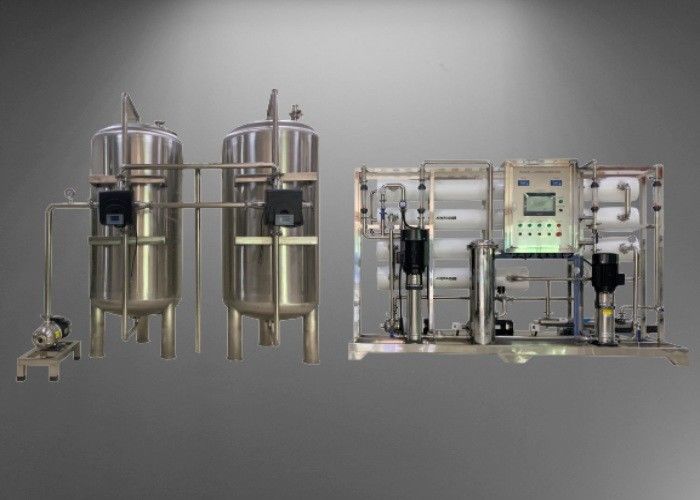

3TPH Double Stage Reverse Osmosis System Industrial Water Purification Treatment Machine
Ro Water Purifier MachineDescription
Double reverse osmosis technology to remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water. It can efficiently purify tap water, borehole water, spring water or well water to pure water for chemical industry, pharmacutical, hospital cleaning room, food making, drinking, etc. Meanwhile, as an factory, we can accept customize.
1. Total water inlet : ≥ 7 m³/h, Raw water pressure:≥0.3MPa (If less than 0.3MPa,the raw water tank and constant pressure system are needed)
Water yield : 3 m³/h @25℃
2. Raw water pressure & temperature: 0.2-0.4MPa; 5-40℃
3. Environment temperature: 5-40℃; humidness <85%(No dust and strong electromagnetic interference.)
4. Optional capacity: 0.25-10 T/H
5. The DN of RO membrane: 0.0001-0.001um
6. Desalinization rate: ≥ 99%
Endotoxin, bacteria removal rate: ≥ 99%
Recovery rate: ≥ 75%
7. Pure water quality: 1st stage pure water's condustivity ≤15µs/cm @25℃
2nd stage pure water's conductivity ≤5µs/cm @25℃
Ro Water Purifier Machine Details
|
|
|
|
|
|
|
Raw water tank
|
Store water, buffering pressure, overcome instability of
supplying water by pipe, ensure to supply water stably
and continuously for whole system
|
Customer provide for
themselves, because
big size will result in
expensive freight.
|
|
|
Raw water pump or called booster pump
|
Provide needed pressure for every pretreatment filter
|
We can provide CNP
pumps or Grundfos
pumps
|
|
|
Mechanical filter /quartz sand
filter /sand filter
|
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities,
suspended substances, colloids etc.
|
|
|
|
Activated carbon filter
|
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine
and organics substances.
|
|
|
|
Security filter /pp filter / sediment
filter
|
prevent large particles, bacteria, viruses into RO
membrane, accuracy is 5 micron,
|
|
|
|
High pressure
pump
|
Provide needed working pressure for RO system, ensure
production capacity of pure water.
|
CNP pump, Grundfos
optional
|
|
|
RO(reverse
osmosis) system
|
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful
substances and 97% dissolved salts.
|
RO membranes USA
Filmtec Dow
|
|
|
UV/ Ozone
generator
|
Kill bacterials in water. UV for direct drinking water.
Ozone generator for bottle water
|
|
Ro Water Purifier Machine Processing
raw water→ raw water pump→quartz sand filter→activated carbon filter→security filter→one stage high pressure pump→one stage ro system→two stage high pressure pump→two stage RO system→water supply point
Ro Water Purifier Machine Advantages:
1) highly automatic
2).No need the chemical regeneration,easy operation
3).RO system choose the import USA DOW membrane
4).Automatic switch on when low raw water level,and switch off when high pure water level
5).RO membrane can backwash automatic and reduce the pollution.
6).Water shortage protection for high pump
7).Low operation Cost and Long life span
8).Easily control and Maintained.
9).Auto membrane flushing
10).Environmental protection, Low power consumption
11) Auto flush/backwash
12) Low /high pressure protection
Ro Water Purifier Machine Details
