RO + EDI System Water Treatment Purification System / Water Treatment Equipment

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: >= 1sets
Price: Negotiate
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: 250L/H RO Water Purifier Machine RO Membrane: USA Filmtec Dow
Multiple -Choice Control Valve: Automatic Or Manual Recovery Rate: 50%-75%
Desalination Rate: 97% Membrane Vessel: FRP Or Stainless Steel
Operating Temperature: 5℃ - 39℃ Pump Optional: Ling Xiao / CNP / Grundfos
High Light:

ultrapure water equipment

,

pure and clear water filter system


Product Description

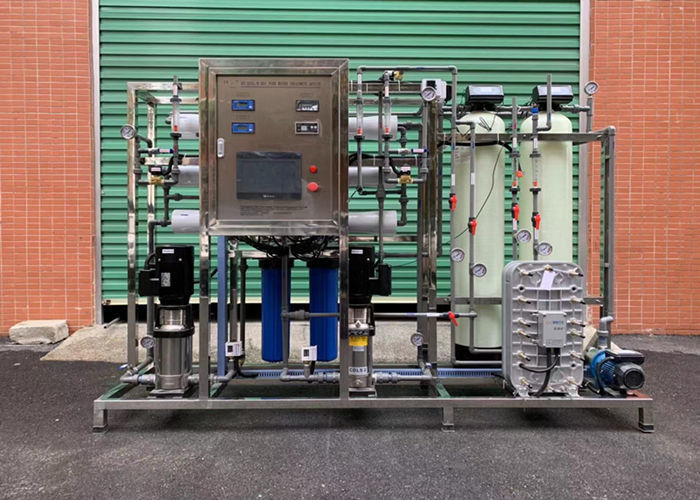

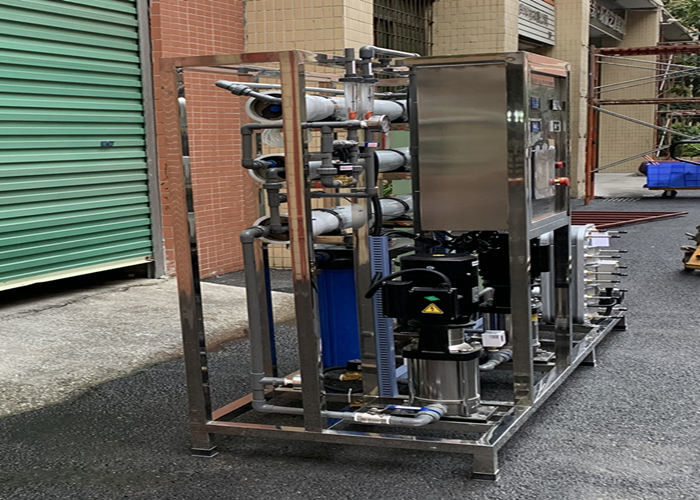

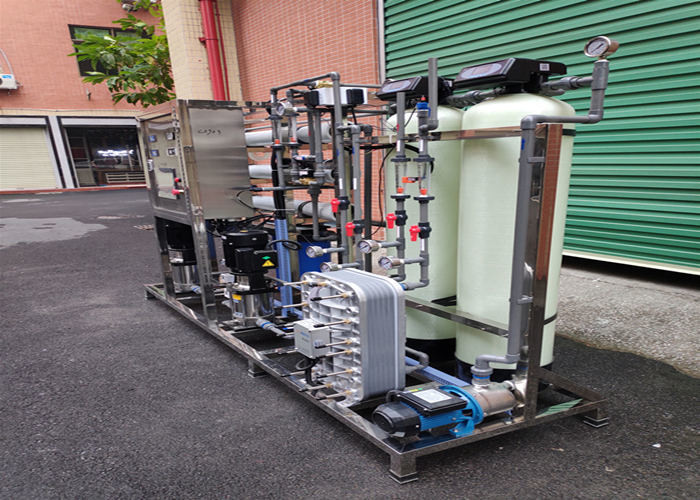

RO + EDI system water treatment purification system water treatment equipment



We produce various filter cartridges, RO and UF membrane, RO water purifiers and equipments, UF water purifiers and equipments, water filter housing, stainless steel cartridge filter housing, central water purifier, water softeners ect.



Advantages of EDI Technology

1. Best stability of water quality
2. Constantly produce ultrapure water as per user requirements
3. Modular production, can achieve automatic control
4. No need acid and alkali regeneration, no pollution emissions
5. No need stop because of regeneration
6. No need regeneration equipment and chemical storage
7. Compact equipment, small size
8. Low operation and maintenance cost
9. Simple operation and low labor strength



EDI, also known as electric desalination. It is a new ultra pure water technology which gradually developed in the 20th century. EDI equipment combined electro dialysis technology and ion exchange technology. It is using the selectivity penetrate function of anion and cation membrane and exchange function of ion exchange resin, under direct current electric field to make ion directed migration. Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionize will regenerate ion exchange resin. So if use EDI equipment, no need acid and alkali chemical to do any regeneration, and it can produce ultra pure water continuously.

Our company is professionally in producing reverse osmosis (RO) water machine, pure water treatment plant, purified ro water filter, industrial water, well water treatment unit, softened water equipments, underground water treatment equipments, iron manganese removal equipments, laboratory deionized water equipments, deionized water equipments, direct drinking water equipments, domestic drinking water equipments, EDI high purity water, swimming pool water purifying equipments, river, seawater desalination equipments, ultrafiltration(UF) equipments, electroplate water treatment equipments, ion exchange equipments- Mixed bed, water softener, all kinds of water treatment consumable(need replaced parts) materials(PP sediment cartridge, RO membranes), accessories, can be customized various kinds of model as your requirements.

A. Description:
RO water treatment, the raw water is sea water TDS>35000PPM, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤ 10μ S/cm² .

B. Process:
Raw water→ raw water tank→ raw water pump→ sand filter→ carbon filter→ water softener (dosing system optional) → security filter → high pressure pump→ reverse osmosis→ pure water tank→ UV sterilizer (ozone generation)→CIP cleaning system→ water supply points



C. RO Parameters:
1. Capacity: 250litres per hour
2. Rated power: 2.0Kw/H
3. Voltage: 220V 3phase,or 380V 3 phase/50Hz or 60Hz
4. Desalting rate: >98%
5. Water recovery rate: >50%

D. Optional Components:
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

E. Detailed specification
1) Adopts imported RO membrane from America, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and PP sediment filter.
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional).
7) The lifespan of the whole system is long, operation simple, the applicability is strong







Guidelines for getting a proper quotation

  • Tell us the raw water/source of water

  • Provide water analysis report

  • Required production capacity( 500 liters per hour, 1000liters per hour…)

  • What's the pure water used for( drinking, bottle water or industrial use…)


Tag: RO Water Treatment System, Brackish Water System
