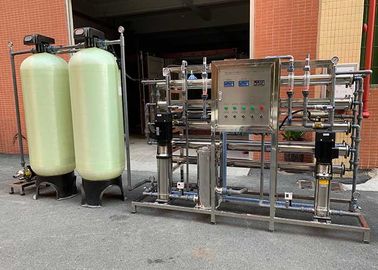

Ultra Pure Water Equipment RO Plant 2000L/H For Hemodialysis / Cosmetic / Beverage

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-2000LPH
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 3-15working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ultra Pure Water Equipment RO Plant 2000L/H Production Capacity: 2000L/H
Application: Hemodialysis/ Cosmetic/ Beverage Electrical Power: 220V / 380V, 1ph / 3ph, 50Hz / 60Hz
Tank Material: FRP Control Valve: Automatic
Pipe Fitting: SUS304/ U-PVC Pre-treatment: Sand/ Carbon/ Filter Cartidge
Membrane: USA DOW Desalination Rate: >=97%
High Light:

ultra pure water filter

,

ultrapure water equipment


Product Description

Ultra Pure Water Equipment RO Plant 2000L/H For Hemodialysis/ Cosmetic/ Beverage



Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.



The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.





Two stage RO system



This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.



If raw water conductivity is less than 300uS/cm, first stage output is less than 10uS/cm, two stage output is 2uS/cm





Process



Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Security filter → 1st stage high pressure pump →1st stage RO system→2nd stage high pressure pump→2nd stage RO system→UV sterilizer→output supply point



Some parts function



1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.



Ultra Pure Water Equipment RO Plant 2000L/H For Hemodialysis / Cosmetic / Beverage 0

Ultra Pure Water Equipment RO Plant 2000L/H For Hemodialysis / Cosmetic / Beverage 1

Ultra Pure Water Equipment RO Plant 2000L/H For Hemodialysis / Cosmetic / Beverage 2

Ultra Pure Water Equipment RO Plant 2000L/H For Hemodialysis / Cosmetic / Beverage 3





Thank you so much for your value time. Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours. Tel/ whatsApp/ wechat: +86-13660858152



Guidelines for getting a proper quotation

Tell us the raw water/source of water

Provide water analysis report

Required production capacity( 500 liters per hour, 1000liters per hour…)

What's the pure water used for( drinking, bottle water or industrial use…)
