380V / 220V RO Ultrapure Water System With EDI For Medicine Or Beverage Factory

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-250LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
RO Membrane: USA DOW Production Capacity: 250LPH
Recovery Rate: 80% Electrical Power: 220/380V 50/60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
Feed Water TDS: <2000mg/L Desalination Rate: >=97%
High Light:

ultra pure water filter


ultrapure water equipment

Product Description

380V / 220V RO Water Treatment Plant With EDI For Medicine Or Beverage Factory

EDI, electrodeionization. The equipment producing high quality ultra-pure water by mixed technology of electro osmosis and ion exchange, no need of acid and alkali chemicals.

1.Product Description of Ultra Pure Water Machine

EDI (Electrodeionization)is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.


RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure
pump, increasing pressure to raw water, then force raw water penetrating through reverse
osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.


2.Product Details of Ultra Pure Water Machine


kyro-1000lph Stainless Steel two stage RO+EDI ultrapure water equipment


1. Capacity: 1000L/H EDI
2. Rated power: 3.0KW/H
3. Voltage: 110V/ 220V/ 380V, 50Hz/ 60Hz, single phase/ 3phase (customize)
4. Desalting rate:>=97%
5. Water recovery rate: 75%
6. Conductivity of raw water: ≤400μs
7. Conductivity of EDI pure water: <=2μs


3. Features of Ultra Pure Water Machine


1) Equipment operation cost is low,easy to manage;
2) Filter material can use many times after backwashing,long service life;
3) Strength,high temperature resistant,filter out of shape not easily;
4) The filter material spotlessness,the filter medium pollution;

5) Wide range of uses.


4. Advantages of Ultra Pure Water Machine


1. Fresh water quality, transparent processing, clean, health, and meet GB requirements
2. High technical, stable operation, easy to maintain, long life time
3. We can design upon customers requirement
4. Competitive price, more profit


5. Application of Ultra Pure Water Machine


a. Medical production,industrial pharmacy use
b. Cosmetics
c. Recycling water system
d. Chemical, electroplate industrial etc
e. Microelectronic, power, and biological project
f. Chemical Lab
g. Other electronic standard water
6. Process
SS304 raw water tank-raw water pump-multimedia filter-active carbon filter-softener filter-precision filter-high pressure pump-1st reverse osmosis filters with CIP system -PH dosing -high pressure pump-2nd reverse osmosis filters-(2nd RO water tank)-EDI precision filter- EDI device-pure water tank-heat exchanger - UV lamp -outlet

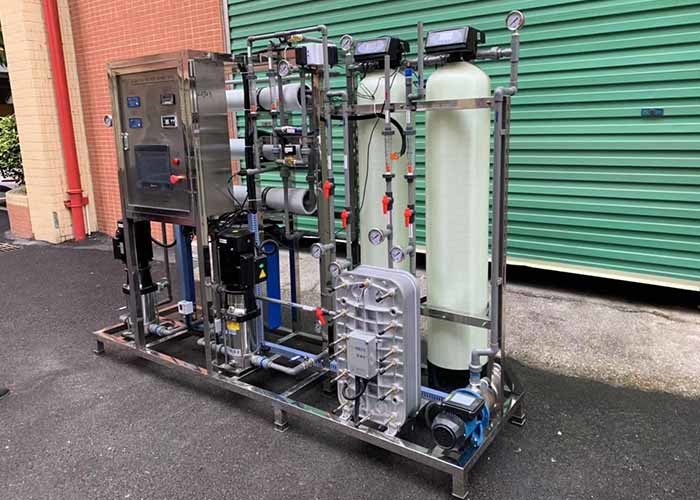

6. Photo Show

380V / 220V RO Ultrapure Water System With EDI For Medicine Or Beverage Factory 0

380V / 220V RO Ultrapure Water System With EDI For Medicine Or Beverage Factory 1
