Detail Information

RO Membrane:	5000LPH RO Water Treatment Plant	Production Capacity:	5000 LPH Two Stage
Electrical Power:	380V 3Phase 50Hz / 60Hz	Tank Material:	Stainless Steel SUS304
Water Softener:	One Work One Standby	Application:	Purification / Industrial / Drinking Water
Control:	Automatic / Manual	Desalination Rate:	>=97%
High Light:	ultra pure water filter , ultrapure water equipment

Product Description

Fiber Glass / Stainless Steel Water Purification Equipment , 5000LPH RO Water Treatment Plant

RO (Reverse Osmosis) water filtration system is the most effective and popular drinking water treatment solution due to its stable salt rejection features and effective filtration result to removal the bacteria, virus, microbiological contaminants, organic contaminants, metal ion etc. the following chart is the comparison chart of RO system against the other type of filtration method.

Parameter

Desalting rate: 96% - 98%

Recovery rate: 60% - 75%

Production range: 250LPH-300TPH

Capacity of pure water: 5000LPH (5000liters per hour)

Rated power: 220V-240V 1ph / 3ph; 380V-415V 3ph (customiz)

Pretreatment media: quartz sand, activated carbon, cation resin, filter cartridge

Process

raw water→ raw water tank(by client)→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank→UV sterilizer(ozone generator)→pure water tank(by client)→ water supply point

Some parts functions with our machine for your reference as below:

1.Pretreatment media: quartz sand, activated carbon, cation resin, filter cartridge

2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on

3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4.Softener ---Hard water is softened by removing the calcium magnesium it contains.

5. Micron filter--prevent any deposition of large Particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

6. High pressure pump-- Provide the high pressure to RO membrane, at least 2.0 MPA

7. RO system--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica, 85 % of B. simply operation and life span.

Application

1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2). Food and beverage industry: filter for mineral water, wines and fruit juice

3). Medicine industry: filter for drug liquid, gases

4). Chemical industry: filter for organic solvent

5). Petroleum industry: filter for oil-field flooding

6). Power system

7). Metallurgical industry

8). Medical and pharmaceutical industry

9). Brackish water desalination et

5000LPH difference style optional

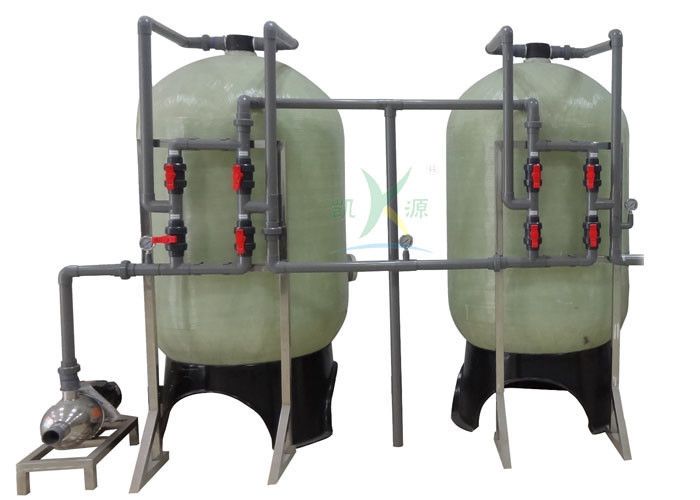

Up: (Fiber glass)FRP pretreatment tank with automatic control quartz sand filter & activated carbon filter.

Down: (SS)Stainless steel pretreatment tank with manual control quartz sand filter & activated carbon filter.

Fiber Glass / Stainless Steel Water Purification Equipment , 5000LPH RO Water Treatment Plant 0

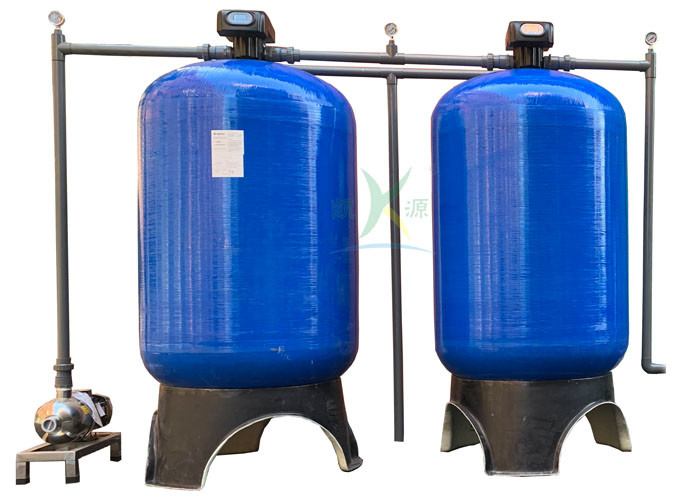

(Fiber glass in blue color)FRP pretreatment tank with manual control quartz sand filter & activated carbon filter + automatic control water softener(with cation resin and salt sank) + PLC control touch screen.

Fiber Glass / Stainless Steel Water Purification Equipment , 5000LPH RO Water Treatment Plant 1

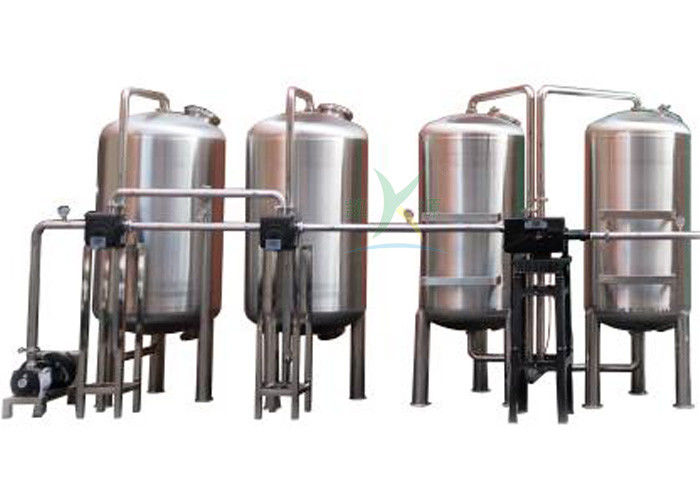

(SS)Stainless steel pretreatment tank with automatic control quartz sand filter & activated carbon filter & stand by water softener(with cation resin and salt sank) + PLC control touch screen.

Fiber Glass / Stainless Steel Water Purification Equipment , 5000LPH RO Water Treatment Plant 2

Up: arrange shipping

Down: client received goods

Fiber Glass / Stainless Steel Water Purification Equipment , 5000LPH RO Water Treatment Plant 3

If interests & any questions just feel free to buzz me anytime^-^

Product Tag: RO Water Treatment System, Brackish Water System

Tag:

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-5000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	7-15working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month
