Two Stage Ultrapure Water System / Pure Water Filter 50T/H With Blue Fiberglass

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-50TPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
RO Membrane: USA DOW Production Capacity: 50T/H
Recovery Rate: More Than 75% Electrical Power: 220V 3Phase / 380V
Tank Material: Fiberglass / Stainless Steel / Carbon Steel Application: Pure / Drinking / Industrial Water
Size: 7000*1500*2100MM Desalination Rate: >=97%
High Light:

pure and clear water filter system

,

ultrapure water equipment


Product Description

50T/H Two Stage BW Ro Water Treatment System Reverse Osmosis System For Drinking With Blue Fiberglass

1.Product Description

RO reverse osmosis is relying on the reverse osmosis membrane under enough pressure, make solution by reverse osmosis membrane solvents in pure water, so as to achieve the goal of removing salt.The pore size of RO reverse osmosis membrane is only nanoscale. Under a certain pressure, H2O molecules can go through the RO membrane, while the inorganic salts, heavy metal ions, organic matter, colloid, bacteria, viruses, and other impurities in the raw water can not pass RO membrane. Thus pure water and concentrated water are separated.



2.Product Details



KYRO-50TPH Two Stage Ultrapure RO water System



Application: mineral water, direct drinking water, beverage&food,win.,ect
Water outlet: Conductivity <10us.cm25℃(support customize)
Production Capacity: 50m³ per hour
Raw water quality:TDS less then 2000ppm





3. Features



(1). Occupy little space, easy to operate, wide application range;
(2). operation cost is low, acid and alkali consumption is low, no secondary pollution;
(3). Reverse osmosis desalting rate ≧ 99%, machine desalting rate ≧ 97%, 100% of organic and bacteria can be removed;
(4). Finished water under good electronic conductivity, one stage ≦10u s/cm, two stage around 2~3u s/cm, based on raw water ≦ 600 u s/cm;
(5). High operation automation degree. It is unattended. The machine will automatically stop in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by Integrated circuit system. Online display of raw water and pure water electronic conductivity;
(6). Main parts use import brands, some parts use domestic well-known brands.





Benefits of Reverse Osmosis (RO) Systems

RO system requires very less energy for its working.
It requires very low maintenance.
The RO system uses an automated technique called cross-flow to clean its clogged membrane.
RO system, when used in water filters, eliminates 98% of the impurities from tap water.
The water produced by RO technology, when supplied to a gas turbine, improves operating efficiency, and increases output by more than 10%.
RO systems are cost-effective, and their price is continually decreasing.
RO systems do not make use of harmful chemicals, hence are used in many power plants.


4. Application

Solvents, Paints Edible Oils
Petrochemicals Drinking Water
Waste Water Chemicals
Metal Automotive
Electronics Food and Beverage

5. Process

Raw water tank - raw water pump - quartz filter - active carbon filter - security filter - 1st high pressure pump - 1st reverse osmosis filters - 2nd high pressure pump - 2nd reverse osmosis filters - pure water tank - UV lamp -outlet water point



6. Photo Show

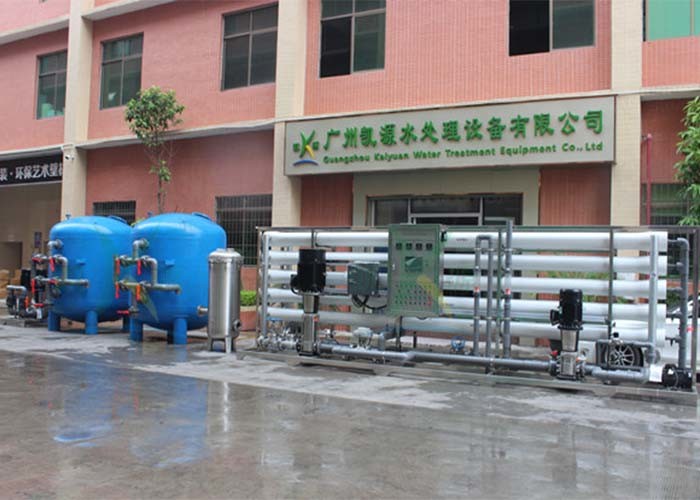

Two Stage Ultrapure Water System / Pure Water Filter 50T/H With Blue Fiberglass 0

Two Stage Ultrapure Water System / Pure Water Filter 50T/H With Blue Fiberglass 1

Two Stage Ultrapure Water System / Pure Water Filter 50T/H With Blue Fiberglass 2



* For different size and different water source please contact with us. Customized design is availbale.
