Reverse Osmosis Ultrapure Water System , EDI Resin Distilled Water System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
RO Membrane: USA DOW Production Capacity: 500liters Per Hour
Recovery Rate: 50%-75% Electrical Power: 220/380V 50/60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
Size: 1550*620*1670MM Weight: 200KG
Feed Water TDS: <2000mg/L Desalination Rate: >=97%
High Light:

ultra pure water filter

,

pure and clear water filter system


Product Description

Ultrapure Water System Reverse Osmosis EDI Resin Water Distiller System

1. Product Description

Ro edi water treatment system is developed a membrane separation technology, which mainly use the semipermeable membrane permeation principle, to give it a certain way by applying a pressure on the natural infiltration direction against the force of the water in the concentrated solution dilute the solution to penetrate this way is called reverse osmosis. By the components of the device is reverse osmosis reverse osmosis unit.

One, two reverse osmosis + EDI preparation (purified water process characteristics)

1 Suitable for raw water salinity compared Height regions;
2 product water conductivity is better;
3 one-time investment of less;
4 lower operating costs;
5.Stability.



2. Product Details



kyro-500lph Stainless Steel EDI ultrapure water equipment



1. Capacity: 500L/H EDI

2. Rated power: 1.5KW/H

3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. Conductivity of raw water: ≤400μs

7. Conductivity of EDI pure water: <=2μs



System Performance:



♦♦.Reverse osmosis resin use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
♦♦.Reverse osmosis edi has protected when no power, poor power, larger electrical current, leakage, short circuit.
♦♦.Reverse osmosis water distiller is compact, easy installation.
♦♦.Reverse osmosis edi equipped with manual and auto control based on user needed.
♦♦.Reverse osmosis water distiller produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
♦♦. All the plants will be commissioning well. Make sure don't have any problem when arrived site.
♦♦.What we provide not only the good products, but also our whole team, the quality, experience, and service.



3. Product Processing



Water Treatment Plant is widely used in drinking water supply, purification for tap water, underground water, borehole water, spring water, pure water and beverage area.

Raw water source:Bore whole, river, well, mountain spring, lake, etc.
Raw water pump/multi pump:Nanfang, Grundfos
Filter media:Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane:Filmtec Dow




4. Application


**Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.
**Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.
**Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.
**Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.
**Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas.
**Purified drinking water: house properties, communities, enterprises, etc.

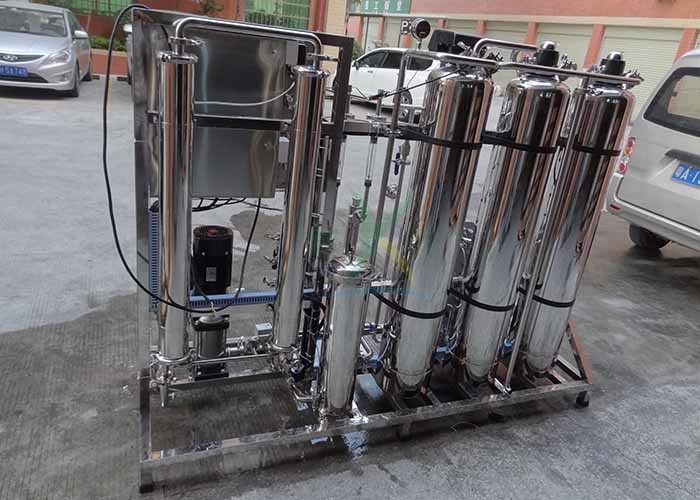

5. Photo Show



Reverse Osmosis Ultrapure Water System , EDI Resin Distilled Water System 0

Reverse Osmosis Ultrapure Water System , EDI Resin Distilled Water System 1
