EDI Ultrapure Water System for Pharmaceutical/Cosmetic Water Purifying Machines
1. Product Description
This system occupy little space, easy to operate, wide application range.
Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
Finished water under good electric conductivity, one stage ≤10μs/cm, two stage around 2-3μs/cm, EDI≤0.5μs/cm(based on raw water≤300μs/cm).
2. Product Details
kyro-500lph EDI ultrapure water equipment
|1. Capacity: 500L/H EDI
|2. Rated power: 1.5KW/H
|3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
|4. Desalting rate:>=97%
|5. Water recovery rate: 50-75%
|6. Conductivity of raw water: ≤400μs
|7. Conductivity of EDI pure water: <=1μs
*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
*High efficient and low noise high pressure pump.
*Product water conductivity meter to monitor product water quality all the time.
*Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
*Inlet water solenoid valve to stop water when machine is stop.
3. Product Processing
Water Treatment Plant is widely used in drinking water supply, purification for tap water, underground water, borehole water, spring water, pure water and beverage area.
Raw water source:Bore whole, river, well, mountain spring, lake, etc.
Raw water pump/multi pump:Nanfang, Grundfos
Filter media:Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane:Filmtec Dow
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
**Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.
**Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.
**Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.
**Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.
**Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas.
**Purified drinking water: house properties, communities, enterprises, etc.

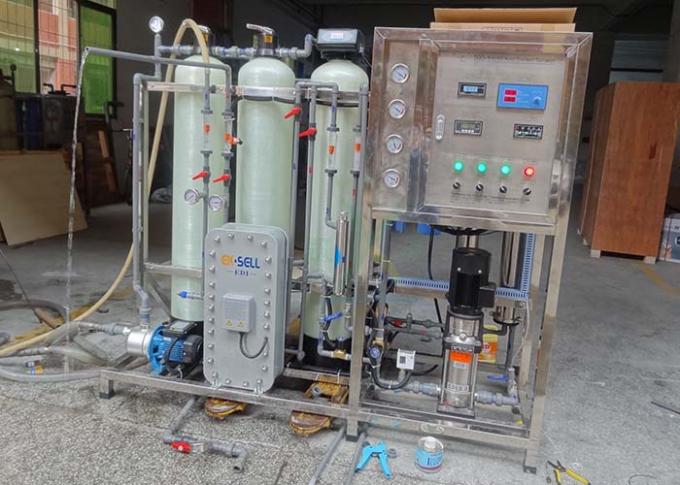

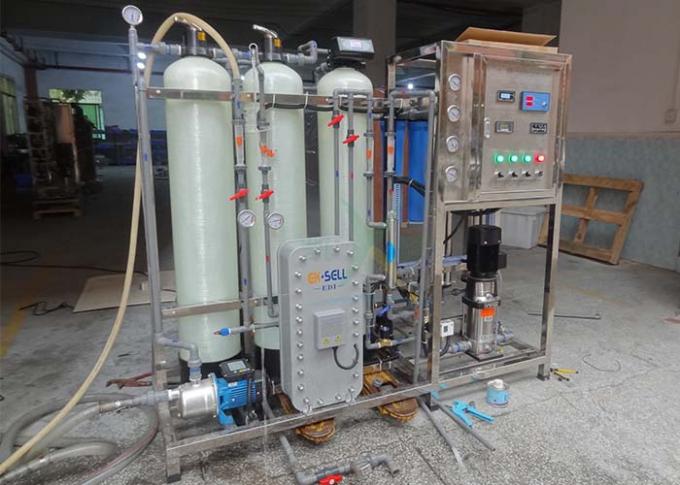

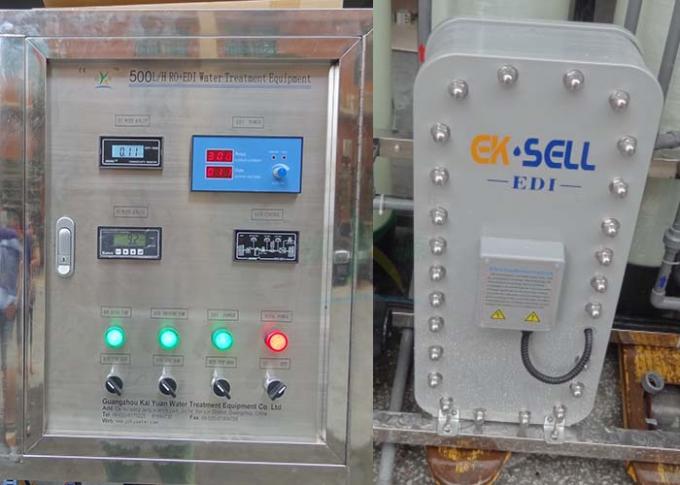

5. Photo Show
