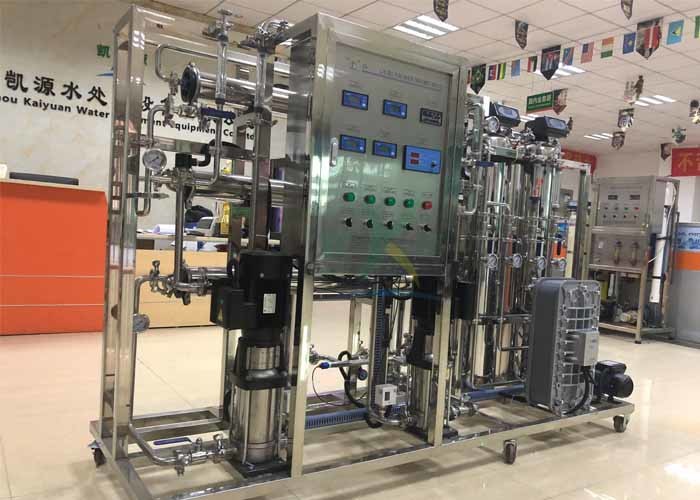

Two Stage Ultrapure Water Equipment 200-250LPH Pure And Clear Whole House Water Filter

two stage 250LPH RO System and 200LPH EDI ultrapure water equipment high quality water filter reverse osmosis plant

System Performance:

*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
*High efficient and low noise high pressure pump.
*Product water conductivity meter to monitor product water quality all the time.
*Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
*Inlet water solenoid valve to stop water when machine is stop.

Component:

There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year.

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

Optional Components:

A. Regulating wheels

3. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;

2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

Application:

Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......

Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

**Textile, chemical industry, process water / chemical recycled water, chemical products manufacturing purification and preparation of water ;
**Food and beverage industrial water, purified drinking water, beverages, beer, liquor, health care products such as water purification and preparation of water;
**Seawater, brackish water desalination islands, ships, offshore drilling platforms, brackish water areas
**Larger community, real estate property, schools, factories, hospitals, and the restaurants, hotels, beauty salons, canteens and other various types of enterprises and institutions.
**Integrated circuits, silicon wafers, display tubes and other electronic components of electronic industrial water rinse water
**Can be used for filling water bottled water, mineral water and other preparation work
