21TPH Ultrafiltration UF System Swimming Pool Water Purifier Industrial Waste Water Treatment UF Filter

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-21TPH
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 15-30working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ultrafiltration Membrane System UF Membrane: UFc90AL
Multiple -Choice Control Valve: Automatic Recovery Rate: 50%-75%
Operating Temperature: 5℃ - 39℃ Pump Optional: Ling Xiao / CNP / Grundfos
Usage: Water Purifiier Pretreatment: Carbon Filter
High Light:

21TPH Ultrafiltration UF System

,

Swimming Pool Water Purifier UF System

,

20000L/H Ultra Filtration System


Product Description

21TPH Ultrafiltration Swimming Pool Water Purifier UF system industrial waste water treatment UF filter



Parameter:

1. Capacity: 20000L/H

2. Rated power: 10.0KW/H
3. Voltage: 220V/380V, 50Hz/60Hz, 3ph
4. Packing size: 5000*900*1950mm
5. Total weight: 8000kg
6. Feed/backwash pump: CDMF42-10
7. Backwash tank: PE-2000
8. UF membrane: UFc200AL x 10pcs
9. Pretreatment:
a. disc filter replace the sand filter
b. activated carbon filter
c. security pp filter



Introduction



The methods of water treatment include physical treatment and chemical treatment.
The physical method includes the use of various filter materials with different pore sizes, and the impurities in the water are excluded by adsorption or blocking. The most important adsorption method is adsorption by activated carbon, and the blocking method is to pass water through the filter material to make the volume. Larger impurities cannot pass, resulting in cleaner water. The chemical method uses various chemicals to convert impurities in water into substances that are less harmful to the human body, or concentrates impurities. After the impurities in the water are collected, the volume becomes larger, and the impurities can be removed by filtration.



Working principle

Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic,bacterium,virus,colloid and non-ion suspended solid.

Application fields

· Industrial wastewater purification and useful material recycling

· Medical sterile water and water for injection to manufacture

· Juice concentrated and refined

· Minerals purification and sterile

· Process water purification and sterile

. Wine and lighter white spirit refined through membrane method



Working process of UF Purification System:
Raw water→ Raw water tanks(provided by buyer) →Raw water pumps →Quartz sand filter→Softener(optional)→ Activated carbon filter →5μm security filter→Ultrafiltration device→UV sterilizer(ozone generator)→Pure water tank(provided by buyer) →Water supply point


STEP<1>. Sand Filter: to use sand media down to 0.5-1mm. which filter size can be down to 200micron. some big suspended solids like coolloids, rust, mud, imparity etc can be trapped by media bed. and be removed from water.

STEP<2>. Carbon Filter: can absorb some organism, dissolved air, odor & color matter etc.

STEP<3>. Softener(optional): use cation exchange resin to remove Calcium, Magnesium etc to make soft water.

STEP<4>. Micron Filter: use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment. so that more safty for entrance of RO.

STEP<5>. Ultra-filtration system (UF membrane to trapped most of ions. to de-mineralize/desaltination etc. it will be PURE WATER from output.

STEP<6>.UV sterilizer(ozone generator): for killing bacterial in water, be safe for drinking.

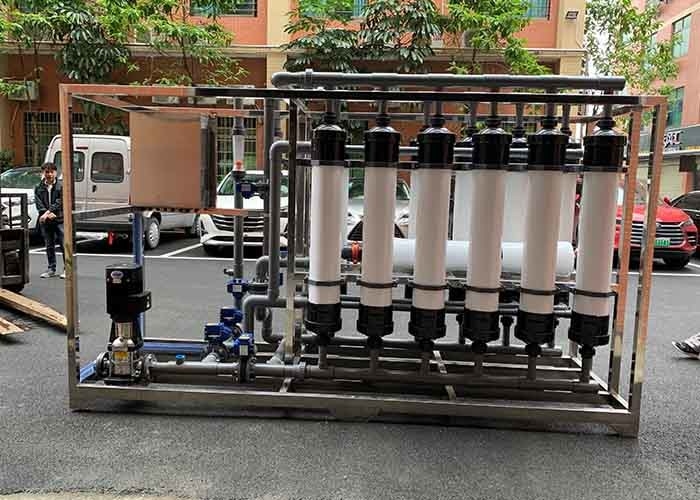

21TPH Ultrafiltration UF System Swimming Pool Water Purifier  Industrial Waste Water Treatment UF Filter 0

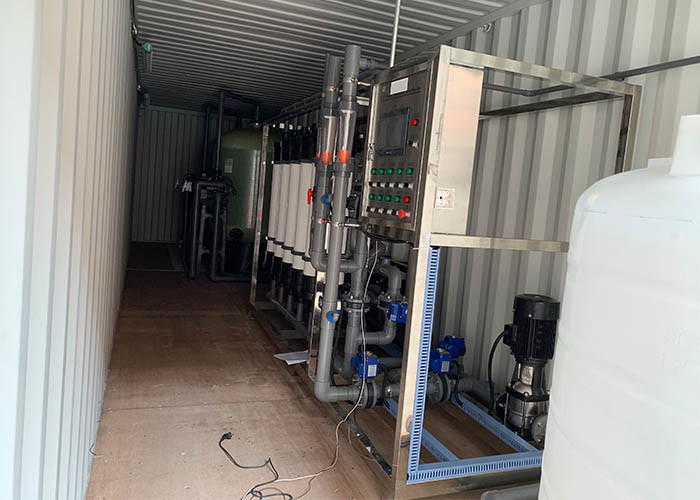

21TPH Ultrafiltration UF System Swimming Pool Water Purifier  Industrial Waste Water Treatment UF Filter 1

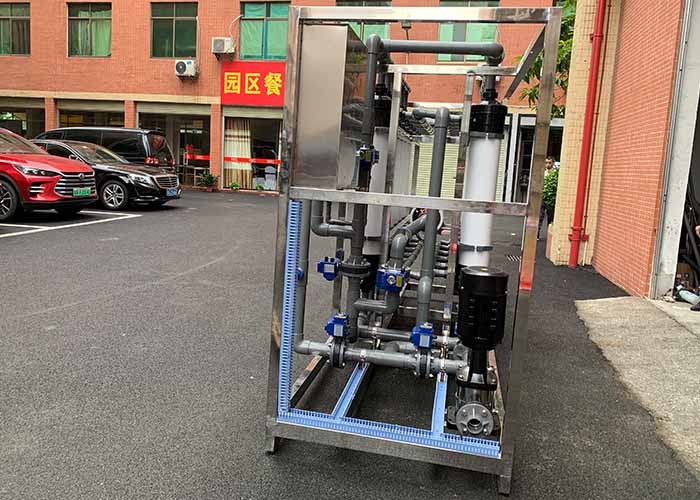

21TPH Ultrafiltration UF System Swimming Pool Water Purifier  Industrial Waste Water Treatment UF Filter 2

Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13660858152


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
