5TPH Industrial Water Treatment Equipment Ultrafiltration UF Water Filter System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-5000LPH
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 15-30working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ultrafiltration Membrane System 5000LPH UF Membrane: UFc90AL
Multiple -Choice Control Valve: Automatic Control Recovery Rate: 50%-75%
Operating Temperature: 5℃ - 39℃ Pump Optional: Ling Xiao / CNP / Grundfos
Function: Water Purifiier Pretreatment: Sand & Carbon Filter
High Light:

water purification systems


membrane filtration water treatment

Product Description

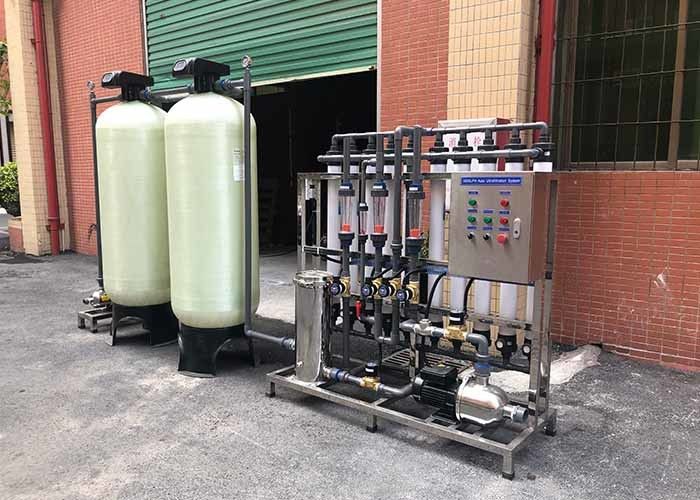

5TPH Industrial Water Treatment Equipment Ultrafiltration UF Water Filter System



1. Housing material: Organic glass( Plexiglass)

2. Fiber material: Modified PVC, PES, PVDF also avaiable

3. The end seals material: Epoxy resin

4. Working temperature:5-45 centigrade

5. PH value range:2-13

6. Max.TMP:0.2Mpa

7. Filtrate water turibidity:<0.1NTU

8. MWCO:6000-100000Dalton

9. Outline size: Φ90*1190mm

10. Connection size: Φ32mm (DN25)

11. Attached mode: Slipknot connection


UF membrane features

(1) Good hydrophilicity

(2) Bursting strength: 1.3MPA

(3) Large flux with 90% fibers porosity

(4) Strong antioxidant ability


UF membrane application

(1) Drinking water purification

(2) Ultrapure water preatement

(3) Municipal sewage and industrial wastewater reuse

(4) Special solution sepraration, concentration,etc


Membrane feature

(1) High interception rate: 99.9999%

(2) Max.inlet pressure: 0.2Mpa

(3) MWCO: 6000 dalton, 10000 dalton, 100000 dalton, 200000 dalton

(4) Application: Pharmaceutical industry to remove pyrogen,endotoxin


The filtration can be outside-in or inside-out, it depends on your choose.



* High-precision

Thoroughly filter bacteria, rust , colloid, macromolecule organics and so on. Maintain microelement which is good for human health. The leading indicator microorganism and turbidity of water purification is superior to sanitary standard for bottled drinking water.
* Long lifespan
UF equipment use square crossing filtration theory self-cleaning, difficult to have filth blockage, so the lifespan is 30-50 times by common purification machine when family use normally.
* Big flux
Meet family drinking, cosmetics, showering, edible, sanitation and so on .
* Low cost:
UF equipment is superior to other purification device with its big flux, long lifespan and free maintainance (purification cost takes only about US$0.1 )
Open the purification outlet, people can enjoy pure water. The sediment inside of capillary will be washed out with water by ordinary running water to avoid blockage and secondary pollution.

Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ security filter + UF system+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points


5TPH Industrial Water Treatment Equipment Ultrafiltration UF Water Filter System 0

5TPH Industrial Water Treatment Equipment Ultrafiltration UF Water Filter System 1



Thank you so much for your value time.Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours.


Guidelines for getting a proper quotation
--Tell us the raw water/source of water
--Provide water analysis report if possible
--Required production capacity( 500 liters per hour, 1000liters per hour…)
--What's the pure water used for( drinking, bottle water or industrial use…)

Tag: RO Water Treatment System, Ultrafiltration Membrane System
