Detail Information

UF Membrane:	UFc90AL	Production Capacity:	5000liters Per Hour
Electrical Power:	220V / 380V 50Hz / 60Hz	Tank Material:	FRP / Stainless Steel
Control Valve:	Automatic / Manual	Pipe Fitting:	SUS304 / U-PVC
Warranty:	1 Year	Optional:	Ozone/ UV / Water Softener
Prefiltering Tank:	Glass Fiber / FRP
High Light:	Industrial Ultrafiltration Systems , Swimming Pool Circulating Water Uf Filter , UF Membrane Water Purification System

Product Description

Swimming Pool Circulating Water Ultra Filtration Treatment Equipment UF Membrane Purification System

1. Product Description

Ultrafiltration (UF) is one of the most widely used membrane separation technologies. It is mainly used for the seperation and macromolecules in solution, seperatio, concentration, deep purification, clarification, sterilization and macromolecular substances. Has a very excellent effect. In the field of water treatment, can be used to remove colloids in water, particles,bacteria, viruses, heat and macromolecule organic matter, so that water is purified.

2. Product Details

S/N	Commodity name	Description/Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump	Provide needed pressure for every pretreatment filter	We can provide CNP pumps or Grundfos pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into UF membrane, accuracy is 5µm	Stainless steel housing or PVC housing
7	UF(ultrafiltration) system	It is mainly used for separation of substances at high molecular level. It has a very good effect on deeply lowering turbidity, clarification, sterilization and separation, concentration, classification and purification of macromolecular substances. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organic substances in water and make water purified.

3.Product Processing

Raw water →raw water pump→ sand filter→carbon filter→water softener(optional)→security filter→ UF system→UV→pure water tank

Swimming Pool Circulating Water Ultra Filtration Treatment Equipment UF Membrane 0

Replacement time of consumable parts
There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag

b. Activated carbon: replaced about every 15 months. 25kg/bag

c. Resin: replaced about every 15 months. 25L/bag

d. PP Filter cartridge: replaced about every 1 month

e. UF membrane: replaced about every 2 -3years

We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month.

Description of Raw water pump:

1--Brand : CNP2--Origin :China (with high quality and good reputation)
3--Function :Provide pressure for the pre-treatment.
4--Material :Stainless steel 304,anti-rust
5--Optional Brand : Danfoss & Grundfos ...

5. Pictures Show

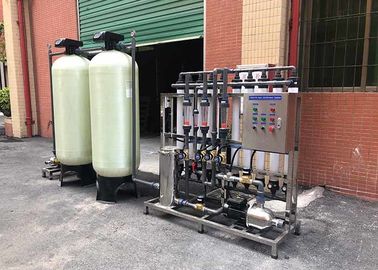

Swimming Pool Circulating Water Ultra Filtration Treatment Equipment UF Membrane 1

Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)

Tag:

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-5000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month
