Detail Information

UF Membrane:	UFc90AL	Production Capacity:	5000liters Per Hour
Electrical Power:	220V / 380V 50Hz / 60Hz	Tank Material:	FRP / Stainless Steel
Control Valve:	Automatic / Manual	Pipe Fitting:	SUS304 / U-PVC
Warranty:	1 Year	Optional:	Ozone/ UV / Water Softener
Prefiltering Tank:	Glass Fiber / FRP
High Light:	Uf System Water Treatment Plant , UV UF Water Purifier Equipment , UFc90AL Membrane Water Filter System

Product Description

UF Water Filter System Ultra Filtration Membrane Modules UV UF Water Purifier Price Treatment Equipment

1. Product Description

Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable
membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for removal of bacteria and other microorganisms, particulate material, and natural organic material, which can impart color, tastes, and odors to the water and react with disinfectants to form disinfection byproducts (DBP). As advancements are made in membrane production and module design, capital and operating costs continue to decline.

2. Product Details

S/N	Commodity name	Description/Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump	Provide needed pressure for every pretreatment filter	We can provide CNP pumps or Grundfos pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into UF membrane, accuracy is 5µm	Stainless steel housing or PVC housing
7	UF(ultrafiltration) system	It is mainly used for separation of substances at high molecular level. It has a very good effect on deeply lowering turbidity, clarification, sterilization and separation, concentration, classification and purification of macromolecular substances. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organic substances in water and make water purified.
8	Sterilizer device	UV sterilizer or ozone generator

3.Product Processing

Raw water →raw water pump→ sand filter→carbon filter→water softener(optional)→security filter→ UF system→UV→pure water tank

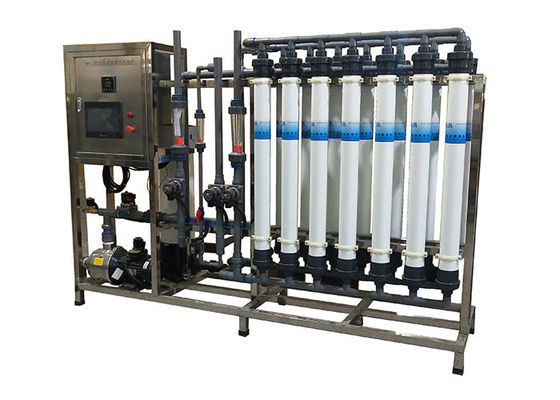

UFc90AL Membrane Water Filter System UV UF Water Purifier Equipment 0

Main Features

Ultrafiltration technology has become an indispensable tool in the pharmaceutical industry, food industry, electronics industry and environmental protection. The ultrafiltration technology has many advantages, it is often used as:

(1) desalination and concentration of macromolecular substances,
and exchange balance of macromolecule solvent systems.

(2) separation of macromolecules.

(3) de-pyrolysis of biochemical or other formulations.

5. Pictures Show

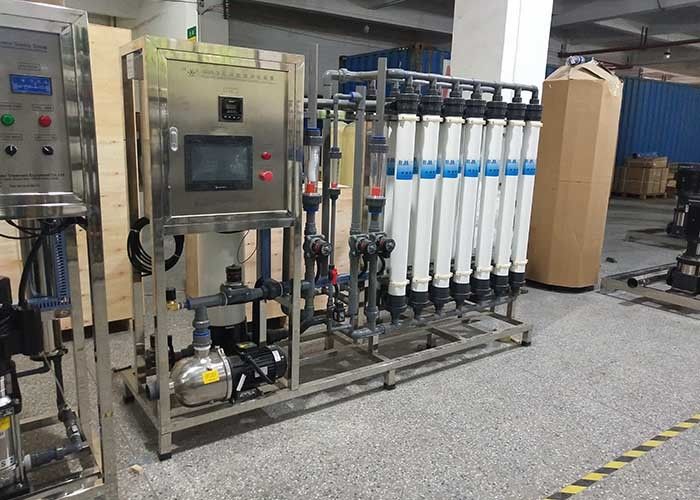

UFc90AL Membrane Water Filter System UV UF Water Purifier Equipment 1

Electric control system

1--General control cabinet: PLC program controller, air switch, AC contactors, thermal relays, lights, knob switches, pressure

switches, etc

2--10 inch PLC touch screen to achieve the convenient,automatic purpose.

Auto control valve

1--Sand filter valve model :automatic
Carbon filter valve model :automatic
2--Features:Back-washing,Fast rinse,operation

3--Which can set up the time to control the valve working time.

----For flushing filter 2-3 days by setting up the time,which can work automatically.

----Convenient,easy control,automatic.

Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)

Tag:

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-5000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month
