Natural Mineral Mountain Filter UF Water Treatment Equipment Auto Purifier System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3500LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
UF Membrane: UFc90AL Production Capacity: 3500liters Per Hour
Electrical Power: 220V / 380V 50Hz / 60Hz Tank Material: FRP / Stainless Steel
Control Valve: Automatic / Manual Pipe Fitting: SUS304 / U-PVC
Warranty: 1 Year Optional: Ozone/ UV / Water Softener
Prefiltering Tank: Glass Fiber / FRP
High Light:

Auto UF Water Treatment Equipment

,

3500LPH Ultrafiltration Membrane System


Product Description

Purifier System UF Water Treatment Equipment Purification Plant Natural Mineral Mountain Water Filter





1. Product Description



Ultrafiltration is a separation technique widely used.Mainly the use of polysulfone, microporous polyethersulfone ultrafiltration membranes (molecular weight cut thousands of ten thousands daltons) filter out impurities in the water can be removed more than 98% organic matter, to ensurethat the treated water is less than 1 SDI, the SDI value, the turbidity is very satisfactory.The pretreatment facilities are exempt large, does not need the coagulant, flocculation, comply with
environmental requirements.



2. Product Details



Parameters of 3.5TPH UF Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
FRP
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
FRP
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water softener
FRP
China
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
UF Membrane
UFc90AL
China
Remove impurities great than 0.001 micron.
Back-washing Pump
SUS-304
CNP
Flushing the UF membrane 40s when the machine operation.
UV Sterilizer
40W
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water



3.Product Processing



Raw water →raw water pump→ sand filter→carbon filter→water softener(optional)→security filter→ UF system→UVpure water tank







Main Features



1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.UF membrane can remove impurities greater than 0.001mircon

4.It can't remove the salty in the water, so Retain minerals in water. it is better for making mineral water

5.The cost of UF system is less than the ro system



5. Pictures Show

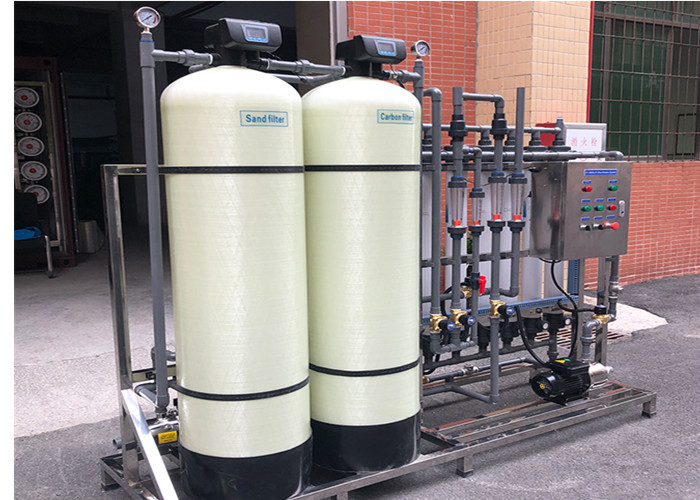

Natural Mineral Mountain Filter UF Water Treatment Equipment Auto Purifier System 0



Electric control system



1---PLC(Programmable Logic Controller):Design the program as requirements you need.

2---Air switch:protect the electric system

3---Auto controller which RO membrane can flush automatically.

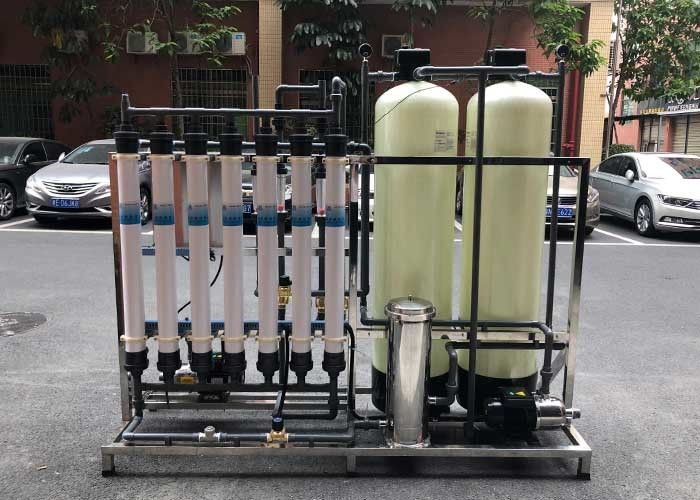

Natural Mineral Mountain Filter UF Water Treatment Equipment Auto Purifier System 1


Auto control valve

1--Sand filter valve model :automatic

Carbon filter valve model :automatic

2--Features:Back-washing,Fast rinse,operation

3--Which can set up the time to control the valve working time.

----For flushing filter 2-3 days by setting up the time,which can work automatically.

----Convenient,easy control,automatic.

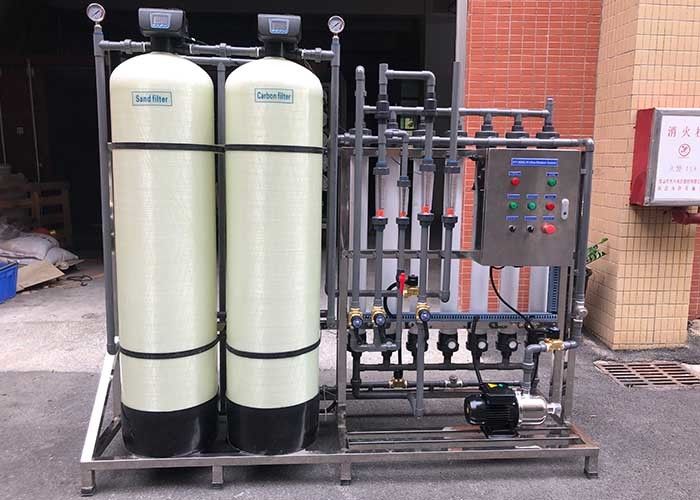

Natural Mineral Mountain Filter UF Water Treatment Equipment Auto Purifier System 2


Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
