Ultrafiltration Mineral Water Equipment UF Membrane Water Purification Plant

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-2000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
UF Membrane: UFc90AL Production Capacity: 2000liters Per Hour
Electrical Power: 220V / 380V 50Hz / 60Hz Tank Material: FRP / Stainless Steel
Control Valve: Automatic / Manual Pipe Fitting: SUS304 / U-PVC
Warranty: 1 Year Optional: Ozone/ UV / Water Softener
Prefiltering Tank: Glass Fiber / FRP
High Light:

Ultrafiltration Mineral Water Equipment

,

UF Membrane Mineral Water Equipment

,

UF Membrane Water Purification Plant


Product Description

2000LPH ultrafiltration mineral water making equipment membrane price





1. Product Description



Ultrafiltration is a separation technique widely used.Mainly the use of polysulfone, microporous polyethersulfone ultrafiltration membranes (molecular weight cut thousands of ten thousands daltons) filter out impurities in the water can be removed more than 98% organic matter, to ensure that the treated water is less than 1 SDI, the SDI value, the turbidity is very satisfactory.The pretreatment facilities are exempt large, does not need the coagulant, flocculation, comply with environmental requirements.



Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separationmethod without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic,bacterium,virus,colloid and non-ion suspended solid.



2. Product Details





Specificationfor 2000L/H UF system
Item

Material/Model
Brand
Function
Raw water pump
SS304
Domestic
Provide pressure for raw water
Quartz sand filter
FRP
Domestic
Remove large particule
Activated carbon filter
FRP
Domestic
Remove smell,color,bacterial and organic matter
Water softener
FRP
Domestic
Remove hardness,such as Ca2+,Mg2+
Security filter
PVC 1μm/5μm
Domestic
Block impurities greater than 5micron(1micron)
UF membrane
UF-90
Domestic
Remove impurities great than 0.001micron
Backwashing pump
SS304
CNP
Clean the UF membrane
UV sterilizer(Optional)
23w
Domestic
Kill 99% bacterial
(For drinking directly)
Ozone Generator(Optional)
3g/l
Domestic
Kill 99%bacterial and keep 2hours.(For making bottled water)





3.Product Processing



Raw water →raw water pump→ sand filter→carbon filter→water softener→security filter→ UF system→UVpure water tank

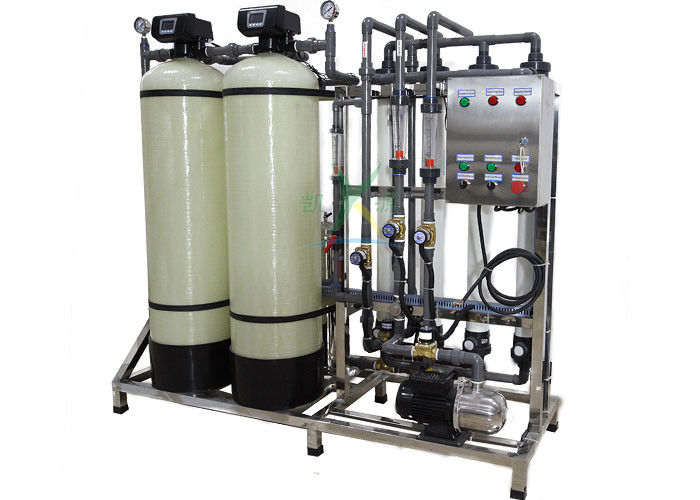

Ultrafiltration Mineral Water Equipment UF Membrane Water Purification Plant 0



Main Features



1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.UF membrane can remove impurities greater than 0.001mircon

4.It can't remove the salty in the water, so Retain minerals in water. it is better for making mineral water

5.The cost of UF system is less than the ro system



5. Pictures Show

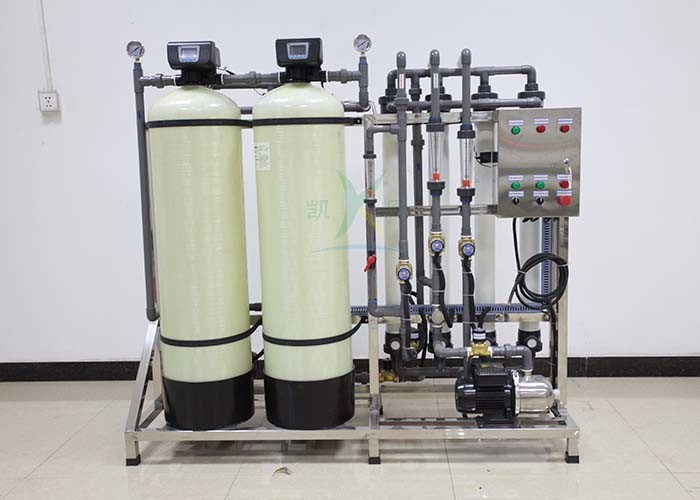

Ultrafiltration Mineral Water Equipment UF Membrane Water Purification Plant 1



Electric control system



1---PLC(Programmable Logic Controller):Design the program as requirements you need.

2---Air switch:protect the electric system

3---Auto controller which RO membrane can flush automatically.

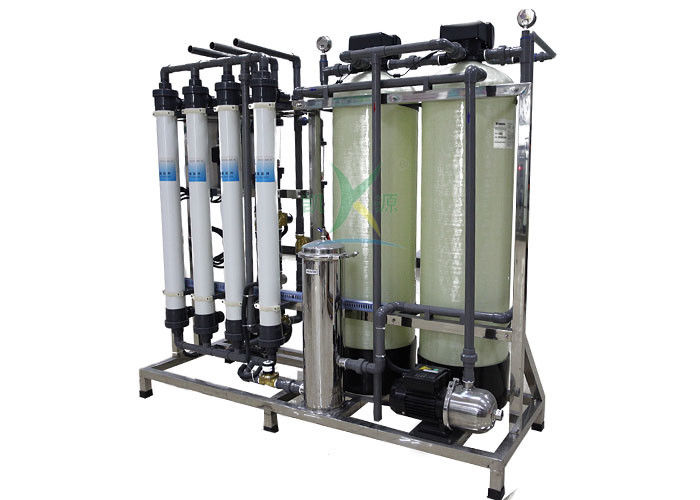

Ultrafiltration Mineral Water Equipment UF Membrane Water Purification Plant 2

UF membrane

Name: UF membrane
Brand:China

Filter aperture:0.01mircon
Service life: 2years



Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
