Name: 2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
Brand: Kaiyuan
SKU: KYRO-2000LPH

Detail Information

UF Membrane:	UFc90AL	Production Capacity:	2000liters Per Hour
Electrical Power:	220V / 380V 50Hz / 60Hz	Tank Material:	FRP / Stainless Steel
Control Valve:	Automatic / Manual	Pipe Fitting:	SUS304 / U-PVC
Warranty:	1 Year	Optional:	Ozone/ UV / Water Softener
Prefiltering Tank:	Glass Fiber / FRP
High Light:	FRP Purification UF Water Treatment Plant , 2000lph Ultrafiltration Membrane System , SGS Ultrafiltration Membrane System

Product Description

Purification UF Water Purification Plant Ultra Filtration Membrane Filter System

1. Product Description

Ultrafiltration is a separation technique widely used.Mainly the use of polysulfone, microporous polyethersulfone

ultrafiltration membranes (molecular weight cut thousands of ten thousands daltons) filter out impurities in the water

can be removed more than 98% organic matter, to ensure that the treated water is less than 1 SDI, the SDI value, the

turbidity is very satisfactory.The pretreatment facilities are exempt large, does not need the coagulant, flocculation, comply

with environmental requirements.

2. Product Details

kyro-2000lph Ion exchange equipment

Specificationfor 2000L/H UF system
Item	Material/Model	Brand	Function
Raw water pump	SS304	Domestic	Provide pressure for raw water
Quartz sand filter	FRP	Domestic	Remove large particule
Activated carbon filter	FRP	Domestic	Remove smell,color,bacterial and organic matter
Water softener	FRP	Domestic	Remove hardness,such as Ca2+,Mg2+
Security filter	PVC 1μm/5μm	Domestic	Block impurities greater than 5micron(1micron)
UF membrane	UF-90	Domestic	Remove impurities great than 0.001micron
Backwashing pump	SS304	CNP	Clean the UF membrane
UV sterilizer(Optional)	23w	Domestic	Kill 99% bacterial (For drinking directly)
Ozone Generator(Optional)	3g/l	Domestic	Kill 99%bacterial and keep 2hours.(For making bottled water)

3.Product Processing

Raw water →raw water pump→ sand filter→carbon filter→water softener→security filter→ UF system→UV→pure water tank

2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant 0

The main technical data

1). Turbidity(NTU):<0.5
2). Pollution index : <0.5
3). PH:2-12
4). Work pressure (Mpa):0.05-0.2
5). Work temperature(°C):10-45

Spare parts of this system

4. Application fields

1. Dairy, Fruit Juice, Vegetable Juice And Other Clear, Concentrated.

2. Animals And Plants (Aloe Vera, Mangosteen, Tea, Etc.) Effective Ingredients Extraction.

3. Soybean Protein, Oligosaccharides, Isoflavones And Other Extraction, Concentration.

4. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.

5. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.

6. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.

7. Fluorescent Whitening Agent Desalination, Concentration.

8. Electrophore Paint Recovery And Water Reuse.

9. Pva Of Textile Desizing Wastewater Reuse.

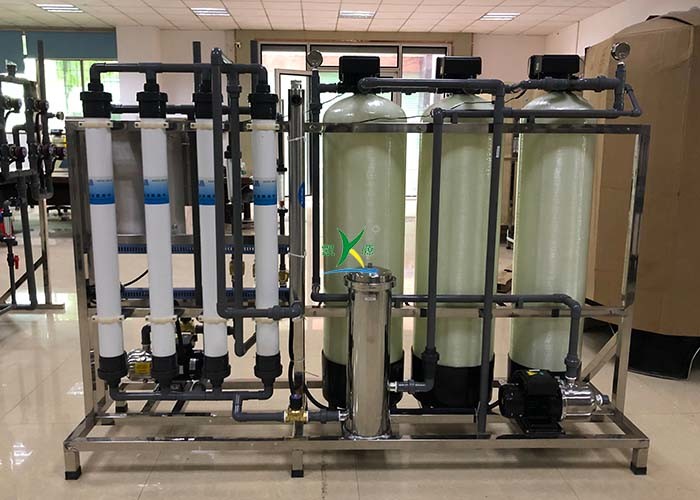

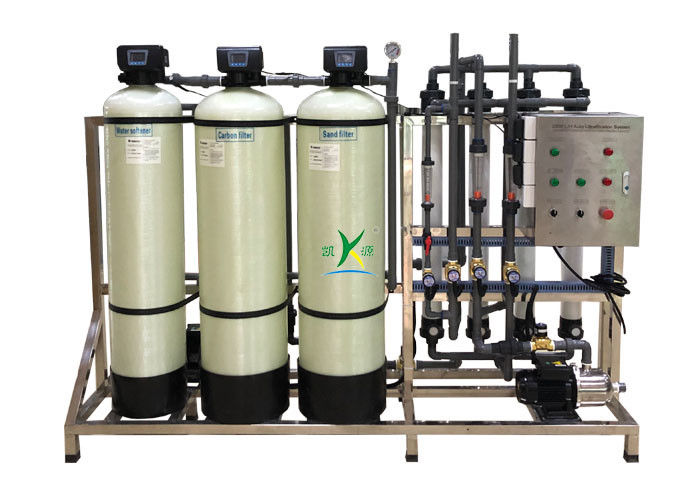

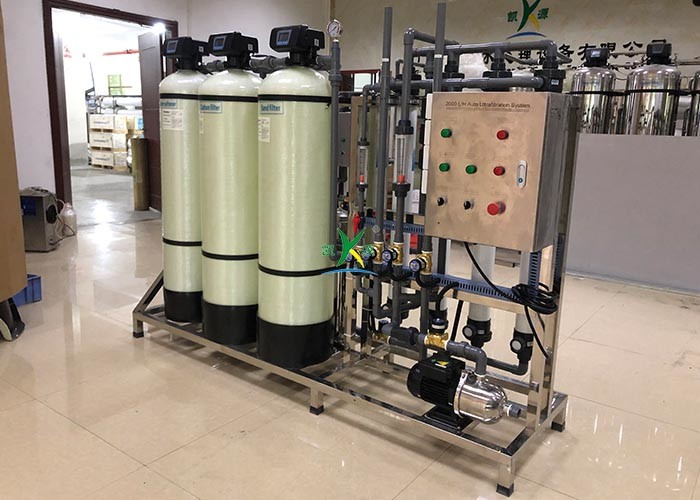

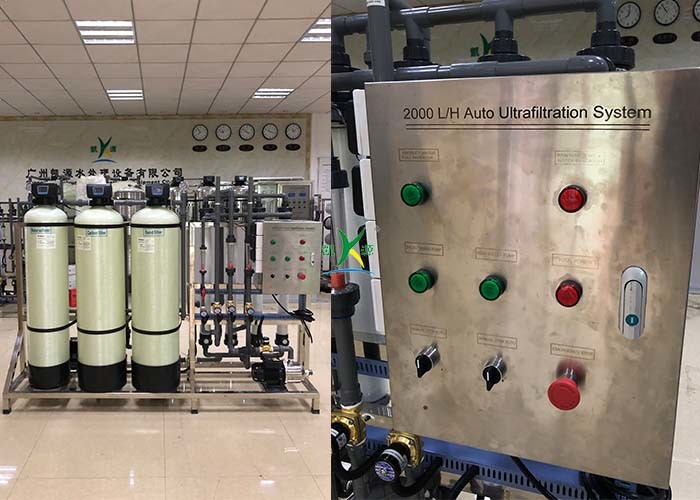

5. Pictures Show

2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant 1

Tag:

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-2000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month
