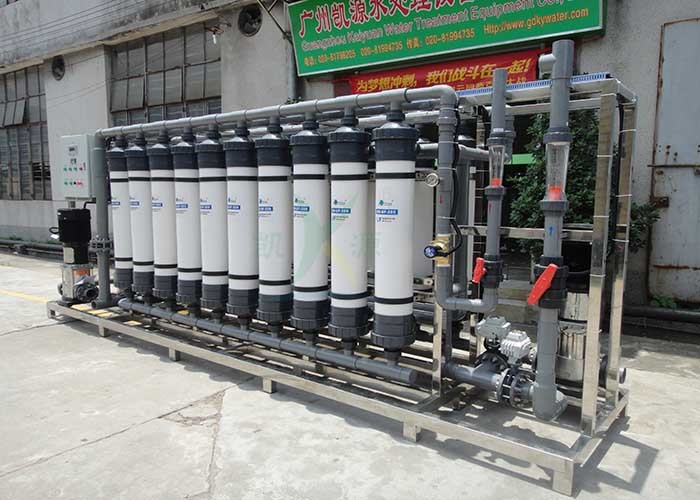

40TPH Ultrafiltration membrane Equipment /UF System Swimming Pool Water Purifier /Wastewater Treatment Mineral Water
What is Ultrafiltration system?
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable
membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for removal of bacteria and other microorganisms, particulate material, and natural organic material, which can impart color, tastes, and odors to the water and react with disinfectants to form disinfection byproducts (DBP). As advancements are made in membrane production and module design, capital and operating costs continue to decline.
Application :
1. Dairy, fruit juice, vegetable juice and other clear, concentrated.
2. Animals and plants (aloe vera, mangosteen, tea, etc.) effective ingredients extraction.
3. Soybean protein, oligosaccharides, isoflavones and other extraction, concentration.
4. Antibiotics, amino acids, VC and other fermentation broth purification, concentration.
5. Chinese medicine (Bupleurum, Salvia, Scutellaria, etc.) injection of active ingredients purification, separation.
6. Polysaccharides (Ganoderma lucidum, Grifola frondosa, mushrooms, etc.) material purification, concentration.
7. Fluorescent whitening agent desalination, concentration.
8. Electrophore paint recovery and water reuse.
9. PVA of textile desizing wastewater reuse.
Advantages of our ultrafiltration/UF system:
A. Advanced and famous ultrafiltration membrane element
B. High recovery rate of the system
C. No phase transformation in the process
D. Low energy consumption, short production cycle and low equipment operation
E. Small area, simple operation and maintenance, low labor intensity
F. The hygienic of the site is clean
G. The control system can be designed according to the user's specific requirements
|
Working process of UF Purification System:
Raw water→ Raw water tanks(buyer supply) →Raw water pumps →Disc filter→ Activated carbon filter →5μm security filter→Ultrafiltration device → Pure water tank(buyer supply) →Water supply point
|
|
Some parts function for your reference as below^^:
|
|
STEP<1>. Disc Filter: replace the quartz sand filter(slim save more shipping cost and have long life >15years). Some big suspended solids like coolloids, rust, mud, imparity etc can be trapped by media bed. and be removed from water.
|
|
STEP<2>. Carbon Filter: can absorb some organism, dissolved air, odor & color matter etc.
|
|
STEP<3>. Softener(optional): use cation exchange resin to remove Calcium, Magnesium etc to make soft water.
|
|
STEP<4>. Micron PP Filter: use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment. so that more safty for entrance of UF membrane.
|
|
STEP<5>.UF membrane: remove particles, colloids, organic impurities, bacteria, heat source etc. harmful substances
|
|
STEP<6>.UV sterilizer(ozone generator): for killing bacterial in water, be safe for drinking.
|
We can provite UF system: 1000LPH~200TPH^^
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
