3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 12-20working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: 3000LPH Reclaimed Water Reuse Equipment Electrical Power: Standard 380V 50Hz 3Phase (customize)
Production Capacity: 3TPH Tank Material: FRP
Application: Pure / Industrial / Drinking/Boiler Water Pretreatment: Sand / Carbon / Resin / Filter Cartridge
Desalination Rate: >=97% Control Valve: Automatic / Manual
Pump: CNP, Grundfos Optional Membrane: RO: DOW/ UF: UFc90AL
High Light:

3000LPH Brackish Water RO System

,

Reclaimed Brackish Water RO System


Product Description

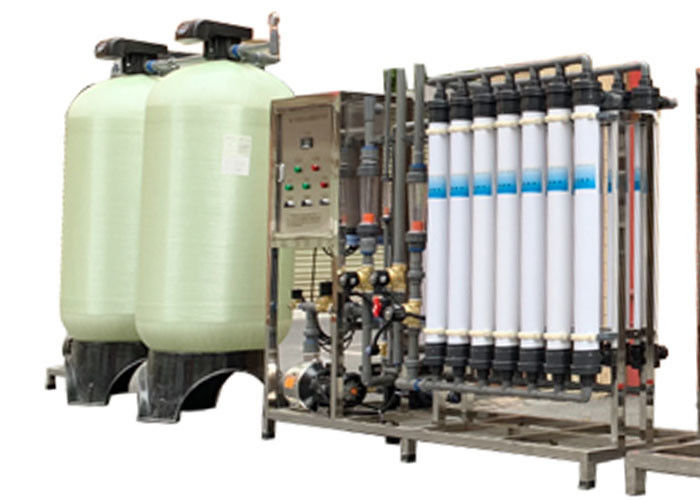

3000LPH Waste water Treatment Reclaimed Water Reuse Equipment Brackish Water RO System



Kaiyuan water treatment---

12 years of industry experience manufacturing

with high quality, delivery time, service guarantee!!!



3 tons/H well water, groundwater reuse ultrafiltration equipment, industrial sewage and wastewater treatment equipment



Name

RO / UF system

Voltage

220V/ 380V

Size

2000*900*1800mm

Power

1.5KW

Macterial

FRP tank+ PVC pipe

Recovery rate

90%

Function

raw water purifier

Water production

3T/H

Application

Industrial of electricity, electronics, food, beverage, pharmacy, chemistry; drinking water project, petrochemical industry, seawater desalination

Effect

SDI≤1, turbidity NTU≤1, SS<1mg/L, removal rate of microorganisms, bacteria, E. coli, pathogens >99%



Humans cannot do without water!
According to statistics, due to high pollution, the salt content in many countries is high, and heavy metals in some areas even exceed the standard, which directly affects human life and health and industrial economic development.





RO reverse osmosis system
Kaiyuan reverse osmosis water treatment equipment uses pretreatment devices (quartz sand, activated carbon, water softener, security filter), with RO reverse osmosis system multiple filtration and separation of water ion technology, the salt removal rate can reach more than 97%





Process

Raw water raw water tank(user supply)→ raw water pump→quartz sand filter →activated carbon filter→UF system→security filter→high pressure pump→ro system→pure water tank(user supply) + water supply point



Main parts function

1. Raw water pump

-- provide the pressure to sand/carbon filter

2. Sand filter

-- get rid of turbidity, suspended matter, organic matter, colloid and so on

3. Carbon filter

--Remove color, free chloride, organic matter, harmful matter and so on

4. Anti-scale dosing

--add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.

5. Micron filter

--prevent any deposition of large particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

6. High pressure pump

-- Provide the high pressure to RO membrane, at least 2.0 MPA

7. RO system

--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica.





3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment 0

3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment 1

This ro plant uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment 2

UF ultrafiltration system: Effectively remove harmful substances such as sediment, bacteria, colloids, macromolecular organic matter, etc., to ensure minerals and trace elements that are beneficial to humans.

3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment 3

3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment 4

3000LPH Brackish Water RO System Reclaimed Water Reuse Equipment 5



Thank you so much for your value time.Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours. Whatsapp/ wechat/ tell: +86 13660858152



How to choose a suitable RO system?

1)- First you need to tell us what your raw water source is.

2)- It is best to provide a raw water quality report

3)- What kind of water quality requirements you want to achieve.

4)- And How much litre you need for this RO equipment.

5)- Any question you don't understand, you can always consult us and we have a team of excellent engineers.

6)- More Than 90% Of Our RO Pure Water Equipment Is Customized.
6.1,We can design the machines according your requirements, like materil, power and so on. At the same time, our engineers will give you our professional suggestions, as you know, we have been in this industry more than 20 years.
6.2,We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.


Tag: RO Water Treatment System, RO Water Plant, Brackish water system
