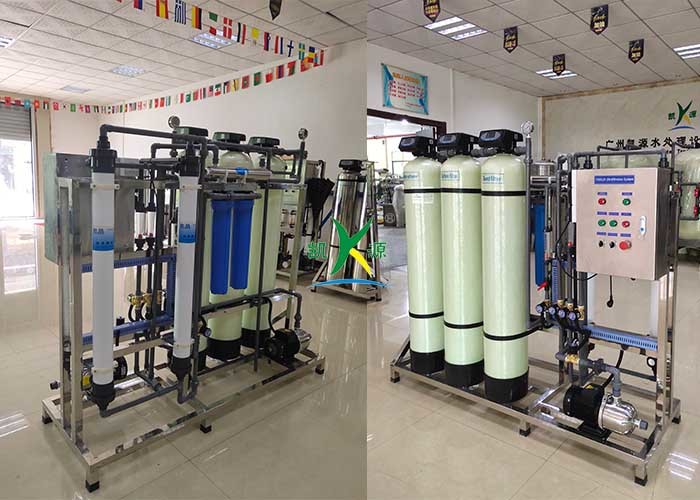

1000L Ultrafiltration Membrane System For Solids Turbidity Bacteria Removal

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: UF System Production Capacity: 1000liters Per Hour
Application: Water Purifier Electrical Power: 220V / 380V 50Hz / 60Hz
Tank Material: FRP Control Valve: Automatic
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
High Light:

1000L Ultrafiltration Membrane System


U PVC Ultrafiltration Membrane System

Product Description

UF System For Remove Suspended Solids, Turbidity, Bacteria And Viruses From Water


UF System 1000LPH

Ultrafiltration systems that are designed to reliably remove suspended solids, turbidity, bacteria, pathogens and viruses from water. These systems are made to be economical, compact, and capable of allowing decreased plugging, and greater solids loading. The UF membranes ensure maximum filtration performance with high flux, including the system's resistance to chemicals and high tolerance to changing temperatures.



How Ultrafiltration (UF) Systems Work?

Ultrafiltration (UF) systems have diverse membrane filtrations where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.

Industry and research employ this separation process for purifying and concentrating macromolecular (103 - 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.

To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multimedia water filtration. Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.

What is ultrafiltration in water treatment?

Ultrafiltration systems utilize hollow membrane fibers to eliminate suspended solids, bacteria, viruses, and pathogens from the feed water. Pumps send the treated water through microscopic pores, which act as a physical barrier that only allows filtrates to pass through them. Ultrafiltration strainers are used next to remove solids such as weeds and plastics from the filtered water before it enters the UF system. Ultrafiltration plants have been extremely useful in water and wastewater treatment by continuously providing excellent results. After UF treatment, the water can be sent to a reverse osmosis system for further purification or can be used supplied for immediate public usage.

Ultrafiltration (UF) Systems Advantages

Ultrafiltration (UF) membranes systems are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.

♦Superior filtration performance with high flux
♦Very small nominal pore diameter (0.03 µm)
♦Efficiently removes bacteria and viruses
♦Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life
♦Low fouling membrane modules
♦UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading
♦Basic, vertical, modular design permits low cost, compact systems
♦Effective membrane cleaning has a high chemical resistance and temperature tolerance

1000L Ultrafiltration Membrane System For Solids Turbidity Bacteria Removal 0
1000L Ultrafiltration Membrane System For Solids Turbidity Bacteria Removal 1
1000L Ultrafiltration Membrane System For Solids Turbidity Bacteria Removal 2
1000L Ultrafiltration Membrane System For Solids Turbidity Bacteria Removal 3
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
