4000LPD 9KW 30000 ppm RO Seawater Desalination System

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-4000LPD
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Seawater Desalination System Production Capacity: 4000LPD
Pipe Fitting: U-PVC Size: 700x700x1500MM
Feed Water TDS: <35000mg/L Desalination Rate: 98%
Input Water TDS: 30000ppm Power(KW): 9KW
High Light:

9KW Seawater Desalination System

,

30000 ppm Seawater Desalination System


Product Description

Reverse Osmosis Sea Water Purification System , Seawater Desalination Plant








Sea Water Purification System Performance:

*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
*High efficient and low noise high pressure pump.
*Product water conductivity meter to monitor product water quality all the time.



Reverse Osmosis:

Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.

RO reverse osmosis system is the most economical and high efficient purification method.
Desalination rate ≥99% , 99% organic and bacteria can be removed;
Treated water under good electronic conductivity, one stage ≤10u s/cm, two stage around 2~3u s/cm, EDI≤0.5u s/cm(based on raw water ≤300 u s/cm.


Outside technology parameter
Flow rate 3m3 Recovery rate ≧45%
Electricity Ac 440v/3ph/60hz/50HZ Power(KW) 9KW
Input water TDS 4000LPD 9KW 30000 ppm RO Seawater Desalination System 030000ppm Output water TDS ≦600ppm
Pressure 1000psi Temperature 5-45℃
Input water turbidity ≦1NTU Input water PH Medium
demarcation of the design within 1 meter from the raw water pump input water to pure water tank output













Sea Water Purification System Details:



1. Pretreatment system generally includes the original water pump, dosing system, quartz sand filter, activated carbon filter, precision filter ,and so on. Its main function is to reduce the raw water pollution index and residual chlorine and other impurities, to achieve the reverse osmosis water requirements.Pretreatment equipment configuration of the system should according to the specific situation of the raw water.



2. Reverse osmosis unit includes multistage high-pressure pump, reverse osmosis membrane element, membrane shell (pressure vessel), support, etc.



Its main role is to remove the impurities in the water, the water meets the requirement.



3. Post-processing system is in the case of reverse osmosis can not meet the requirement of the water increases the configuration. Mainly includes the Yin bed, sun , sterilization, ultrafiltration of the mixed bed, EDI, etc. One or more of these equipment. Post-processing system can reverse osmosis water.Better improve water quality, to meet the use requirement.



4. Cleaning system cleaning tank, cleaning pump, main precision of filter. When the pollution of water reverse osmosis system Index cannot meet the requirements, the need for cleaning of reverse osmosis recovery effect.



5. Electrical control system is used to control the normal operation of the reverse osmosis system. Include instrument panel, control panel, all kinds of electricity.Protection, electrical control cabinet and so on.




Seawater Desalination System Consumable items:


There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month.
e. Ro membrane: replaced about every 2 year.
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

Seawater Desalination System Optional Components:

A. Regulating wheels

B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator


Some parts function:


1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Antiscalant system: (It is recommended to add H2SO4 to adjust the pH value to avoid CaCO3 precipitation and reduce seawater desalination membrane fouling---cost-effective and no side-effect)
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;



Function of each part of water treatment plant
1.feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump-- Provide the high pressure to RO membrane
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator--- kill bacteria



We are using high quality accessories, parts and equipments





Feature and advantages:

1.System can produce water continuously and high degree automation.

2.No need chemical to regenerate, easy operation and maintenance.

3.Core components of ro system are imported USA membranes.

4.Automatic switch on when low water level, and switch off when high water level

5.System flushes RO membranes automatically, reducing membranes polluted speed.

6.Water shortage protection for multi-stage pump

7.Product water conductivity meter can monitor water quality online continuously.

8.Low operation cost and long life span

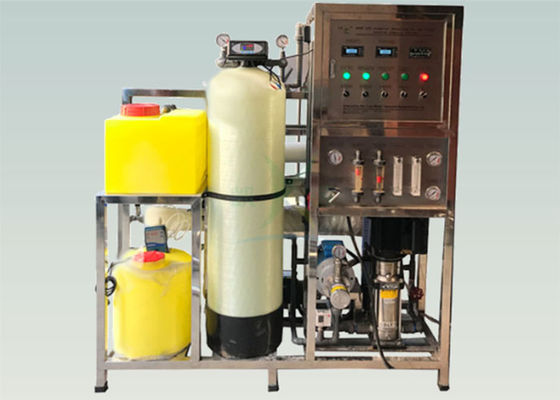

Seawater Desalination System Photos:

4000LPD 9KW 30000 ppm RO Seawater Desalination System 14000LPD 9KW 30000 ppm RO Seawater Desalination System 2
