High Salinity Seawater Desalination System For Electronic Industry 2000LPD

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-2000LPD
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Seawater Desalination System Production Capacity: 2000liters Per Day
Recovery Rate: 30%-35% Application: Electronic Industry
Tank Material: FRP/ Carbon Steel Control Valve: Automatic/ Manual
Pipe Fitting: U-PVC Warranty: 1 Year
Size: 700x700x1500MM Weight: 200KG
Feed Water TDS: <35000mg/L Desalination Rate: 98%
High Light:

seawater reverse osmosis system

,

reverse osmosis desalination system


Product Description

High Salinity Seawater Desalination System For Electronic Industry 200LPD

Seawater Desalination System summarize:

The desalination of seawater can be carried out by the following process
Membrane separation and desalination/Membrane separation includes two processes:
(1) Reverse Osmosis process
Penetration is a natural phenomenon. The water in the lower concentration of the solution passes through the semi permeable membrane into the higher concentration solution until equilibrium is reached; the reverse osmosis is the use of sufficient pressure to allow the solution (usually water) in the solution to pass through the reverse osmosis membrane A semi permeable membrane) and the direction of the opposite direction of infiltration.
(2) Electro dialysis
Electro dialysis is the use of the characteristics of the current to attract the dissolved ions. When the current is introduced into the salt solution, the salt ions tend to adsorb on the opposite polarity of the electrode. Electro dialysis is specifically used for desalination of beach water. Heat treatment process is to simulate the natural circulation, the water heated to produce steam, and then through the condensation, as the product water (desalination water)

Seawater Desalination System Details

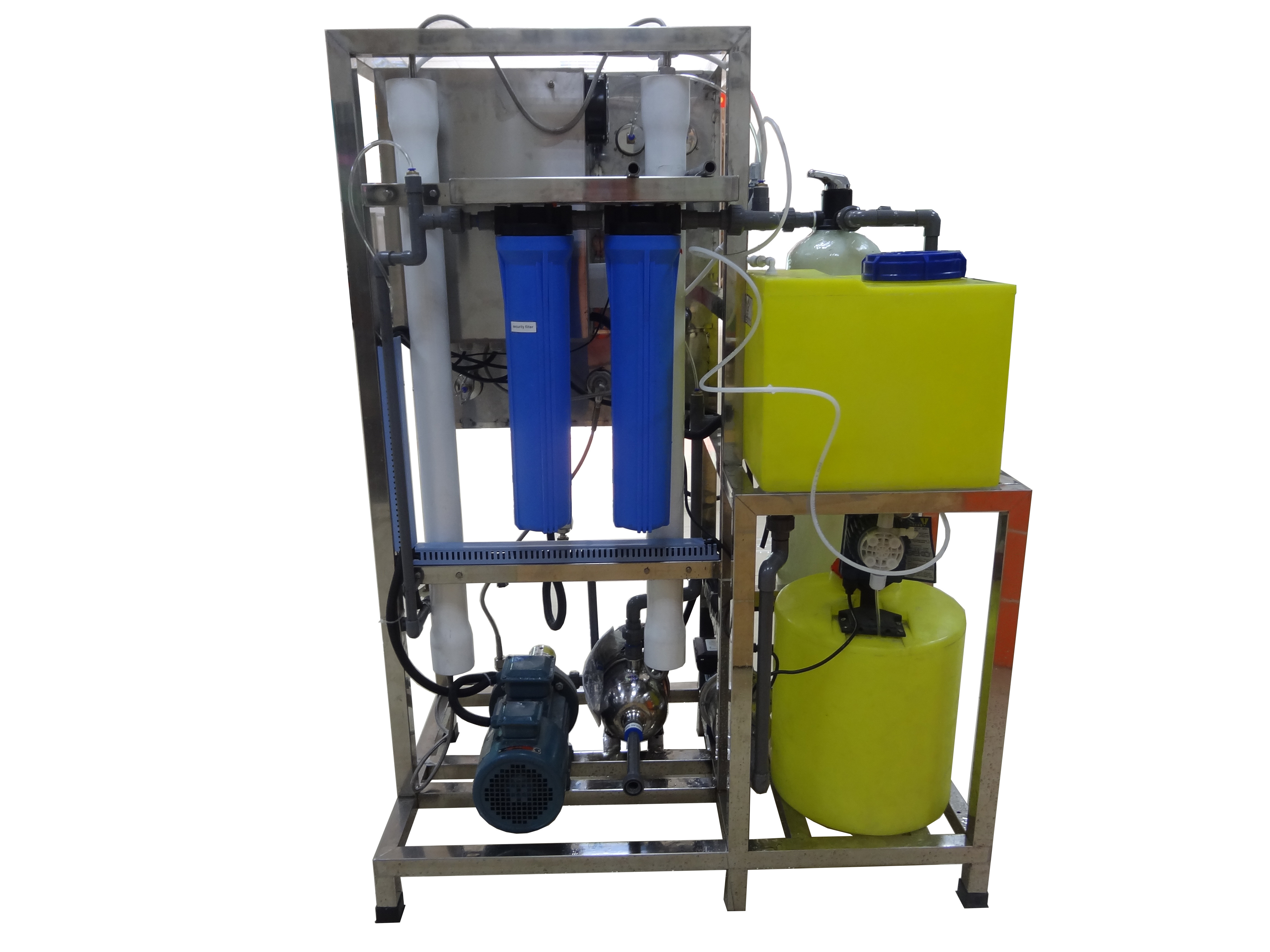

KYRO-2000LPD Seawater Desalination System:

1. Capacity: 2000LPD
2. Rated power: 2.0KW/H
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
4. Desalting rate:>=98%
5. Water recovery rate: 30-35%
6. TDS of raw water: ≤35000PPM
7. TDS of pure water: ≤750PPM


Seawater Desalination System Performance:

*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
*High efficient and low noise high pressure pump.
*Product water conductivity meter to monitor product water quality all the time.
*Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
*Inlet water solenoid valve to stop water when machine is stop.

Seawater Desalination System Consumable items:

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month.
e. Ro membrane: replaced about every 2 year.
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

Seawater Desalination System Optional Components:

A. Regulating wheels

B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank


Seawater Desalination System Processing

Process: raw water tank + raw water pump + quartz sand filter + antiscalant system + chemical dosing system+ 1#security filter + 2#
security filter + ro system + pure water tank + UV sterilizer(ozone generator) + water supply point

High Salinity Seawater Desalination System For Electronic Industry 2000LPD 0

Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. A
ntiscalant system: (It is recommended to add H2SO4 to adjust the pH value to avoid CaCO3 precipitation and reduce seawater desalination membrane fouling---cost-effective and no side-effect)
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. UV sterilizer: can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

Seawater Desalination System Application:

Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

**Textile, chemical industry, process water / chemical recycled water, chemical products manufacturing purification and preparation of water ;
**Food and beverage industrial water, purified drinking water, beverages, beer, liquor, health care products such as water purification and preparation of water;
**Seawater, brackish water desalination islands, ships, offshore drilling platforms, brackish water areas
**Larger community, real estate property, schools, factories, hospitals, and the restaurants, hotels, beauty salons, canteens and other various types of enterprises and institutions.
**Integrated circuits, silicon wafers, display tubes and other electronic components of electronic industrial water rinse water
**Can be used for filling water bottled water, mineral water and other preparation work

Seawater Desalination System Details

High Salinity Seawater Desalination System For Electronic Industry 2000LPD 1

Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc...into domestic water, irrigation, direct drinking or bottle drinking(pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc...
