|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|RO Membrane:||USA DOW||Production Capacity:||100liters Per Hour|
|Type:||Seawater Desalination Machine||Electrical Power:||220/380V 50/60Hz|
|Pipe Fitting:||SUS304/ U-PVC||Name:||Reverse Osmosis Water Filtration System|
|Feed Water TDS:||<35000mg/L||Desalination Rate:||98%|
seawater reverse osmosis system,
reverse osmosis desalination system

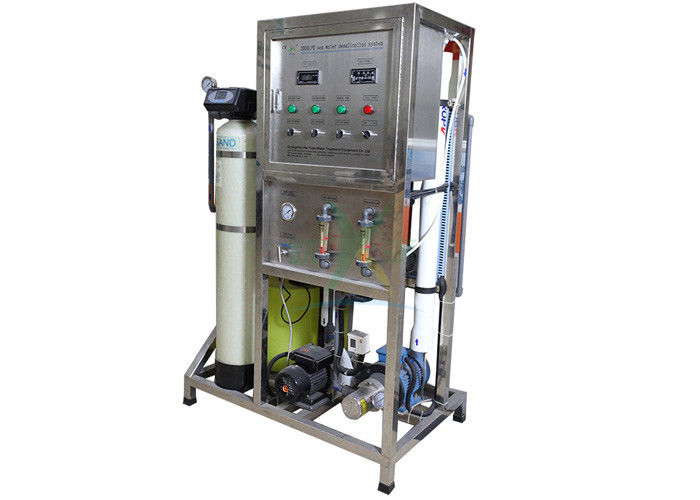

RO Seawater Desalination Machine , Reverse Osmosis Water Filtration System
The basic working principle of reverse osmosis
1. Using a special high-pressure water pump, the raw water is added to a pressure of 6-20 kg, so that the raw water permeates through the reverse osmosis membrane with a pore diameter of only 0.0001 μm under the action of pressure.
2, Chemical ions and bacteria, fungi, virions can not pass, with the discharge of wastewater, only allow water molecules and solvents less than 0.0001 microns to pass.
3. The security filter is equipped with a filter element with a filter aperture of 5μm. These filters filter out any particles larger than 5μm.
4. The more common type of permeable membrane is a polyamide membrane, and the membrane type is a wound composite membrane. The membrane has a salt removal rate of 99.5%.
Seawater Desalination Machine Details
kyro-2000lpd Seawater Desalination Machine :
|1. Capacity: 100L/H|
|2. Rated power: 2.0KW/H|
|3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase|
|4. Desalting rate:>=98%|
|5. Water recovery rate: 30-35%|
|6. TDS of raw water: ≤35000PPM|
|7. TDS of pure water: ≤750PPM|
Seawater Desalination Machine Capacity
|Model||Capacity||Recovery Rate||Desalination||Output power||Membrane Brand||RO Rack Size (mm)|
Seawater Desalination Machine Performance:
*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
Seawater Desalination Machine Component:
There are several kinds of consumables you need to replace regularly. (for 500LPH)
a. Quartz sand: replaced about every 15 months. 50kg/bag,100kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 25kg/set
c. Resin: replaced about every 15 months. 25L/bag, 50L/set
d. PP Filter cartridge: replaced about every 1 month. 2pcs/set
e. Ro membrane: replaced about every 2 year. 2pcs/set
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
Some parts function:
1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...
Seawater Desalination Machine Application:
Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
Seawater Desalination Machine Details
Any interests & any questions just feel free to buzz me anytime^-^
