|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Items Name:||380V 1000LPH Ultrafiltration Membrane System||Production Capacity:||1000liters Per Hour|
|Electrical Power:||220V / 380V 50Hz / 60Hz||Tank Material:||FRP / Stainless Steel|
|Control Valve:||Automatic / Manual||Pipe Fitting:||SUS304 / U-PVC|
|Warranty:||1 Year||Optional:||Ozone/ UV / Water Softener|
|Prefiltering Tank:||Glass Fiber / FRP|
water purification systems,
membrane filtration water treatment

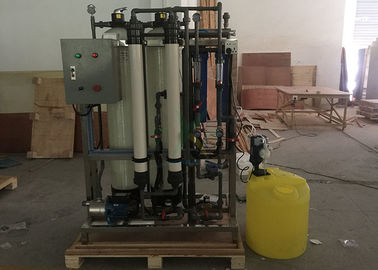

380V 1000LPH Ultrafiltration Membrane System FRP / SS304 Ro Plant For Commercial Use
Ultra-filtration (UF) is a membrane separation technology that purifies and separates solutions. The ultrafiltration membrane system is a solution separation device in which an ultrafiltration membrane is as a filter medium and a pressure difference on both sides of the membrane is a driving force. The ultrafiltration membrane only allows the solvent (such as water molecules), inorganic salts and small molecular organic substances in the solution to pass through, and the macromolecular substances such as suspended matter, colloid, protein and microorganisms in the solution are intercepted, thereby purifying or separating.
Ultrafiltration (UF) Systems Advantages
Ultrafiltration (UF) membranes systems are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.
- Superior filtration performance with high flux
- Very small nominal pore diameter (0.03 µm)
- Efficiently removes bacteria and viruses
- Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life
- Low fouling membrane modules
- UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading
- Basic, vertical, modular design permits low cost, compact systems
- Effective membrane cleaning has a high chemical resistance and temperature tolerance
Ultrafiltration (UF) Systems Features
♦Polyethersulfone material, higher mechanical strength, excellent performance for chemical tolerance.
♦Single inner layer sponge-type structure, higher permeate flux, better interception performance
♦Permanent hydrophilicity, lower deep fouling, steady flux, easier recovery after cleaning
♦Thicker membrane separation layer, better antifouling performance, higher mechanical strength
Application of UF Waste Water Treatment Plant:
The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :
1. Surface Water Clarification
2. RO System Pre-Treatment
3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one .
UF System Configuration:
UF Membrane module
Valves & Meters
Pipes and Fitting
304 stainless Skid Frame
Raw water pump
How to choose the machine are suitable for you?
Pls let us know:
1,what's your capacity?
2,what's your inlet water and request for output water.
3,Do you have specification requestment for brand and material?
