|Place of Origin:||Guangzhou, China|
|Brand Name:||Kai Yuan|
|Certification:||CE, ISO, ect.|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden case and carton ect.|
|Delivery Time:||15-20 working days|
|Payment Terms:||T/T, Western Union, L/C, MoneyGram.Cash|
|Material:||FRP(Fiberglass) With U-PVC And SUS-304||Color:||As Photos Showed Or Customized|
|Desalination Rate:||No Less Than 97%||Function:||Remove TDS/TSS All Kinds Of Impurities|
|Capacities:||From 500lph To 50000lph||Recovery Rate:||About 75%|
|Membranes Brand:||USA DUPONT/China VONTRON/Japanese Toray||Pumps:||China CNP/ European Brands|
|Motor:||CNP Or SIEMENS Ect.||Control Panel:||PC Or PLC|
|Frequency Inverter:||Mitsubishi/EASY||Feed Water:||Underground Or River Ect.|
|Warranty:||1 Year||After Service:||Online Support And Free Spare Parts|
1000L/H RO Water Treatment System,
PLC RO Water Treatment System,
Industrial Reverse Osmosis Purification Plant
Reverse osmosis (RO)system is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules, larger particles and colloid, organic impurity, heavy metal ion from drinking water.
Reverse osmosis system can remove many types of dissolved and suspended chemical species as well as biological ones (principally bacteria) from water, it is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium, is used in both industrial processes and the production of potable water.
These are guidelines for getting a proper quotation:
1000L/H reverse osmosis with water softener system specification.
|1.Electricity Supply||220v-440v, 50hz/60hz|
|2.Membranes Brand||USA DUPONT, CHINA VONTRON, JAPANESE TORAY|
|5.Control||PC or SIEMENS PLC program control|
|6.Desalination rate||More than 97%|
|7.Recovery rate||at less 50%|
|8.Material||FRP(Fiberglass) with U-PVC, Stainless steel|
The whole system process: raw water tank(prepared by buyer)→ raw water pump→quartz sand filter→activated carbon filter→water softener→security filter→high pressure pump→RO system →UV→pure water tank(prepared by buyer)
Features and advantages of the RO system:
1.The system can produce water continuously, fully automatic.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of RO system are CNP pump and Vontron RO membranes.
4.Automatically switch on when low water level in pure water tank, and switch off when high water level in raw water tank.
5.The system will flush RO membranes automatically about 90s, reducing membranes polluted speed.
6.Water shortage protection and low pressure protection switch for pumps.
7.Conductivity monitor will detect water quality online continuously and show data.
8.Water flow meters, pressure gauges, solenoid valves, regulating control valves, control panel are applied in the whole system.
9. RO controller makes whole RO system operating automatically.
10.Easily control and maintenance.
2. Detail Image

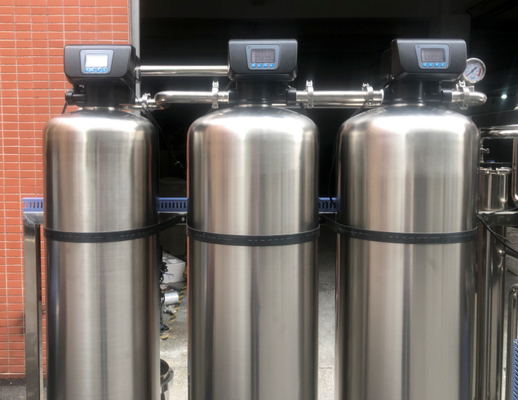

1--The quartz sand filter: to remove the suspend solid and reduce the turbidity of outlet water .
2--The activated carbon filter: to remove color, odor, residual chlorine from the raw water.
3--Water Softener (optional): to remove Calcium ion (Ca2+) and magnesium ion(Mg2+) to remove hardness.
Automatic control valve: It can automatically complete the fast rinsing and backwashing of filter materials, and then automatically turn to filter (normal operation) by setting the time on the program
Water Pumps---Raw Water Pumps, CIP washing pumps and High Pressure Pumps:
2.Material: Can be SUS-304 for fresh water purification, or SUS-316 for salty/brackish water desalination.
3.Name and Function: Raw water pump to provide pressure for pre-treatment part, High pressure pump to provide pressure for RO membranes, CIP Washing pump for membranes maintenance.
PC panel--Anti-rusty Steel material control box
1--Company name and logo design: customize as your requirements;
2--Conductivity meter: display the conductivity of pure water
3--Flow meter : display dense water and pure water flow.
4--Pressure meter: display inlet and outlet pressure of water inlet RO system.
The inner electricity side, we have frequency inverter(if necessary), AC contactors, Thermal relay, Fuse box, Air switch, Indicator light, Knob switch, Power switch, Intermediate relay, Sound and light alarm, electrical miscellaneous items, etc. But if you want PLC control box, please check details as followed.
The service life of RO membrane is about 2 years.
It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.
Optional membrane brand : DuPont&Toray & HYDECANME & Vontron ...
|The normal package is wooden case (Size: L*W*H). we will pack it according to customers special request.|
4. Company Information
Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd
With professional experience in manufacture of reverse osmosis (RO) system, seawater desalination plant, Ultra-filtration (UF) system, EDI water purification system etc.
