Home > Products> RO Water Treatment System> 1000 liter / H 25um 5um 1um PP Filter Water Treatment Plant Water Purifier With Pump Carbon Filter RO Membrane UV

1000 liter / H 25um 5um 1um PP Filter Water Treatment Plant Water Purifier With Pump Carbon Filter RO Membrane UV

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-1000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month

Get Best Price Contact Now

Detail Information

Name:	1000LPH Water Purifier	Production Capacity:	1000liters Per Hour
Recovery Rate:	50%-75%	Electrical Power:	380V 50Hz 3Phase
Operating Temperature:	5°C - 39°C	Control Valve:	Automatic / Manual
Pipe Fitting:	SUS316 /SUS304/ U-PVC Optional	Pump:	CNP/ Grundfos
Blue Filter:	20" Carbon/ 25um/ 5um/ 1um	RO Membrane:	DOW FILMTEC LCLE-4040
High Light:	1um PP Filter Water Treatment Plant , 1000 Liter / H Water Treatment Plant , Membrane UV RO Water Treatment System

Product Description

Customized 1000LPH water purifier 25um/5um/1um PP filter

water treatment plant with pump carbon filter RO membrane UV

Kaiyuan supports customized products, OEM/ODM is also professiona

Reverse osmosis systems, with the most general definition, is removal process of the anion and cation ions by an advanced filtration method which the highest technologies are used as a water treatment system. Water is forced to pass from semi-permeable membranes by applying high pressure. Water cross flows from the surface to the center of the membrane. During this transition, organic and inorganic substances, heavy metals, projects veins, bacteria etc. in the structure of the water retains by the membrane and discharges from the concentrate line. 95% to 99% Purified water can be collected to a tank through permate line. System autoflush before the production starts in order to clean the surface of the membrane.

Product Parameter

KYRO-1000LPH RO Water Purifier Machine

1. Capacity: 1000L/H

2. Rated power: 2.5KW/H

3. Voltage: 220V/380V, 50Hz/60Hz, 1ph/3ph

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. Conductivity of raw water: ≤400μS/cm

7. Conductivity of pure water: ≤10μS/cm

8. Blue filter: carbon/ 25um/ 5um/ 1um PP

System Advantages

⇔Auto stop when no water and full water.

⇔Auto start when pure water tank have no water.

⇔High efficient and low noise high pressure pump.

⇔Inlet water solenoid valve to stop water when machine is stop.

⇔Auto controller, RO membrane auto flush to protect membrane.

⇔Main part (membrane) of reverse osmosis system is imported from USA.

⇔Product water conductivity meter to monitor product water quality all the time.

⇔Low pressure protection switch to protect high pressure pump when there is no raw water.

⇔Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.

Product Processing

Raw water tank(user supply)→ raw water pump→activated carbon filter→25um PP filter→5um PP filter→1um PP filter→high pressure pump→ ro system→pure water tank(user supply)+UV sterilizer(Ozone generator)+water supply point

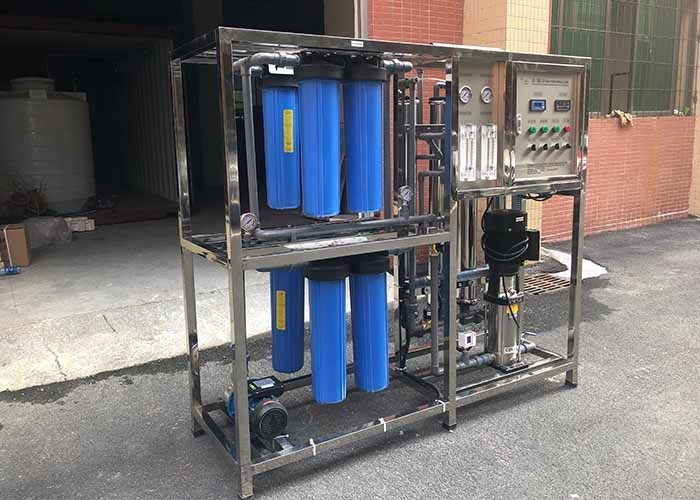

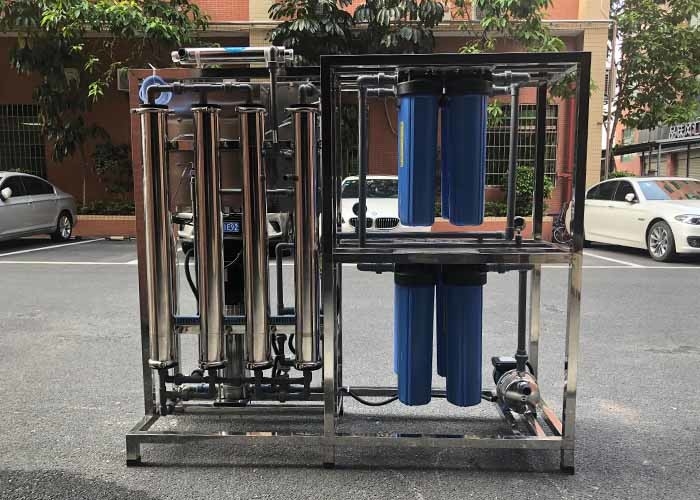

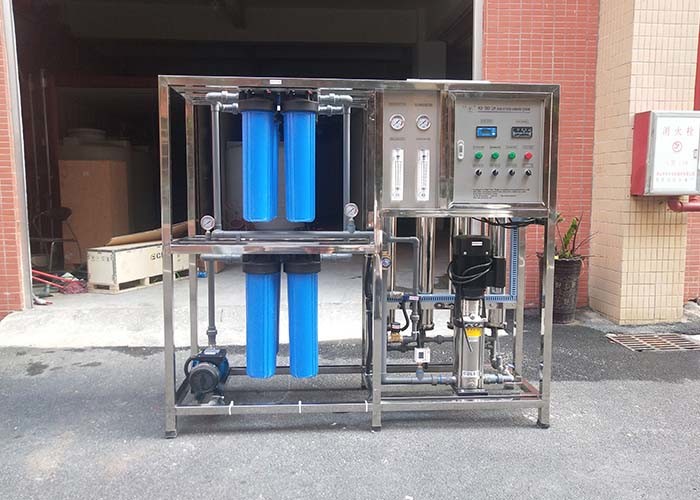

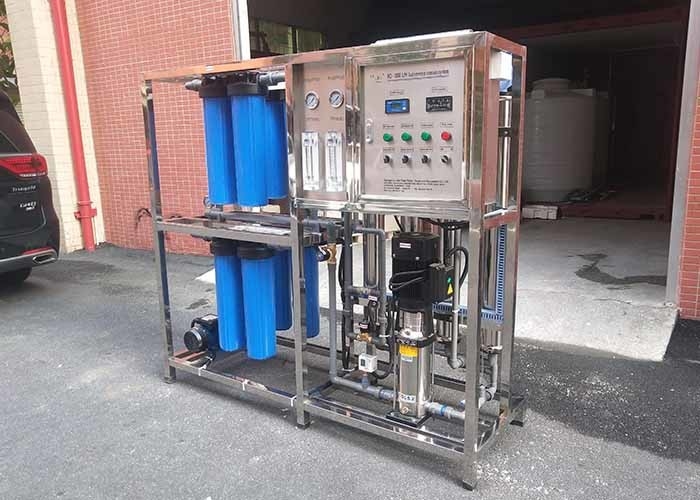

Pictures Show

Packing & delivery

Delivery time: 1-7working days for small machine, 15-45workingdays for big machine(depand on raw materials stocking)

Export standard packing: carton/wooden case(plywood), no need to fumigate, suitable for shipping.

We have stocking all year round such as 500LPH, 1000LPH reverse osmosis system. If you want now then take it now^^

Guidelines for getting a proper quotation:

1.Tell us the raw water/source of water
Provide water analysis report if possible

2.Required production capacity( e.g.: 10000liters per hour…yeah?)

3.What's the pure water used for( direct drinking, domestic use or industrial use(pls describe^^) :)

Lets talked more details^^
