Place of Origin: | Guangzhou, China |
---|---|
Brand Name: | Kaiyuan |
Certification: | ISO9001, CE, SGS |
Model Number: | KYRO-6000LPH |
Minimum Order Quantity: | negotiation |
Price: | negotiation |
Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
Delivery Time: | 1-7working days(depand on raw materials stocking) |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | >300sets/month |
Name: | Ro Water Purifier Machine | Production Capacity: | 6000liters Per Hour |
---|---|---|---|
Recovery Rate: | 50% - 75% | Application: | Filtration |
Tank Material: | FRP/ Stainless Steel/ Carbon Steel | Other Name: | Drinking Water Treatment Systems |
Pipe Fitting: | SUS304/ U-PVC | Warranty: | 1 Year |
High Light: | Water Treatment Filter Machinery,Fully Stainless Steel RO Plant,6000liters / Hour RO Purifier Plant |

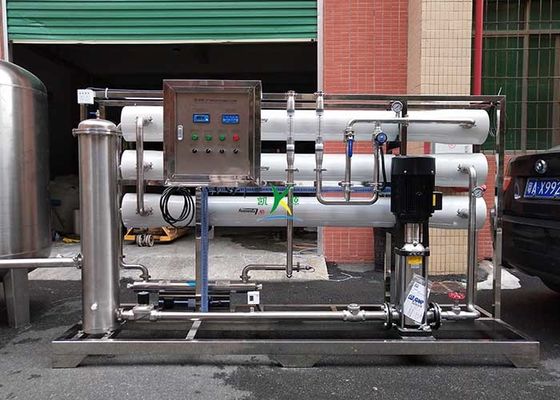

Water Treatment Filter Machinery RO Purifier Plant Price With Fully Stainless Steel
Ro Water Purifier MachineDescription
Ro Water Purifier Machine is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
A semi permeable membrane in a reverse osmosis system only allows certain things to pass through. This membrane passes water easily but also prevents many other contaminants from passing by trapping them Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals. The water in the less concentrated solution tries to dilute the more concentrated solution.Water will pass through the membrane from the lower concentration side to the greater concentration side.The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.
Ro Water Purifier Machine Details
Capacity |
6000lph |
Water recovery |
more than 50% |
Function |
Producing Fresh Water |
Type |
Pure Water Treatment System |
Application |
Filtration |
Material |
FRP+PVC/stainless teel |
Usage |
Pure Water Process |
Voltage |
110V / 220V / 380V |
Desalting rate |
more than 97% |
Membrane |
USA Filmtec DOW |
Ro Water Purifier Machine Processing
Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point
First stage pretreatment.(Sand filter) |
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. |
Second stage pretreatment (Carbon filter) |
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. |
Third stage pretreatment (Resin softener) |
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red. |
Fourth stage pretreatment (Micron filter) |
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. |
RO system |
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level. |
Ro Water Purifier Machine Advantage
1, Adopts imported RO membrane from America, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on. |
2,No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost. |
3,Equipped with pretreatment system, such as active carbon absorption filter and PP sediment filter. |
4,304 stainless steel rack and pipe accessories connection. |
5, Equipped with auto pressure protection system and on -line monitor. |
6, Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional) |
7,The lifespan of the whole system is long, operation simple, the applicability is strong. |
8,capacity: from 250L/H to 500,000L/H the filter cylinder for water filters |
Ro Water Purifier Machine Details
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
