Home > Products> RO Water Treatment System> Industrial Water Purification System Ultra Pure Water 15 18 Mohm Reverse Osmosis Plant EDI Module System

Industrial Water Purification System Ultra Pure Water 15 18 Mohm Reverse Osmosis Plant EDI Module System

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-1000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>100sets/month

Get Best Price Contact Now

Detail Information

Item Name:	RO Water System 1000LPH	Production Capacity:	1000liters Per Hour
Recovery Rate:	50% - 75%	Electrical Power:	110V - 415V 50Hz Or 60Hz
Tank Material:	FRP/ Stainless Steel/ Carbon Steel	RO Rack Size:	19106201850MM
Pre-treatment Tank Size:	Φ350 × 1400MM	Warranty:	1 Year
High Light:	Industrial Water Purification System , Ultra Pure Water RO Plant , 18 Mohm RO Water Treatment System

Product Description

Industrial Water Purification System Ultra Pure Water 15 18 Mohm Machine Reverse Osmosis Plant EDI Module System

1. Product Description

EDI (Electrodeionization)is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.

RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns can pass through the RO membrane.

2. Product Parameter

KYRO-1000LPH RO Water Treatment System:

Parameters of 1000LPH RO Water Purifier
Product Name	Material	Brand	Usage
Raw Water Pump	SUS-304	CNP	Provide needed pressure for every pre-treatment filter
Sand Filter	SUS-304	China	Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter	SUS-304	China	Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water Softener (one stand-by)	SUS-304	China	Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter	SUS-304	China	Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump	SUS-304	CNP	Provide needed pressure for RO system
RO Membrane	LCLE-4040	USA,Dupont	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
EDI System	SUS-304	China	EDI, electrodeionization. The equipment producing high quality ultra-pure water by mixed technology of electro osmosis and ion exchange, no need of acid and alkali chemicals.
UV Sterilizer /Ozone generator	23W/3G	China	Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water

3. System Advantages

√. Main part (membrane) of reverse osmosis system is imported from USA.

√. Auto stop when no water and full water.

√. Auto controller, RO membrane auto flush to protect membrane.

√. Auto start when pure water tank have no water.

√. Low pressure protection switch to protect high pressure pump when there is no raw water.

√. High efficient and low noise high pressure pump.

√. Product water conductivity meter to monitor product water quality all the time.

√. Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.

√. Inlet water solenoid valve to stop water when machine is stop.

4. Optional Components

A. Regulating wheels	B. PC Touch Screen
C. Two-stage RO system	D. PH adjustment
E. CIP cleaning system	F. Auto or manual control valve
G. U-PVC or stainless steel pipe	H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener	J. PE or stainless steel raw/pure water tank

5. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + (1&2)high pressure pump + (1&2)ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

Some parts function

1	booster pump-- provide the pressure to quartz sand filter/active carbon filter
2	Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3	Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4	Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5	Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6	High pressure pump-- Provide the high pressure to RO membrane
7	RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8	UV sterilizer or ozone generator--- kill bacteria

6. Pictures Show

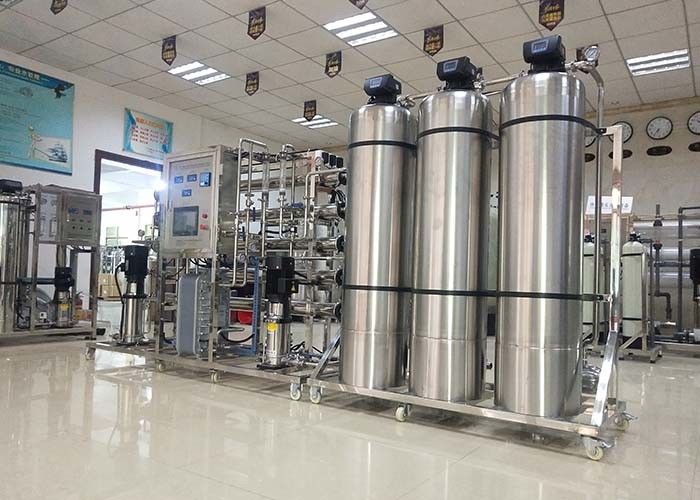

Industrial Water Purification System Ultra Pure Water 15 18 Mohm Reverse Osmosis Plant EDI Module System 1

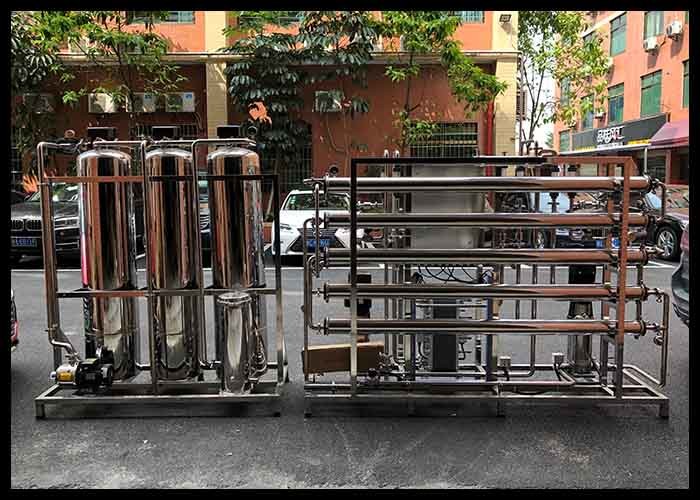

Industrial Water Purification System Ultra Pure Water 15 18 Mohm Reverse Osmosis Plant EDI Module System 2

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
