4000LPH Planta Purificadora De Agua Purificador De Agua Industrial Maquina Purificadora De Filtro De Agua Planta De
4000LPH Water Purification Plant Industrial Water Purifier Water Filter Purification Machine Plant

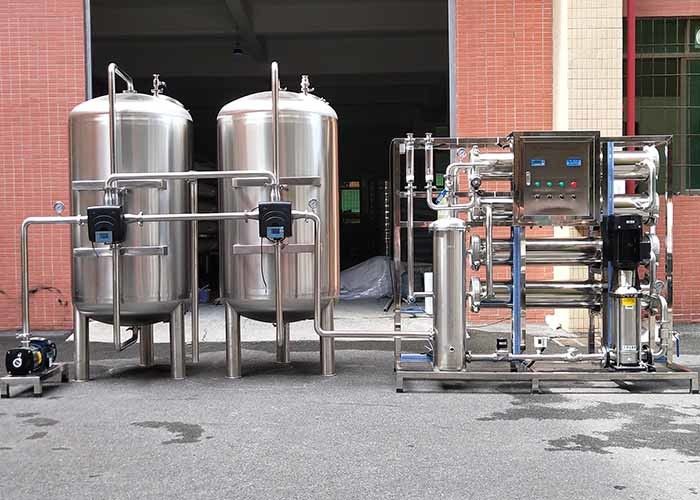

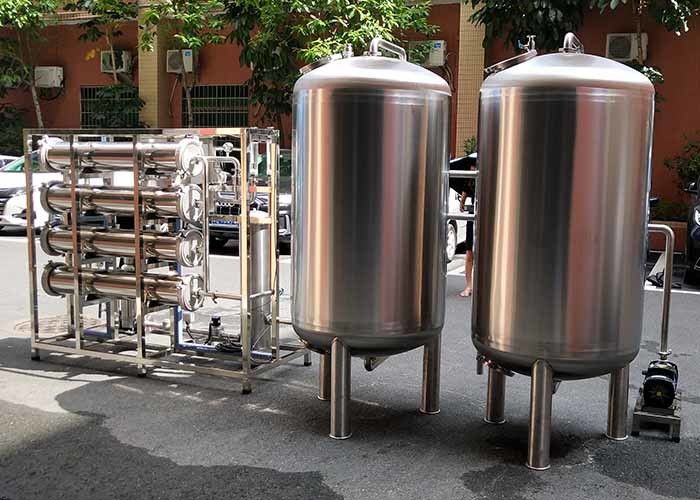

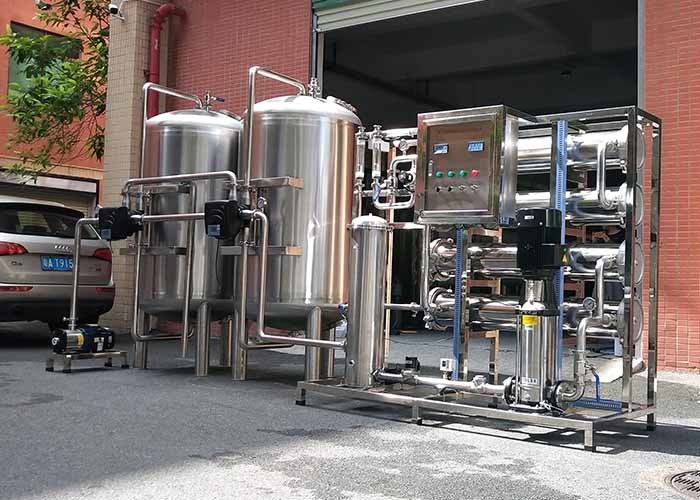

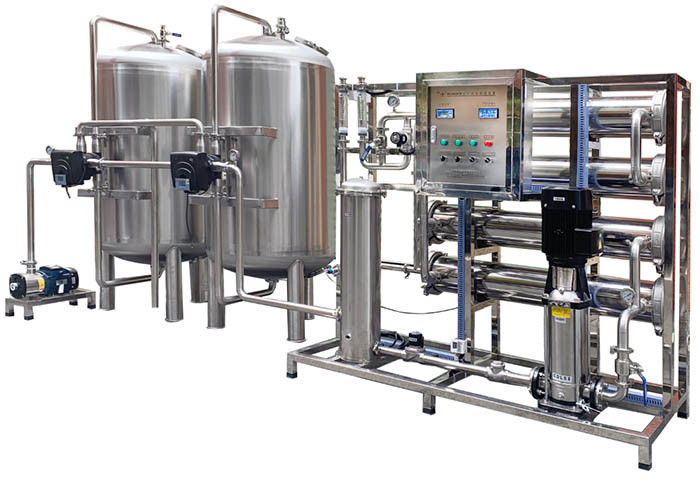

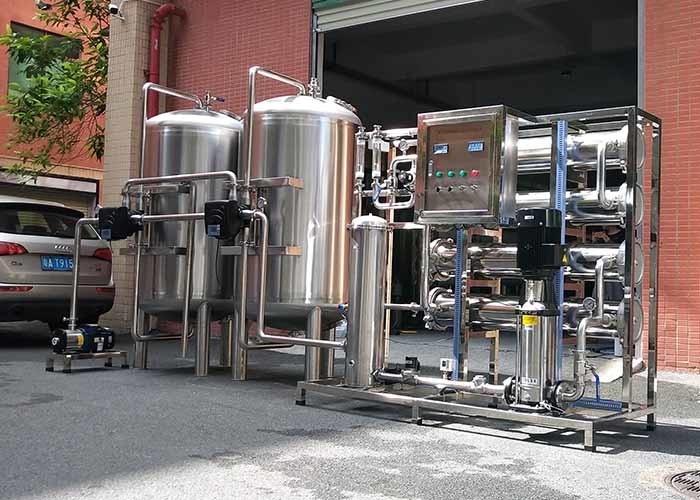

RO Water Treatment System Description
RO Water Treatment System is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
1.A semi permeable membrane in a reverse osmosis system only allows certain things to pass through.
2.This membrane passes water easily but also prevents many other contaminants from passing by trapping them.
3.Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals.
4.The water in the less concentrated solution tries to dilute the more concentrated solution.
5.Water will pass through the membrane from the lower concentration side to the greater concentration side.
6.The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.
RO Water Treatment System Details
Parameters of 4TPH RO Water Purifier
|
|
|
|
|
|
|
|
|
|
Provide needed pressure for every pre-treatment filter
|
|
|
|
|
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
|
|
|
|
|
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
|
|
|
|
|
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
|
|
|
|
|
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
|
|
|
|
|
Provide needed pressure for RO system
|
|
|
|
|
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
|
UV Sterilizer /Ozone generator
|
|
|
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
|
RO Water Treatment System Application
1. Dairy, Fruit Juice, Vegetable Juice And Other Clear, Concentrated.
2. Animals And Plants (Aloe Vera, Mangosteen, Tea, Etc.) Effective Ingredients Extraction.
3. Soybean Protein, Oligosaccharides, Isoflavones And Other Extraction, Concentration.
4. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.
5. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.
6. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.
7. Fluorescent Whitening Agent Desalination, Concentration.
RO Water Treatment System Optional Components
Ozone Generator
Two-stage RO system
Regulating wheels
Dosing system
Automatic cleaning system
PE,stainless steel or FRP water tank
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
