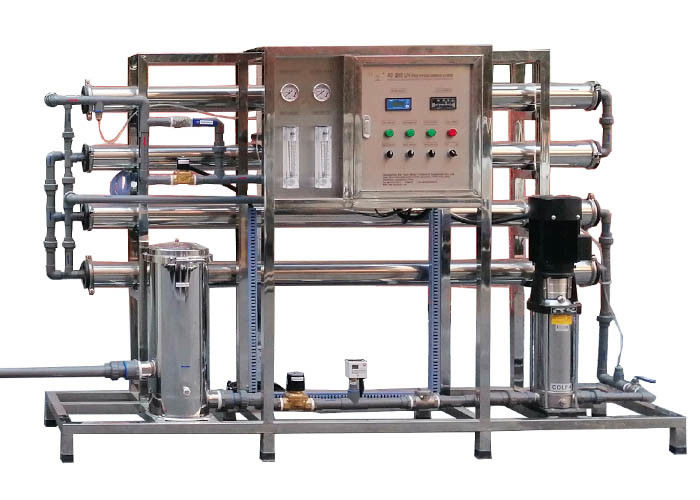

CE Approval Commercial Reverse Osmosis System Rain Water Desalination Plant Industrial RO Purification Filter Filtration Machine
RO Water Treatment System Description
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water.
Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain.
Reverse osmosis is capable of removing 97-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.
RO Water Treatment System Details
RO Water Treatment System Performance
⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.
RO Water Treatment System Consumables
RO Water Treatment System Processing
- STEP 1: AG Pre-Filtration – cartridge type, removes particulate matter down to 20 microns.
- STEP 2: Carbon – an activated carbon cartridge filter that removes chlorine, chloramine, solvents, lead, insecticides, gasses, and other harmful contaminants. Works as a water softener, without the use of salt and drawing hardness particles together and crystallizing them. Includes an automatic backwashing system.
- STEP 3: 5 Micron Pre-Filter – removes particles, sediments, and algae.
- STEP 4: R.O. Pump – high pressure, stainless steel pump to boot water pressure to 160 lbs. for maximum membrane efficiency.
- STEP 5: Reverse Osmosis Membrane – water is forced through a semi permeable, .0002 micron membrane, allowing only pure water molecules to pass.
- STEP 6: Pressure Tank – 32 gallon pressure tank assures a constant flow of water to the filler and prolongs pump life.
- STEP 7: Post Carbon Filtration – water travels through a 4.5in x 20in coconut shell carbon block filter, polishing it for an exceptionally smooth taste.
- STEP 8: Ultraviolet Sterilizer – stainless steel sterilizer eliminates up to 99.9% of all bacteria.
- STEP 9: Optional – ozone may be added to water storage tanks to prevent future bacterial growth.
Some parts function:
1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...
RO Water Treatment System Show
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
