Hygienic RO Machine Water Treatment Filter Plant RO System SUS

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-6000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>100sets/month

Get Best Price Contact Now

Detail Information

Item Name:	RO Water System 6000LPH	Production Capacity:	6000liters Per Hour
Recovery Rate:	50% - 75%	Electrical Power:	110V - 415V 50Hz Or 60Hz
Tank Material:	FRP/ Stainless Steel/ Carbon Steel	RO Rack Size:	Around 15CBM
Pre-treatment Tank Size:	Φ900 × 1900MM	Warranty:	1 Year
High Light:	6000LPH Hygienic RO Machine , SUS Water Treatment Filter Plant , RO System Water Treatment Plant

Product Description

Hygienic Grade RO Machine Products Water Treatment Filter Plant Reverse Osmosis System Drinking Water Purification SUS

1. Product Description

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.

SUS-304 Features :

1--Hygienic /Clean / Smooth / Beauty / Food grade.

2--Welding technology : Single-sided welding double-sided forming,which make inside pipes elbows are same and smoth.

2. Product Parameter

KYRO-6000LPH RO Water Treatment System:

Parameters of 6000LPH RO Water Purifier
Product Name	Material	Brand	Usage
Raw Water Pump	SUS-304	CNP	Provide needed pressure for every pre-treatment filter
Sand Filter	SUS-304	China	Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter	SUS-304	China	Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water Softener (one stand-by)	SUS-304	China	Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter	SUS-304	China	Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump	SUS-304	CNP	Provide needed pressure for RO system
RO Membrane	BW30-400IG	USA,Dupont	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator	23W/3G	China	Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
Option Item	Anti-dosing system / CIP system / Chlorination system

3. System Advantages

Powder coated steel frame—Aluminum diamond plate base
Pre-wired electrical panel—Circuit breaker
Automatic flush
LIGHTS—Power on; system running; low pressure with auto cut-off
Stainless Steel RO Booster Pump
Dual level R.O. controls
Auto-backwash—On pre and post treatment—stainless steel jackets
Pre and post filter gauges
Waste and recycle valves
Product and waste flow meters
Pressure pump—20 G.P.M.
Ultraviolet sterilization light—25 G.P.M.
All components and materials are either NSF/FDA/UL/ETL approved
Stainless steel membrane housings with TFC membranes

4. Optional Components

A. Regulating wheels	B. PC Touch Screen
C. Two-stage RO system	D. PH adjustment
E. CIP cleaning system	F. Auto or manual control valve
G. U-PVC or stainless steel pipe	H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener	J. PE or stainless steel raw/pure water tank

5. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

6. Pictures Show

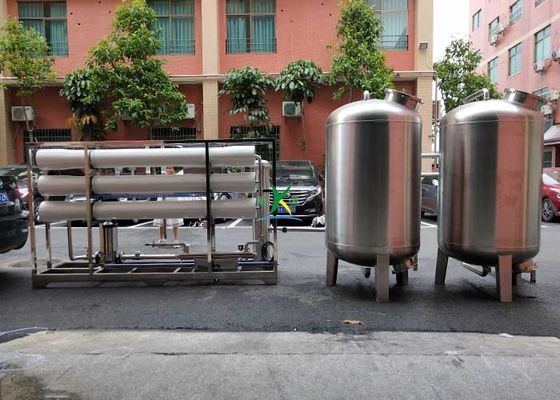

Hygienic RO Machine Water Treatment Filter Plant RO System SUS 1

Hygienic RO Machine Water Treatment Filter Plant RO System SUS 2

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
