Planta De Tratamiento De Agua Maquina Purificadora De Agua Osmosis Inversa Filtrador De Agua Para Venta 2000 Gpd
Water Treatment Plant Water Purification Machine Reverse Osmosis Water Filter For Sale 2000 Gpd
RO Water Treatment System Description
RO Water Treatment System is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
RO Water Treatment System Details
Ro system technical parameters(for raw/well feed water TDS max 20000ppm)
|
|
Item Name
|
Brand
|
Material
|
Function
|
|
Raw Water Pump
|
CNP/Grundfos/Danfoss
|
SUS-304/316
|
Provide pressure for filters
|
|
Quartz Sand Filter
|
KaiYuan
|
FRP/ Ss-304/316
|
Filtrate sediments...
|
|
Activated Carbon Filter
|
KaiYuan
|
FRP/ Ss-304/316
|
Obsorb odor, smell, color, irons, chlorine... to make clear water
|
|
Anti-scalant chemical dosing system/Water Softener
|
SEKO
|
|
Soften water, protect RO Membranes
|
|
Security filter
|
KaiYuan
|
FRP/ Ss-304/316
|
Remove colloids larger than 5micro
|
|
High pressure pump
|
CNP/Grundfos/Danfoss
|
SUS-304/316
|
Provide pressure for Ro membranes
|
|
RO vessels &membranes
|
Domestic&DOW/Toray/Votron/Hydrau.
|
FRP/Ss-304/316
|
Remove dissolved ions,organic materia,bateria...
|
|
Solenoid valves, gauges,switch...
|
China
|
Cooper/Ss-304/316
|
To protect the machine underoperation
|
|
CIP Washing system(optional)
|
KaiYuan
|
Ss-304/ FRP/316
|
Membranes maitenance
|
|
Electronic control
|
PLC Program control system
|
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
|
|
UV/Ozone(optional)
|
USA/Dahuang
|
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)
|
|
Capacity
|
2000lph
|
Water recovery
|
more than 50%
|
|
Function
|
Producing Fresh Water
|
Type
|
Pure Water Treatment System
|
|
Application
|
Filtration
|
Material
|
FRP+PVC/stainless teel
|
|
Usage
|
Pure Water Process
|
Voltage
|
110V / 220V / 380V
|
|
Desalting rate
|
more than 97%
|
Membrane
|
USA Filmtec DOW
|
RO Water Treatment System Application
1. Dairy, Fruit Juice, Vegetable Juice And Other Clear, Concentrated.
2. Animals And Plants (Aloe Vera, Mangosteen, Tea, Etc.) Effective Ingredients Extraction.
3. Soybean Protein, Oligosaccharides, Isoflavones And Other Extraction, Concentration.
4. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.
5. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.
6. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.
7. Fluorescent Whitening Agent Desalination, Concentration.
RO Water Treatment System Optional Components
Ozone Generator
Two-stage RO system
Regulating wheels
Dosing system
Automatic cleaning system
PE,stainless steel or FRP water tank

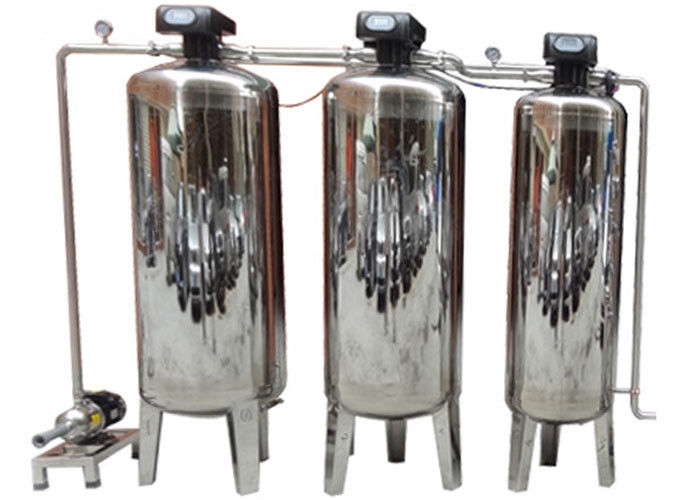

RO Water Treatment System Photos :
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
