TDS 10000 Commercial Water Purification System RO Membrane Water Filter Plant

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Treatment System Production Capacity: 500liters Per Hour
Application: Dairy , Fruit Juice Electrical Power: 220V / 380V 50Hz / 60Hz
Tank Material: FRP Control Valve: Automatic
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
High Light:

RO Membrane Water Filter Plant

,

500liters Per Hour Water Filter Plant

,

Automatic Commercial Water Purification System


Product Description

TDS 10000 Commercial Water Purification System Water Filter Plant RO Membrane Making Machine Price Reverse Osmosis





RO Water Treatment System Description



Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterial in the feed water.



RO Water Treatment System Details



Ro system technical parameters(for raw/well feed water TDS max 20000ppm)
Item Name
Brand
Material
Function
Raw Water Pump
CNP/Grundfos/Danfoss
SUS-304/316
Provide pressure for filters
Quartz Sand Filter
KaiYuan
FRP/ Ss-304/316
Filtrate sediments...
Activated Carbon Filter
KaiYuan
FRP/ Ss-304/316
Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener
SEKO

Soften water, protect RO Membranes
Security filter
KaiYuan
FRP/ Ss-304/316
Remove colloids larger than 5micro
High pressure pump
CNP/Grundfos/Danfoss
SUS-304/316
Provide pressure for Ro membranes
RO vessels &membranes
Domestic&DOW/Toray/Votron/Hydrau.
FRP/Ss-304/316
Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...
China
Cooper/Ss-304/316
To protect the machine underoperation
CIP Washing system(optional)
KaiYuan
Ss-304/ FRP/316
Membranes maitenance
Electronic control
PLC Program control system
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
UV/Ozone(optional)
USA/Dahuang
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)





Capacity

500lph

Water recovery

more than 50%

Function

Producing Fresh Water

Type

Pure Water Treatment System

Application

Filtration

Material

FRP+PVC/stainless teel

Usage

Pure Water Process

Voltage

110V / 220V / 380V

Desalting rate

more than 97%

Membrane

USA Filmtec DOW



RO Water Treatment System Application



1. Dairy, Fruit Juice, Vegetable Juice And Other Clear, Concentrated.

2. Animals And Plants (Aloe Vera, Mangosteen, Tea, Etc.) Effective Ingredients Extraction.

3. Soybean Protein, Oligosaccharides, Isoflavones And Other Extraction, Concentration.

4. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.

5. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.

6. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.

7. Fluorescent Whitening Agent Desalination, Concentration.



TDS 10000 Commercial Water Purification System RO Membrane Water Filter Plant 0



RO Water Treatment System Optional Components


Ozone Generator
Two-stage RO system
Regulating wheels
Dosing system
Automatic cleaning system
PE,stainless steel or FRP water tank

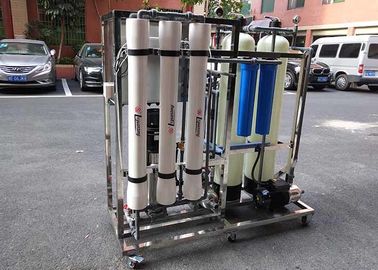

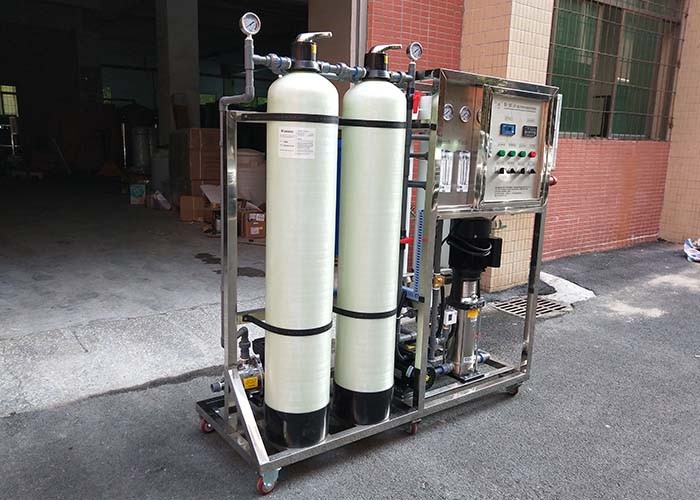

RO Water Treatment System Photos :



TDS 10000 Commercial Water Purification System RO Membrane Water Filter Plant 1



TDS 10000 Commercial Water Purification System RO Membrane Water Filter Plant 2



Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
