Water Filter Softener System Commercial Reverse Osmosis Water Purification Plant 12000 Gpd

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ro Water Purifier Machine Production Capacity: 500 Litters Per Hour
Recovery Rate: 50% - 75% Application: Filtration
Tank Material: FRP/ Stainless Steel/ Carbon Steel Other Name: Drinking Water Treatment Systems
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
High Light:

Commercial RO Water Filter Softener System


Reverse Osmosis Water Purification Plant


Water Purification Plant 12000 Gpd

Product Description

Water Filter Softener System Commercial Reverse Osmosis Water Purification Plant 12000 Gpd Water Making Machine



Ro Water Purifier MachineDescription

1. Product description of CE approved 0.5TPH commercial water filters
automatic water filter uses semi permeable spiral wound membranes to separate and remove dissolved solids,
organic, pyrogens,sub micron colloidal matter and bacteria from water. Water permeates the minute pores of
the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream
and flushed to drain. Reverse osmosis is capable of removing 9799% of total dissolved solids (TDS), 99% of
organic, including pyrogens, and 99% of all bacteria in the feed water .

2. Technological process of water purifier machine/ commercial water filters
raw water+ raw water tank+ raw water pump+ sand filter+ carbon filter+softener (optional)+ security filter+ high pressure pump+
reverse osmosis system+ pure water tank+ UV sterilizer (ozone generator) +precision filter + water supply points


Ro Water Purifier Machine Details


Ro system technical parameters(for raw/well feed water TDS max 20000ppm)
Item Name
Raw Water Pump
Provide pressure for filters
Quartz Sand Filter
FRP/ Ss-304/316
Filtrate sediments...
Activated Carbon Filter
FRP/ Ss-304/316
Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener
Soften water, protect RO Membranes
Security filter
FRP/ Ss-304/316
Remove colloids larger than 5micro
High pressure pump
Provide pressure for Ro membranes
RO vessels &membranes
Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...
To protect the machine underoperation
CIP Washing system(optional)
Ss-304/ FRP/316
Membranes maitenance
Electronic control
PLC Program control system
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)


Ro Water Purifier Machine Processing


Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point

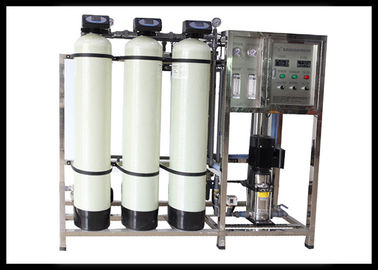

Water Filter Softener System Commercial Reverse Osmosis Water Purification Plant 12000 Gpd 0


1. Raw Water Pump-- provide the pressure to quartz sand filter/active carbon filter;

2. Quartz Sand Filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.;

3. Active Carbon Filter--Remove the color, free chloride, organic matter, harmful matter, ect.;

4. Water Softener--exchange "ions" of calcium and magnesium with the most common and easiest method;

5. Micron PP Filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um;

6. High Pressure Pump-- Provide the high pressure to RO membrane;

7. RO System-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

8 . UV Sterilizer- Kill the bacteria


Ro Water Purifier Machine Application


1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding


Ro Water Purifier Machine Details


Water Filter Softener System Commercial Reverse Osmosis Water Purification Plant 12000 Gpd 1

Water Filter Softener System Commercial Reverse Osmosis Water Purification Plant 12000 Gpd 2


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours.

Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
