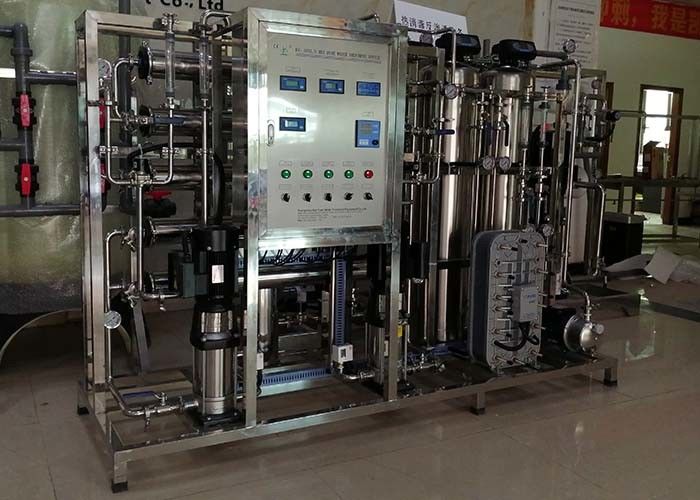

500 LPH Water Well Drilling Water Purifier Ultrapure Water Purification System
Ro Water Purifier MachineDescription
Ro Water Purifier Machine is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
EDI is also known as electrodeionization, is a new type of ultra pure water producing technology which gradually developed in the 20th Century, It is a revolutionary progress in the history of pure water production technology. This technology is skillfully combined electroosmosis technology with ion exchange technology. By means of the selectivity permeation effect on anion and cation by the anion and cation exchange membrane, and exchange effect on ion by ion exchange resin. Under direct-current electric field, realize the directed migration of ions, thus completely make water salt removing, meanwhile, hydrogen ion and hydroxyl ion generated by water electrodeionization will make the ion exchange resin regeneration, so it can produce ultrapure water continuously without acid-base chemical regeneration.
Ro Water Purifier Machine Details
|
Model
|
KYRO-500LPH 2 stage
|
|
Production capacity
|
500 Liters per hour
|
|
Total power
|
About 4.0KW
|
|
Raw water pump
|
SS304 1 set Nanfang
|
|
Quartz sand filter, carbon filter
|
Automatic control vlave, SS304
|
|
one stage Security filter
|
20″×5μm , 3cores , SS304
|
|
one stage High-pressure pump
|
SS304 1 set CNP
|
|
one stage RO membrane
|
Membrane LCLE-4040 3 PCS USA DOW
|
|
Two stage High-pressure pump
|
SS304 1 set CNP
|
|
Two stage RO membrane
|
Membrane LCLE-4040 2pcs USA DOW
|
|
Membrane housing
|
4040 5pcs , SS304
|
|
Feed water
|
less than 2000 ppm
|
|
1 stage RO system desalination rate TDS
|
less than 60 ppm
|
|
2stage RO system desalination rate TDS
|
less than 2 ppm
|
|
EDI system desalination rate TDS
|
less than 0.1 ppm
|
|
Warranty
|
One year
|
|
Payment
|
T/T or West union(30% deposit in advance,70% blance pay before delivery)
|
Ro Water Purifier Machine Processing
Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point
Ro Water Purifier Machine Advantages:
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water conductivity meter monitors water quality online continuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
RO Water Treatment Plant Optional Components :
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
Ro Water Purifier Machine Details
Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
