6TPH Water Desalination Process Plant Osmose Inverse Water Treatment

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO- 6000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Ro Water Purifier Machine Production Capacity: 6000liters Per Hour
Recovery Rate: 50% - 75% Application: Filtration
Tank Material: FRP/ Stainless Steel/ Carbon Steel Other Name: Drinking Water Treatment Systems
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
High Light:

6TPH Water Desalination Process Plant

,

Water Treatment Desalination Process Plant

,

RO Drinking Water Treatment Systems


Product Description

6TPH Planta Tratamiento Desalinizacion De Agua Systme De Purification Deau Par Osmose Inverse Tratamiento Agua Ph9 Chile

6TPH Water Desalination Treatment Plant System Osmose Inverse Water Treatment Ph9 Chile



Ro Water Purifier MachineDescription

1. The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.
2. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
3. More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.
4. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.



Ro Water Purifier Machine Processing



Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point



6TPH Water Desalination Process Plant Osmose Inverse Water Treatment 0

Model Number
KYRO-6TPH
Raw water pump
CNP pump ,SUS-304 material
Sand filter
FRP material ; Size : φ1000×1950 ; Media :1300kg
Activated carbon filter
FRP material ; Size : φ1000×1950 ; Media :550kg
Water softener filter
FRP material ; Size : φ1000×1950 ; Media :1800kg
Other systems
CIP cleaning system ; Dosing system ; Chlorine system ...
High pressure pump
CNP pump ,SUS-304 material
RO Membrane
USA Dupont
Disinfection
UV Sterilizer



Ro Water Purifier Machine Advantages:



1. Can run and produce water continuously, highly automatic


2. No need chemical to regeneration,easy operation and maintainance

3. RO system uses imported USA DOW membrane

4. Automatic switch on when lack of water,and switch off when no water or full of water

5. RO membrane auto wash and reduce the pollution speed.

6. Low-pressure switch protects high-pressure pump from damage cause by water supply stops.

7. Production water conductivity meter monitors water quality online continuosly.


8. Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

RO Water Treatment Plant Optional Components :


A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

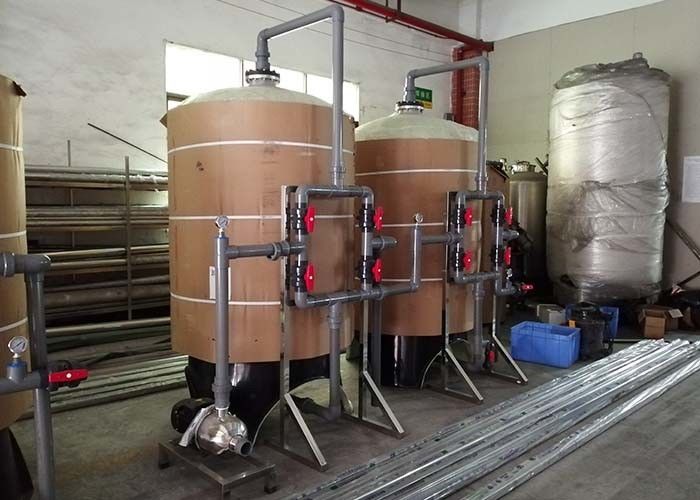

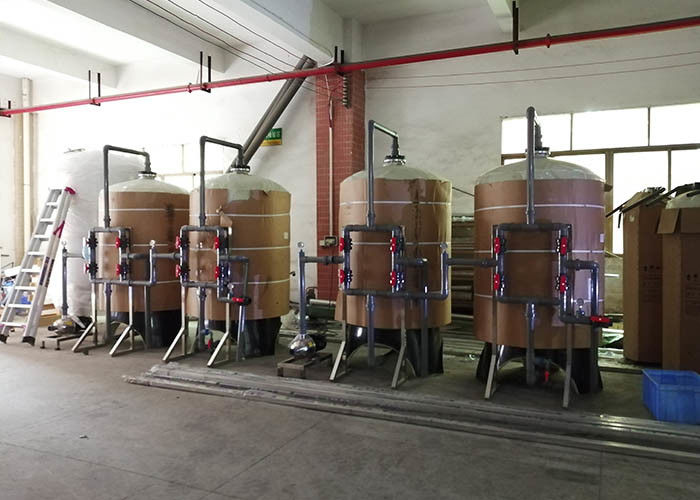

Ro Water Purifier Machine Details



6TPH Water Desalination Process Plant Osmose Inverse Water Treatment 1



6TPH Water Desalination Process Plant Osmose Inverse Water Treatment 1



Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
