5000LPH Commercial Reverse Osmosis Water Filter System Pressure Vessel Purification Process RO Treatment Plant

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-5000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Device Production Capacity: 5000liters Per Hour
Recovery Rate: 50% - 75% Application: Filtration
Tank Material: FRP/ Stainless Steel/ Carbon Steel Other Name: Drinking Water Treatment Systems
Pipe Fitting: SUS304/ U-PVC Warranty: 1 Year
High Light:

Commercial Reverse Osmosis Water Filter System


5000LPH Commercial Water Filter System


Vessel Purification Process RO Treatment Plant

Product Description

5000LPH Commercial Reverse Osmosis Water Filter System Pressure Vessel Purification Process RO Treatment Plant



Ro Water Purifier MachineDescription

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.


Water treatment system treat raw water in several procedures according to make water meet the drinking water standard.

This system uses water pressure pump to increase the water supply pressure; sand filter is used to remove Plankton, Moss, Suspension, Colloid and so on. Active carbon filter is used to remove strange smell, chlorine, chloride, organic matter and heavy mental, lower color and optimize water quality. Sodium softer is used to remove the calcium and magnesium ions in water. Micro filter is used to remove the tiny impurity. Hollow fiber Ultra filter can remove impurity, colloid, phenolic compounds, chloride, germ and all the harmful substance, meanwhile keep all beneficial minerals in water. Reverse osmosis can move all the things in the water and to make raw water to be pure water.


This water treatment system was made from SS 304(or glass fiber ). Electrical components, pump and motor are from the domestic and oversea good suppliers. With high quality and reasonable price, this system is the idea machine to match with filling system.



Ro Water Purifier Machine Details


Production capacity
6000 Liters per hour
Total power
About 7.0KW
Raw water pump
SS304 CHL8-40 1 set Nanfang
Quartz sand filter, carbon filter
φ1000×1950, FRP or SS304
Security filter
30″×5μm ,9 cores , SS304
High-pressure pump
SS304 CDLS8-16 1 set Nanfang
RO membrane
Membrane BW30-400IG 5 PCS USA DOW
Membrane housing
8040-1 ,5pcs , FRP
Quartz sand
Activated carbon
One year
T/T or West union(30% deposit in advance,70% blance pay before delivery)


Ro Water Purifier Machine Processing

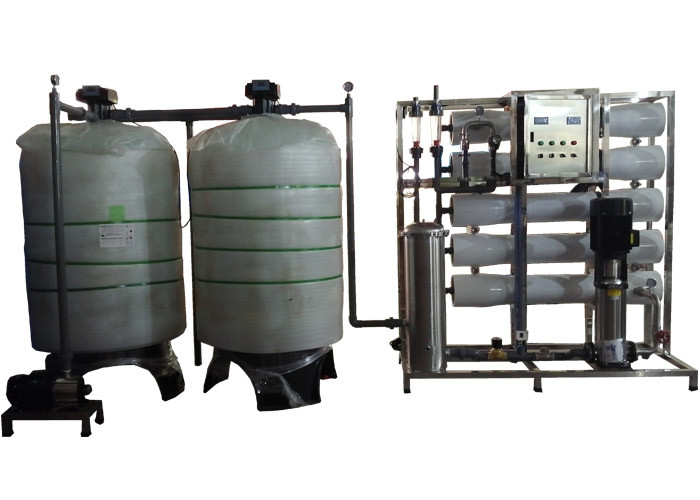

5000LPH Commercial Reverse Osmosis Water Filter System Pressure Vessel Purification Process RO Treatment Plant 0

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point


1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/ water softener

2. Sand filter-- get rid of turbidity, suspended matter

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter--prevent large particles into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.

8.UV/ozone generator-- to kill bacteria in the water


Ro Water Purifier Machine Features:


1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2. Food and beverage industry: filter for mineral water, wines and fruit juice

3. Medicine industry: filter for drug liquid, gases

4. Chemical industry: filter for organic solvent

5. Petroleum industry: filter for oil-field flooding

8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

Ro Water Purifier Machine Details


5000LPH Commercial Reverse Osmosis Water Filter System Pressure Vessel Purification Process RO Treatment Plant 1


Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
