5000LPH Automatic RO Water Treatment System / Water Purification Machine

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-5000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Product Keywords: 5000LPH Automatic RO Water Treatment System Control Valve: Automatic / Manual
Recovery Rate: 50% - 75% Voltage: 220V / 380V
Application: Drinking/ Boiler/ Painting/ Others Industry Pump: CNP, Grundfos Optional
Pipe Fitting: SUS304/ U-PVC Desalination Rate: >=97%
High Light:

Automatic RO Water Treatment System


Auto Water Purification Machine 5TLPH

Product Description

5000LPH Automatic RO Water Treatment System/ Water Purification Machine For Drinking/ Boiler/ Painting/ Others Industry


Reverse osmosis (RO) is a water purification process in which water is forced through a semi-permeable membrane that removes 90-99% of tap water impurities. The result is water that is free of minerals and other contaminants. Membrane type determines the amount of dissolved solids a unit is capable of removing.


Flow chatraw water→ raw water tank(customer supply)raw water pump→ quartz sand filter→active carbon filter→softener (optional) →security(micron) filter→high pressure pump→reverse osmosis system→UV sterilizer (ozone generator) →pure water storage tank(customer supply)→water supply point


Some parts function for your reference as below^^:


Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.

Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.

Water softener(optional): add cation resin inside, absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.

Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.

RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

UV sterilizer/Ozone generator: for killing 99% bacterial in water, be safe for drinking.

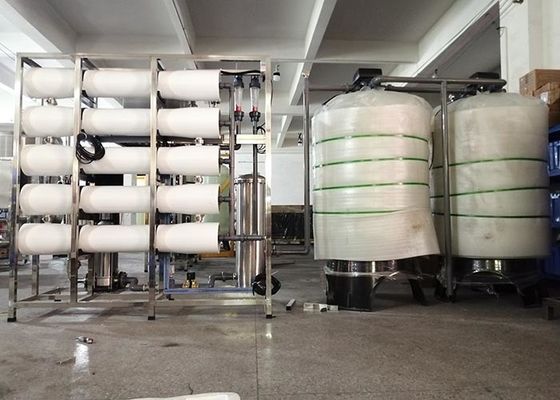

5000LPH Automatic RO Water Treatment System / Water Purification Machine 0

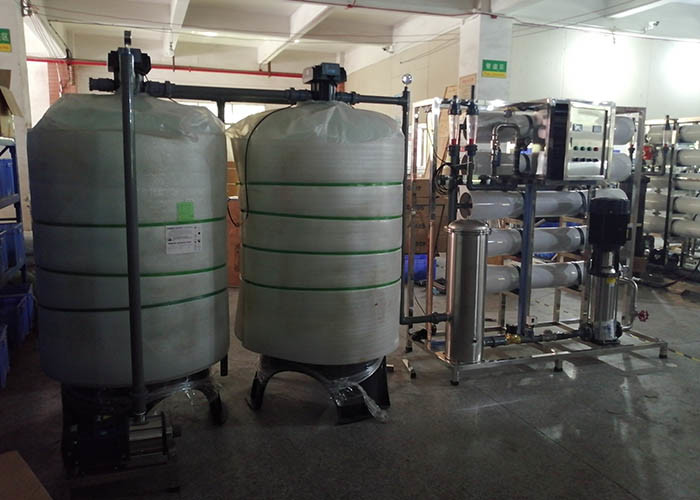

5000LPH Automatic RO Water Treatment System / Water Purification Machine 1

5000LPH Automatic RO Water Treatment System / Water Purification Machine 2


5000LPH=5TPH RO Water Purification Plant:

* Water desalination plants of different capacity ranges from 1T/D to 10000T/D
* Application Scope: TDS≤2000mg/L(design as per your raw water condition)
* Meet the "World Health Organization (WHO) Standard"
* Adapted Seawater Temperature: 5.0~39°C
* Output Water Quality: TDS≤60mg/L.
* Desalination rate:97%-99%
* Recovery Rate: 60%~80%
* Capacity: 5m3/hour


Electronics Industry Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries.
Food and Beverage field Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown.
Phamaceutical industry Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection.
Cosmetics The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.

Chemistry and

Chemical Engineering

The using of pure water in the production of chemical reagent, chemical fertilizers and paper making.
Surface Treatment: The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water.

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
