2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-2000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
RO Membrane: USA DOW(DuPont) LCLE-4040、 Vontron Tank Material: FRP/ Stainless Steel
Production Capacity: 2000liters Per Hour Control Valve: Automatic/ Manual
Recovery Rate: 50% - 75% Electrical Power: 220V/380V 50Hz/ 60Hz 1phase/3phase
RO Rack Size: 2440*650*1750MM Pre-treatment Tank Size: Φ600 × 1900MM
Pipeline Fittings: SUS304/ U-PVC Feed Water TDS: ≤2000mg/L
High Light:

2000L/H Drinking Water Treatment Machine

,

RO Drinking Water Treatment Machine


Product Description

Factory Price 2000L/H RO system Automatic Pure Drinking Water Treatment Machinery Water Flitration Filter For Industry



1. Product Description

Reverse Osmosis (RO) is a water treatment process that removes contaminants from water by using pressure to force water molecules through a semipermeable membrane. During this process, the contaminants are filtered out and flushed away, leaving clean, delicious drinking water.

RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.

2. Product Parameter

KYRO-2000LPH RO Water Treatment System:
1. Capacity: 2000L/H
2. Rated power: 3.5KW/H
3. Voltage: 220V/380V, 50Hz/60Hz, 1/3phase
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
6. Conductivity of raw water: ≤400μs
7. Conductivity of pure water: ≤10μs
8. Packing size: 2440*650*1750mm
9. Total weight: 800kg
10. Pump: Ningxiao/ CNP/ Grandfos
11. Membrane: Dow(DuPont)/ Vontron




3. Optional Components

A. Regulating wheels B. PC Touch Screen
C. Two-stage RO system D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank


4. Product Processing



Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point


Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.








5. Pictures Show

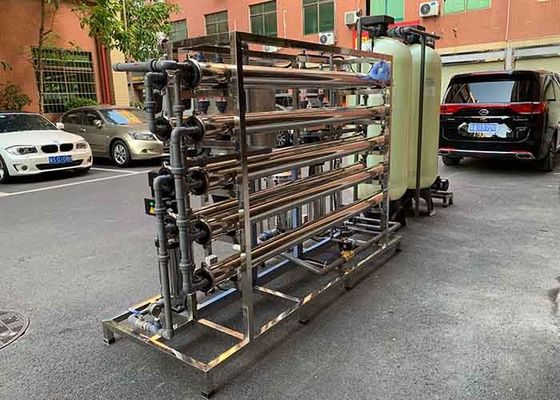

2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 0

2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 1

2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 2



6. Application



2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 3



7. Component



There are several kinds of consumables you need to replace regularly. (2000LPH)

a. Quartz sand: replaced about every 15 months. 450kg
b. Activated carbon: replaced about every 15 months. 125kg
c. PP Filter cartridge: replaced about every 1 month. 7pcs 20" x 5um
d. Ro membrane: replaced about every 2 year. 8pcs LCLE-4040

We suggest you buy 1- 2 years of PP filter cartridges together with machine.

Because these PP filter cartridges need to replace every month.
2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 4
8. Packing & Delievery



We have stock all year round such as 500LPH, 1000LPH reverse osmosis system. If you want now then take it now^^



Delivery time: 1-7working days for small machine, 15-45working days for big machine(depend on raw materials stocking)

Export standard packing: carton/wooden case(plywood), no need to fumigate, suitable for shipping.

2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 5



9. How to place order?



Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13660858152


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)

2000L/H RO System Automatic Pure Drinking Water Treatment Machine For Industry 6
