Place of Origin: | Guangzhou, China |
---|---|
Brand Name: | Kaiyuan |
Certification: | ISO9001, CE, SGS |
Model Number: | KYRO-3000LPH |
Minimum Order Quantity: | negotiation |
Price: | negotiation |
Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
Delivery Time: | 15-30working days(depand on raw materials stocking) |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | >100sets/month |
Name: | 3000L/H Mineral Water Treatment Equipment | Pretreatment: | Quartz Sand/ Activated Carbon/ Security PP Filter |
---|---|---|---|
Application: | Drinking Water Treatment | RO Membrane: | DuPont FILMTEC BW30-400IG |
Tank Material: | FRP/ Stainless Steel/ Carbon Steel | Electrical Power: | 110V/220V/380V, 50Hz/60Hz, 1phase/3phase |
Tank: | SUS-316 Storage Tank | Control Valve: | Automatic/ Manual |
Pipe Fitting: | SUS-316/ SUS304/ U-PVC | Production Capacity: | 3000L/H |
Feed Water TDS: | <2000PPM | Pump: | CNP |
High Light: | 3000L/H Mineral Water Treatment Equipment,SUS316 Mineral Water Treatment Equipment |

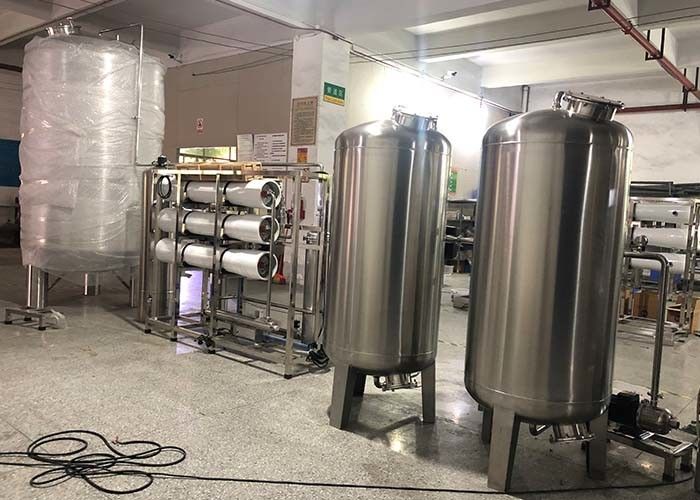

3000L/H Mineral Water Treatment Equipment /Food Industry Desalination /Pure Water Plant
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt.
The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.
Applications
Industries such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment, employ ultrafiltration in order to recycle flow or add value to later products. Blood dialysis also utilizes ultrafiltration.
|
|
|
|
|
|
|
|
|
|
|
Some parts function
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
Advantage
1. System can produce water continuously, PLC program controlled, Simple in installation and operation |
2. RO system be chosen the import USA DOW membrane |
3. Tank level control, automatic stop when the raw water tank without water or pure water tank is full |
4. RO system flushes RO membranes when it starts to work so that membrane fouling is reduced. |
5. Nanfang(CNP) high pressure pumps or Denmark Grundfos high pressure pumps are adopted. |
6. Product water quality is continuously monitored by conductivity meter. |
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
