Pacticle /Chlorine Removal 380V RO Water Purification System 10TPH With CNP Pump

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-10000LPH
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 15-30working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: Industrial RO System 10000L/H Water Treatment Plant Pretreatment: Quartz Sand/ Activated Carbon/ Security PP Filter
Application: Drinking Water Treatment RO Membrane: LCLE-4040、BW30-400
Electrical Power: 110V/220V/380V Production Capacity: 10000L/H
Tank Material: FRP/ Stainless Steel/ Carbon Steel Control Valve: Automatic
Pipe Fitting: SUS304/ U-PVC Pump: CNP
Activated Carbon: 25KG/bag Optional: PLC Touch Screen/ Regulating Wheels/ Two-stage RO System
High Light:

380V RO Water Purification System

,

LCLE-4040 RO Water Purification System

,

SUS304 RO Water Treatment System


Product Description

Pacticle /Chlorine Removal 380V RO Water Purification System 10TPH With CNP Pump



How Do Reverse Osmosis Filter Systems Work & What Do They Do?

If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms, reverse osmosis works as water is forced across a semi-permeable membrane, leaving contaminants behind that are flushed down the drain. The clean drinking water collects in a holding tank.



Why is Reverse Osmosis a Good Water Filtration Option?

We've been in the water filtration business since 2000 and have found Reverse Osmosis filtration to consistently be one of the best ways to achieve superior water for the home and business.





INFRMATION OF THE MACHINE



Mode KYRO-10TPH
Power Around 19.0KW
Voltage 380V/3ph/50Hz (customize available)
Desalination rate > 97%
Recovery rate 50%-75%
Material FRP, Stainless Steel , U-PVC
Configurations CNP pump&USA DOW membrane
Certification CE & ISO & SGS





Some parts function



1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.





Functions:

1. High operation automation degree.

1) Automatic stopping in case of sufficient water under low pressure

a) Protection of hydraulic fluctuation resistance

b) Timed flushing of front filtering materials by automatic controller

c) Automatic flushing of reverse osmosis film by IC microcomputer controller

d) Automatic monitoring of water quality

2. Small landing area, low energy consumption, free of pollution, simple process, high water quality and easy operation and maintenance

3. High removing rate, above 97% for dissolved salts, above 98% for organic substances, and above98% for colloids, bacteria and heat sources etc.





Application

Electronic industry Pre-filter for ultra pure water, chemical products and pure water
Food & beverage industry filter for mineral water, wines and fruit juice, bottled drinking water
Medicine industry filter for drug liquid
Chemical industry filter for organic solvent
Petroleum industry filter for oil-field flooding





Technical Flowchart of Reverse Osmosis Plant

Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Precise filtration → Softener→ High pressure pump →RO Membrane system→ CIP system → PLC system → Post Treatment (UV disinfection)

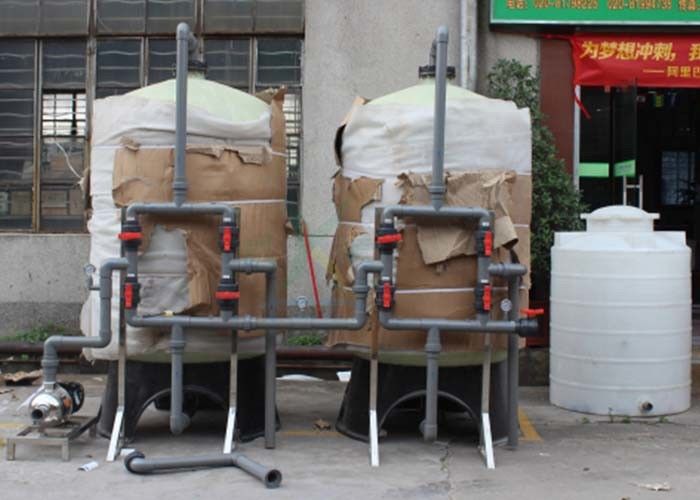

Pacticle /Chlorine Removal 380V RO Water Purification System 10TPH With CNP Pump 0


Pacticle /Chlorine Removal 380V RO Water Purification System 10TPH With CNP Pump 1





Some parts function



1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. UV Sterilizer(for direct drinking): kill bacteria , viruses , cell damage , atc...





Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
