1000L/H Reverse Osmosis Water Treatment System Automatic Purification Filter

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-1000LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month

Get Best Price Contact Now

Detail Information

Name:	RO Water Treatment System 1000LPH	Application:	Industrial/ Drinking/ Medicine/ Semiconductor
Pump:	CNP	Production Capacity:	1000L/H
Operating Temperature:	5℃ - 39℃	Recovery Rate:	50% - 75%
Control:	Remote Control	Control Valve:	Automatic / Manual
Tank Material:	FRP / Stainless Steel / Carbon Steel	Pipe Fitting:	SUS304 / SUS316L / U-PVC
High Light:	1000L/H Water Treatment System , 2.0m3/h RO Water Treatment System

Product Description

Reverse Osmosis Water Treatment System Automatic Purification Filter 1000L/H

RO Water Treatment System Introduction

Reverse osmosis systems, with the most general definition, is removal process of the anion and cation ions by an advanced filtration method which the highest technologies are used as a water treatment system. Water is forced to pass from semi-permeable membranes by applying high pressure. Water cross flows from the surface to the center of the membrane. During this transition, organic and inorganic substances, heavy metals, projects veins, bacteria etc. in the structure of the water retains by the membrane and discharges from the concentrate line. 95% to 99% Purified water can be collected to a tank through permate line. System autoflush before the production starts in order to clean the surface of the membrane.

RO Water Treatment System Consumables

There are several kinds of consumables you need to replace regularly. (for 1000LPH)

a. Quartz sand: replaced about every 15 months. 50kg/bag,150kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 50kg/set
C. PP Filter cartridge: replaced about every 1 month. 5pcs/set
e. Ro membrane: replaced about every 2 year. 4pcs/set

We suggest you buy 1- 2 years of PP filter cartridges together with machine.

Because these PP filter cartridges need to replace every month.

1---Quartz sand filter

Function:Mainly remove the mud, suspended solids and large particles in the tap water

Flow rate: 1m3/h

Size: φ350×1400mm

Design pressure: 0~7kg

Material: FRP

Filter material: Fine quartz sand

Filter material Size: 1-2.5mm and 2.5-4.5mm

2---Active carbon filter

Function:mainly remove organic substances, residual chlorine and odor in tap water

Flow rate: 1m3/h

Size: φ350×1400mm

Design pressure: 0~7kg

Material: FRP

Filter material: Fine active carbon

Filter material Size: 20-40mesh

4--Security filter:

Function: Further filtration, to avoid quartz entry into RO to break the membrane

Shell Material: SUS304

Cartridge material: Spray-fusing polypropylene 5um 20"

Cartridge Qty: 5pcs

5---RO membrane:

Function: the core part of pure water equipment, the production of high-purity water.

Parameters:

Model: USA DOW(DUPont) LCLE-4040

Flow rate: ≥2.0m3/h(25°C)

Desalination rate: ≥97%

Water Temperature: 3~39 °C

Max Working Pressure: 1.5MPa

Recovery rate : ≥50%

Operation: automatic control, automatic flush

Membrane material: aromatic polyamide composite membrane

Membrane housing material: SUS 304

6--- High-pressure pump:

Function: provide enough pressure for reverse osmosis system

Model: CNP CDLF2-15 1.5kw

Material: SUS304

Flow: 2.0m3/h

Head: 112m

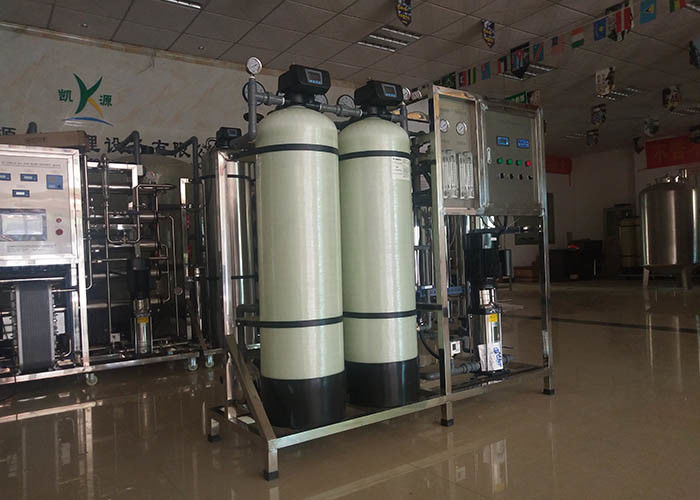

RO Water Treatment System Pictures

1000L/H Reverse Osmosis Water Treatment System Automatic Purification Filter 0

1000L/H Reverse Osmosis Water Treatment System Automatic Purification Filter 1

Packing

1000L/H Reverse Osmosis Water Treatment System Automatic Purification Filter 2

1000L/H Reverse Osmosis Water Treatment System Automatic Purification Filter 3

Shipping

1000L/H Reverse Osmosis Water Treatment System Automatic Purification Filter 4

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation

Tell us the raw water/source of water

Provide water analysis report

Required production capacity( 500 liters per hour, 1000liters per hour…)

What's the pure water used for( drinking, bottle water or industrial use…)
