20TPH RO Reverse Osmosis Drinking Water System With Stainless Steel Filter

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-20000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 20-30working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
RO Membrane: DOW BW30-400IG Production Capacity: 20TPH RO Reverse Osmosis System
Recovery Rate: 50% - 75% Electrical Power: 380V 50Hz 3phase
Tank Material: FRP/ Stainless Steel/ Carbon Steel Control Valve: Automatic/ Manual
Pipe Fitting: SUS304/ U-PVC RO Rack Size: 4000*900*1800MM
High Light:

20TPH ro water purification system


Filter ro water purification plant

Product Description

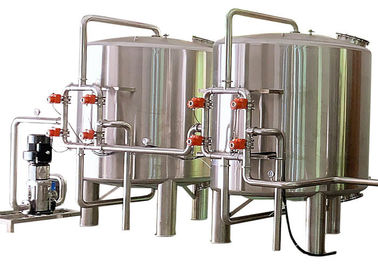

20TPH RO Reverse Osmosis Drinking Water System With Stainless Steel Filter


If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse
Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms,
reverse osmosis works as water is forced across a semi-permeable membrane, leaving contaminants behind that
are flushed down the drain. The clean drinking water collects in a holding tank.


Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.

It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment.

Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.



Parameter Optional
1. Capacity: 20000L/H PC Touch Screen
2. Rated power: 19KW/H Two-stage RO system
3. RO System Rack Size: 4000*900*1800MM PH adjustment
4. Desalting rate:>=97% CIP cleaning system
5. Water recovery rate: 50-75% UV sterilizer/Ozone Generator
6. Voltage: 380V 50Hz 3phase Dosing system(anti-scale)/Water Softener
7. Application: drinking/ industry PE or stainless steel raw/pure water tank
There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. PP Filter cartridge: replaced about every 1 month.  7pcs/set
d. Ro membrane: replaced about every 2 year.  8pcs

We suggest you buy 1- 2 years of PP filter cartridges together with machine.
Because these PP filter cartridges need to replace every month.

Raw water→ raw water pump→quartz sand filter →activated carbon filter→chemical dosing system→security filter→high pressure pump→ro system→CIP cleaning system→water supply point


1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter
2. Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4. Antiscale dosing system: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system--RO system is the main part of pure water treatment plant. The desaltation rate of RO membrane's can be as high as 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.

20TPH RO Reverse Osmosis Drinking Water System With Stainless Steel Filter 0

20TPH RO Reverse Osmosis Drinking Water System With Stainless Steel Filter 120TPH RO Reverse Osmosis Drinking Water System With Stainless Steel Filter 2

20TPH RO Reverse Osmosis Drinking Water System With Stainless Steel Filter 3
